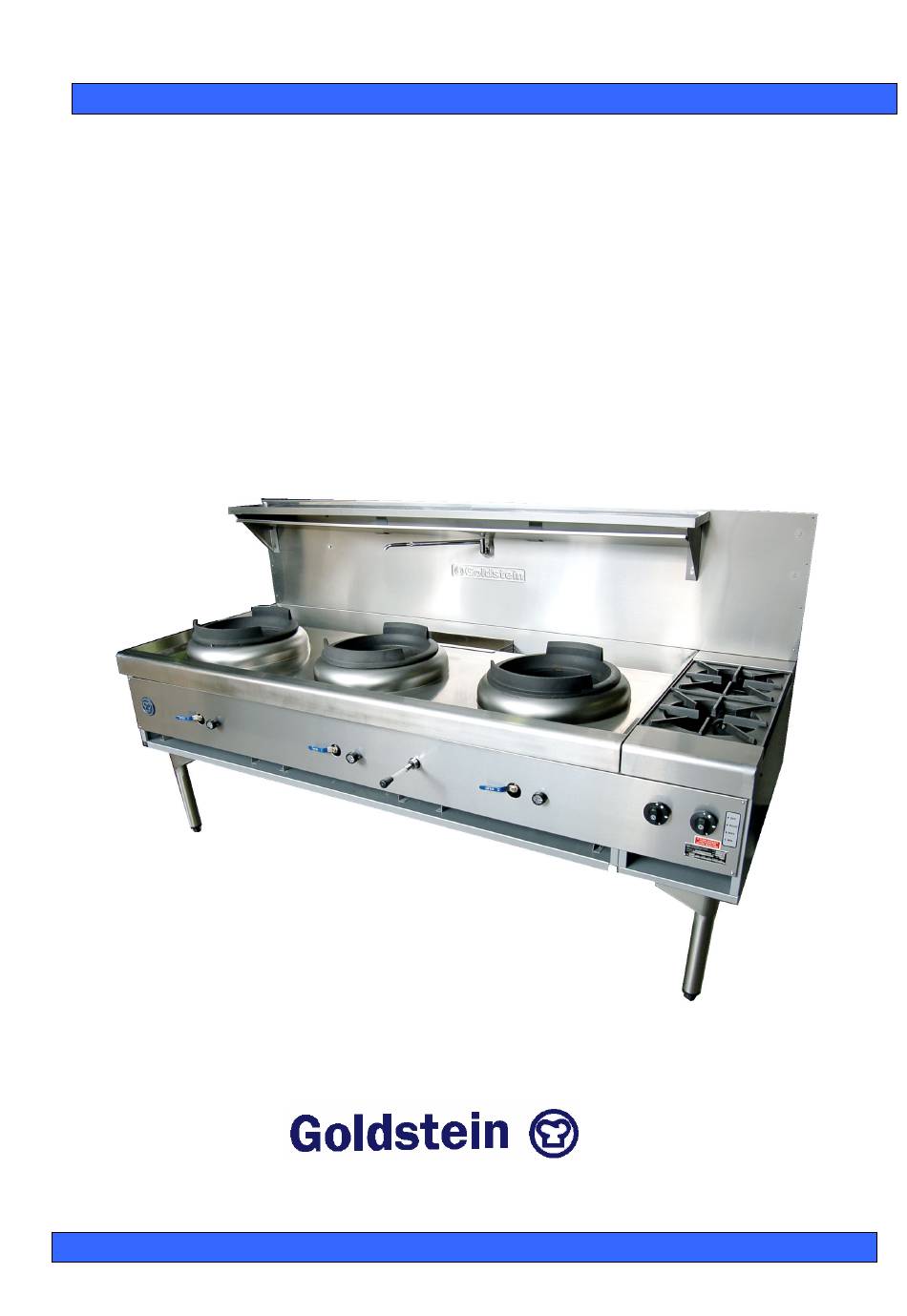

CHINESE COOKING RANGE – – – – AIR COOLED
CHINESE COOKING RANGE
CHINESE COOKING RANGE
CHINESE COOKING RANGE
INSTALLATION PROCEDURE – USER MANUAL
The Cooking Equipment Professionals
PROUDLY AUSTRALIAN MADE
SERVICE INSTRUCTION
CWA A A A ALL MODELS
CW
ALL MODELS
CW
CW
ALL MODELS
ALL MODELS
www.goldsteineswood .com.au
AIR COOLED
AIR COOLED
AIR COOLED
ESTABLISHED 1911
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for goldstein CWA Series
Summary of Contents for goldstein CWA Series
- Page 1 CHINESE COOKING RANGE – – – – AIR COOLED CHINESE COOKING RANGE AIR COOLED CHINESE COOKING RANGE CHINESE COOKING RANGE AIR COOLED AIR COOLED PROUDLY AUSTRALIAN MADE INSTALLATION PROCEDURE – USER MANUAL SERVICE INSTRUCTION CWA A A A ALL MODELS ALL MODELS ALL MODELS ALL MODELS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Page 3 INSTALLATION INSTRUCTIONS Page 4 & 5 COMMISSIONING Page 6 CLEANING/MAINTENANCE OF CHINESE WOK Page 7 CONVERSIONS INSTRUCTIONS Page 8 HOURLY GAS CONSUMPTION Page 9 OVERALL DIMENSIONS & WEIGHTS Page 9 PROBLEM SOLVING Page 10 FLOW CONTROL TAP ASSEMBLY Page 11 DRAWINGS - SPARE PARTS... -
Page 3: Introduction
J. Goldstein & Co. is a wholly owned Australian company and has been operating since 1911, building high quality products. The information in this manual will assist your installer and ensure correct location and connection. Thoroughly read the user instructions and the user maintenance sections, as understanding your products, its operation, and its cleaning and service requirements will provide you with long and satisfactory service. -
Page 4: Installation Instructions
2. INSTALLATION INSTRUCTIONS PRE-INSTALLATION OF THE WOK • Check that there is sufficient clearance between doors and passageways to move equipment into the cooking area. • Lift off wooden base. • Lay the Wok back on its back. • Place a piece of timber under the body of the Wok not on the Upstand to allow clearance for your hand. -
Page 5: Installation Instructions
2. INSTALLATION INSTRUCTIONS DRAIN CONNECTION The drain must be connected in conformity with requirements of local authority. The diameter of the drain pipe must always be greater than the drain outlet from the appliance. Drain connection is 51 mm BSP. All gas equipment MUST have an exhaust hood as per AS5601/AG601. -
Page 6: Commissioning
3. COMMISSIONING INSTRUCTIONS COMMISSIONING (FOR AUTHORISED TECHNICIANS ONLY) Note: All the appliances that leave our factory have been tested and adjusted according to the specifications for the required gas. The regulator may have to be adjusted to achieve the required gas pressure. Note: Before igniting the wok ensure that all the protective plastic on unit has been removed. -
Page 7: Cleaning/Maintenance Of Chinese Wok
4. CLEANING/MAINTENANCE OF CHINESE WOK DO NOT USE STEEL WOOL, ABRASIVE CLOTHS, CLEANSERS OR POWDERS! If it is necessary to scrape stainless steel to remove encrusted materials, soak the area with hot cloths to loosen the material, and then use a wood or nylon scraper. -
Page 8: Conversions Instructions
5. CONVERSION INSTRUCTIONS To convert from N.G. to L.P. Propane gas do the following: Replace N.G. burner injectors with L.P.G. injectors (refer to table on this page). Adjust needle valve to achieve desired pilot flame size. Disconnect regulator from gas supply line, disconnect natural gas regulator from gas line reconnect LPG regulator on line.. -
Page 9: Hourly Gas Consumption
NOMINAL HOURLY GAS CONSUMPTION AND INJECTOR SIZES BURNER Mj/hr Mj/hr Twin ring 1.80/2.85 1.05/1.75 Mongolian 1.10, 16 off 0.68, 16 off Duck Bill 1.20, 18 off 0.7, 18 of Side burner 2.35, 1 off 1.4 1 off OVERALL DIMENSIONS & WEIGHTS BURNER Height (mm) Width (mm) -
Page 10: Problem Solving
8. PROBLEM SOLVING TROUBLE SHOOTING These troubleshooting procedures must be carried out only by a Goldstein Authorised Maintenance & Repair Centre or Company specialising in restaurant cooking appliances. The problems and possible solutions given below cover those most commonly encountered. -
Page 11: Flow Control Tap Assembly
9. FLOW CONTROL TAP ASSEMBLY Fig. 1 Fig. 2 Fig. 3 Flow control tap assembly 1. You will receive the unit with the plastic nozzle removed. (Fig. 1) 2. The nozzle consists of 4 parts. 3. Place all parts inside the nozzle but for the washer which goes over the threaded area in fig.1 Screw in nozzle with internal parts and assembly is complete. -
Page 12: Drawings - Spare Parts
10. DRAWING - SPARE PARTS MODEL: CWA, CWA2, CWA3, CWA-B2, CWA-282, CWA-3B2 Air Cooled Wok-All Models May 2011... - Page 13 10. DRAWING - SPARE PARTS MODEL: CWA, CWA2, CWA3 ITEM No. CODE DESCRIPTION MTAC0019 BALL VALVE ¾” LONG ARM MKNPLCW1 KNOB TO SUIT FLAME FAILURE GIJGPCWA INJECTOR GCU00010 MONGOLIAN – GAS COCK GTC10600 THERMOCOUPLE – 600mm MTAW0002 TIMER VALVE WW-00P05 DRIP TRAY GBNCWJ01 WOK BURNER (NG)
- Page 14 10. DRAWING - SPARE PARTS MODEL: CW-B2 BOILING TOP CWW2 NEW CHINESE WOK SIDE BURNERS MODEL VARIATION(PARTS) Air Cooled Wok-All Models May 2011...
- Page 15 10. DRAWING - SPARE PARTS MODEL: CW-B2 ITEM No. CODE DESCRIPTION MKNPLN21 CONTROL KNOB GCKPF001 GASCOCK PEL N21 GBNSP001 BURNER SUPPORT BRACKET GTCI0600 THERMOCOUPLE – 600mm GTCI0450 THERMOCOUPLE – 450mm PFPTA001 ALUMINIUM FRONT PILOT TUBE PFPTA002 ALUMINIUM REAR PILOT TUBE GIJBT### INJECTOR –...
-
Page 16: Warranty
GOLDSTEIN/ESWOOD warrants their products to be free from defects in material and workmanship under “normal use and service”. This does not include normal wear and tear of parts. GOLDSTEIN/ESWOOD will repair or replace any parts, which in GOLDSTEIN/ESWOOD’s sole judgement are defective in material or workmanship, in accordance with the warranty offered. -
Page 17: Branches
12. GOLDSTEIN/ESWOOD BRANCHES For inquiries please call your nearest state branch: Head Office 211-213 Woodpark Road Smithfield New South Wales 2164 Phone: 02 9604 7333 Fax: 02 9604 5420 Victoria Queensland 47 Stubbs Rd Nautilus Complex Kensington Unit 12 Victoria 3031...
