Mikster Loggicar-E Operating Manual

Vehicle temperature and humidity recorder
Hide thumbs

Advertisement

Quick Links

Download this manual
VEHICLE TEMPERATURE
AND HUMIDITY RECORDER
Operating Manual
version 1.2
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Loggicar-E and is the answer not in the manual?

Questions and answers

Related Manuals for Mikster Loggicar-E

Summary of Contents for Mikster Loggicar-E

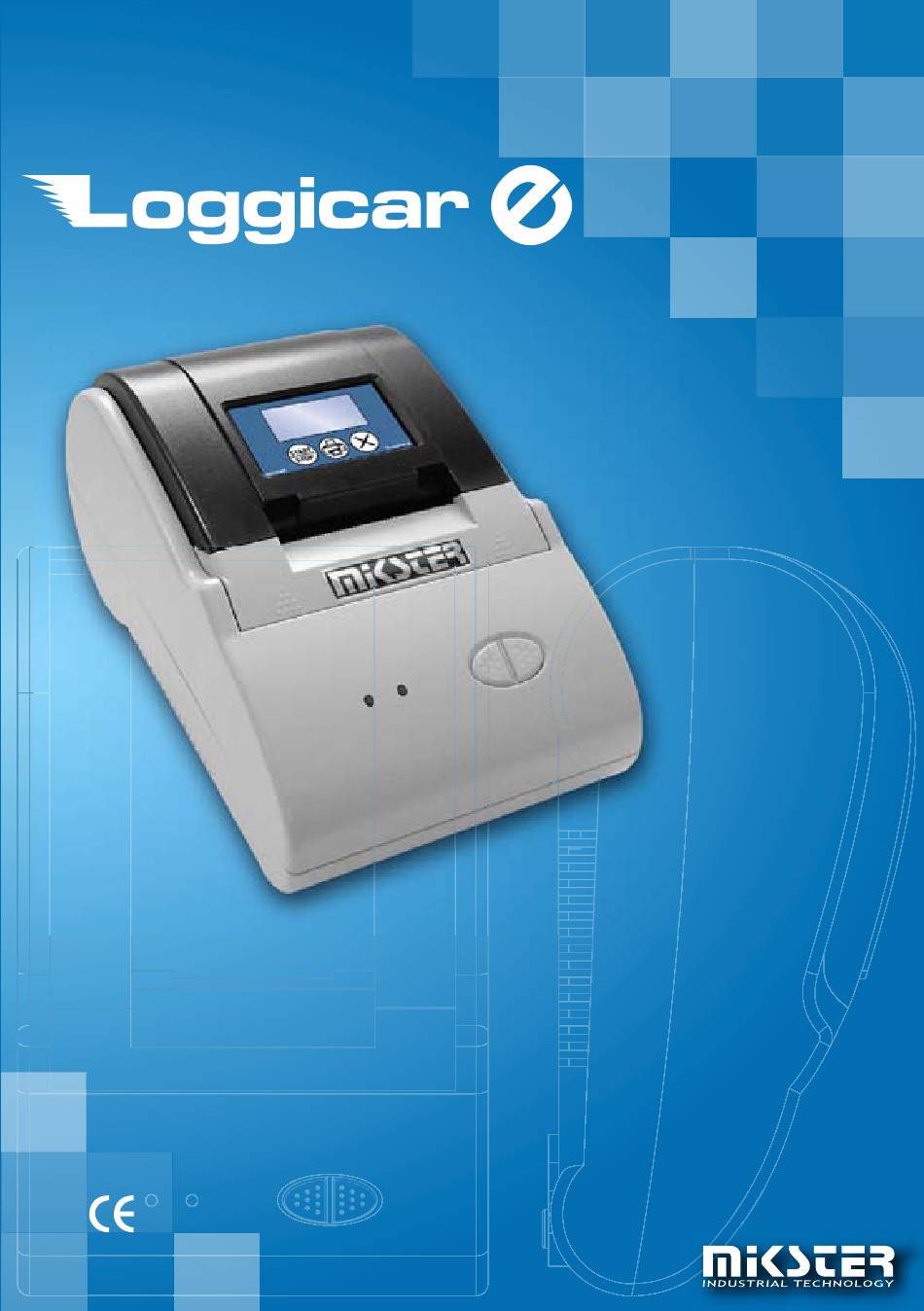

  • Page 1 VEHICLE TEMPERATURE AND HUMIDITY RECORDER Operating Manual version 1.2 ®...
  • Page 2 ® MIKSTER Sp. z o.o. 41-250 Czeladź ul. Wojkowicka 21 tel. +48 32 763 77 77 fax. +48 32 763 75 94 www.mikster.pl mikster@mikster.pl...

  • Page 3: Table Of Contents

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 Table of Contents : PURPOSE....................2 OPERATING PANEL ...................3 RECORDING THE READINGS..............3 PRINTING....................5 SERVICE FUNCTIONS AVAILABLE TO THE USER........8 DISPLAY MODE..................9 SETTING THE PRINTOUT HEADINGS...........10 SERVICE FUNCTIONS................11...

  • Page 4: Purpose

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 PURPOSE: Loggicar-e is a twin channel data recorder designed for monitoring temperature and humidity in the load compartment of the vehicle. It can operate with two temperature probes or with one temperature sensor and one humidity sensor (e.g.

  • Page 5: Operating Panel

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 OPERATING PANEL: A 4 digit LED display and 3 buttons are placed on the operating panel: START STOP After turning the device on, the following information is displayed cyclically on the LED panel: - current time;...
  • Page 6 OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 It is impossible to enter the user’s menu while the readings are being recorded. The recording process can be ended by pressing again the button. START STOP The following information will be then displayed on the LED panel:...

  • Page 7: Printing

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 PRINTING: The recorder offers an option of printing the recorded readings and the last registered reading sample in form of a short report. It also offers an option of printing a report of recordings stored in the memory of the device.
  • Page 8 OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 To cancel the selection, press the button. To confirm the selection, press the button again and the printing pro cess will start. -------------------------------- -------------------------------- -------------------------------- MIXTER TRANS TRANSPORT COMPANY REPORT FROM DELIVERY CONDITIONS Loading time: 15.05.09.13:12 Unloading time: 15.05.09 13:20...
  • Page 9 OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 To obtain a printout of the report on recordings stored in the memory of the device – select the registration No: 21. -------------------------------- -------------------------------- -------------------------------- REPORT FROM DELIVERY CONDITIONS RECORDINGS LIST Loading Unloading -------------------------------- |DD.MM.YY HH:MM|DD.MM.YY HH:MM -------------------------------- 01|08.05.09 15:49|11.05.09 07:49...

  • Page 10: Service Functions Available To The User

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 SERVICE FUNCTIONS AVAILABLE TO THE USER: Cell number Description Setting the real time clock. Press the PRINT button to go to the next parameter. Change of the recording frequency; range: 1 .. 240 minutes. Change of the access code to the service functions available to the user;...

  • Page 11: Display Mode

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 START To go into the user’s menu mode, press simultaneously the STOP and the buttons The functions specified above are available after introducing the access code. START The access code is introduced with the use of the...

  • Page 12: Setting The Printout Headings

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 SETTING THE PRINTOUT HEADINGS: Te recorder allows to set the user’s own heading (e.g. the company’s name), comprising of 2 lines, up to 32 digits in each line. After selecting the setting the printout heading mode, the user shall select the number of the letter from the list below and confirm with the button.

  • Page 13: Service Functions

    OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 SERVICE FUNCTIONS: To enter the service functions, go to the user’s menu (see chapter ”SERVICE FUNCTIONS AVAILABLE TO THE USER”) . START To scroll the function numbers, press and hold the button. STOP Press the button while scrolling the function numbers to enter the service functions menu.
  • Page 14 OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 NOTES:...
  • Page 15 OPERATING MANUAL: LOGGICAR-E, VERSION 1.2 NOTES:...
  • Page 16  The guarantee shall not cover damage incurred during the transport of the device.  The guarantee card is valid with the proof of purchase.  The service of the products manufactured by Mikster Sp z o.o. is realised by MIKSTER SERVICE S.C.; address: 41 – 250 Czeladź, ul. Wojkowicka 21,...
