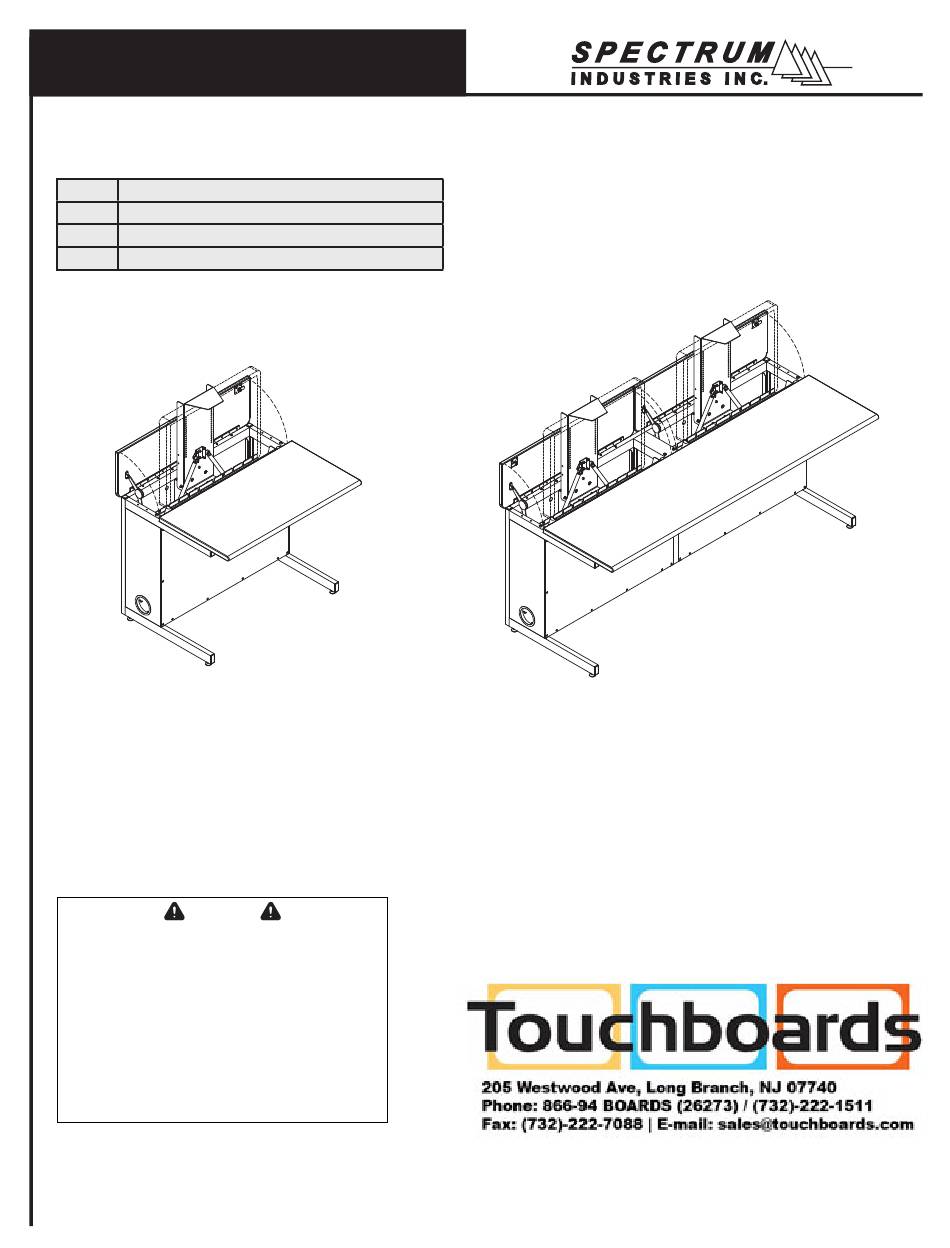

Owner's Manual
Flex Insight XMS Large Monitor Workstions
38961
36"W Flex Insight XMS workstation
38963
36"W Flex Insight XMS workstation (w/ lock)
38966
72"W Flex Insight XMS double workstation
38967
72"W Flex Insight XMS double workstation (w/ locks)
36" Flex Insight XMS
workstation
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
72" Flex Insight XMS
double workstation
0110657R5 Page 1 of 11
