- Page 1 User Manual...
-
Page 2: Table Of Contents
Contents Page EcoSmart Product Layout Body Back View Installation of Tap Diverter Valve Setting Up Your EcoSmart Alkaline Water Dispenser LED Indicator Chart Troubleshooting Ordering Information Filter A : Nano-UF Membrane Filter Filter B : Pre-Carbon Polishing Filter Filter C : KYK ®... -
Page 3: Ecosmart

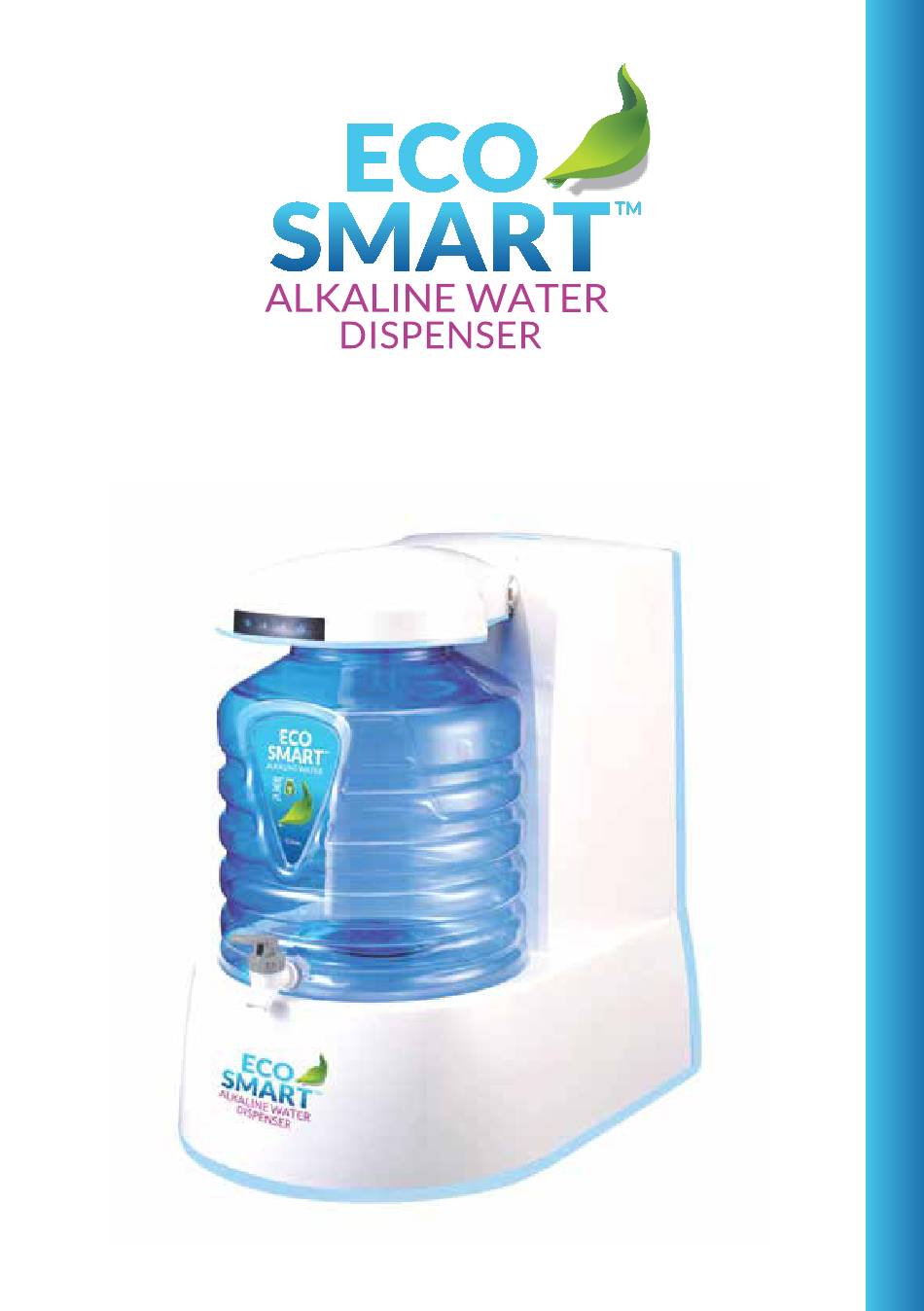

EcoSmart Product Layout Reset for Filter Change Auto Refill Sensors LED Indicator Body 10-litre SMART Bottle Base Unit... -
Page 4: Back View
EcoSmart Product Layout Back View (Premium version) Filter A / D: Nano-UF Membrane Filter Filter B: Pre-Carbon Filter Filter C: KYK ® Alkaline Catalysts Composite Filter Booster Pump Power Supply Switch Waste Water Outlet Overflow Outlet / Vent Water Inlet... -
Page 5: Installation Of Tap Diverter Valve
Installation of Tap Diverter Valve EcoSmart EcoSmart Installing Dust Filter EcoSmart Water Inlet Diverter Valve Remark: Maximum endurable temperature: 45ºC Dust Filter Maximum operating pressure: 70 psi (5kg/cm * Cutting the tubing depends on the location of your EcoSmart from the tap. -
Page 6: Setting Up Your Ecosmart
Setting Up Your EcoSmart Alkaline Water Dispenser 1. Plug in all necessary connectors to the set-up. 2. Place the 10-litre SMART Bottle onto the base unit and close the lid fully. 3. Ensure that both power and water supply have been turned on. -
Page 7: Led Indicator Chart
LED 2: Blinking “green LED” with “BUZZ alarm”, and LED 4 is GREEN. Water tank is full, but water is still running (back up level sensor is triggered). Rectify fault for system to normal operation. D. For EcoSmart Pro version (EcoSmart with Auto-Flush &... -
Page 8: Troubleshooting
• First replace the Nano-UF Filter at position 1 and check the water flow. If the problem of slow water flow persists, then proceed to replace filters at position 2 & 3 together. *For EcoSmart Pro version, the Auto-Flush UF & Nano-UF Membrane Filters (Filter D & Filter E) to be replaced together. - Page 9 Specification SPECIFICATIONS DIRECT FEED STORAGE TANK FEED Water Bottle 10 Litres, Patented Cap 1.5 LPM Water Production Rate 1.0 LPM Water Production/ Day 720 Litres 480 Litres Output Water pH 8.5 - 9.5 varies pH 8.5 - 9.5 varies Municipal water Feed Water Municipal water Feed Water Pressure...
-
Page 10: Ordering Information
Ordering Information Filter A: Nano-UF Membrane Filter Nano-UF Membrane Filter Japan Kitz* Hollow Fiber Module Japan Kitz* Hollow Fiber Module *Kitz is a trade mark of KITZ MICRO FILTER CORPORATION *Kitz is a trademark of KITZ MICRO FIBER CORPORATION Part No: EC-NUFJP-9-3-1 Filter Part No: EC-NUFJP-9-3-1 Filter Filter Size: 9 inch Filter Capacity: up to 6,000 minutes or up to 9000 litres... -
Page 11: Filter C : Kyk ® Alkaline Catalysts Composite Filter
Ordering Information Filter C: Alkaline Catalysts Composite Filter ® Alkaline Catalysts ® Korea Patented Catalysts and Japan Post Carbon Composite Filter Korea Patented Catalysts and Japan Post Carbon Part No: EC-KYKAC-9-3-1 Filter Part No: EC-NUFJP-9-3-1 Filter Filter Size: 9 inches Filter Capacity: 3,000 minutes or up to 4,500 liters Filter Size: 9 inch Filter Capacity: 3,000 minutes or up to 4,500 litres... -
Page 12: Filter D : Nano-Uf Membrane Filter
Ordering Information Filter D Nano-UF Membrane Filter Nano-UF Membrane Filter Made in Taiwan Made in Taiwan Part No: EC-NUFTW-9-3-1 Filter Part No: EC-NUFTW-9-3-1 Filter Filter Size: 9 inches Filter Size: 9 inch Filter Capacity: 6,000 minutes or up to 9,000 litres Filter Capacity: up to 6,000 minutes or up to 9,000 liters* Membrane Pore Size: ≤... -
Page 13: Replacement Filters List
Taiwan Korea /Japan Taiwan Korea Korea /Japan Taiwan Taiwan Optional* - Underground water, heavy sedimentation. Turbidity ≤20 NTU EcoSmart™ Premium Version Replacement Filters List Singapore only EC-NUFJP-9-3-1 Filter Nano-UF Membrane Filter EC-GACTW-9-3-1 Filter Nano-UF Membrane Filter EC-KPREC-9-3-1 Filter Pre-Carbon Filter EC-KYKAC-9-3-1 Filter ®... -
Page 14: 10-Litre Smart Bottle With Tap
Ordering Information 10-litre SMART Bottle with Tap Part No: EC-SB-10PET-C-TAP 10-litre SMART Bottle without Tap Part No: EC-SB-10PET-C... -
Page 15: Booster Pump
Ordering Information Booster Pump Part No: EC-DPTW-PUMP... - Page 16 are registered trademarks of H2O Life Source (SEA) Pte Ltd. EcoSmart and 天愿水 Copyright © 2008 H2O LIFE SOURCE FDA, NSF, SGS, WIPO are the registered trade-marks of the respective organization. Korea Korea Korean Conformity Food & Drug PSB Singapore...
