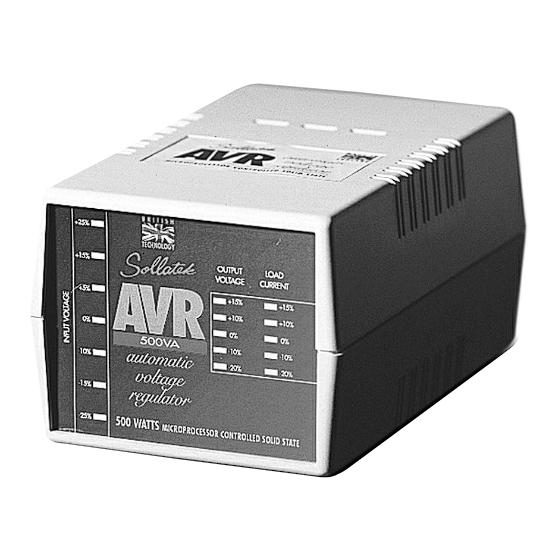

- Page 1 Automatic Voltage Regulator The AVR Range Microprocessor Controlled Regulator IMPORTANT: This manual contains important safety instructions. Keep this manual handy for reference.
-
Page 2: Table Of Contents
Keep these instructions for future reference. Safety • All equipment designed and manufactured by Sollatek (UK) Ltd complies with the latest safety codes of practice. You should still follow all safety instructions and use caution when installing and operating electrical equipment. -
Page 3: Description
Description As both high and low mains voltage can damage your electrical equipment, the Sollatek AVR is designed to monitor and correct the incoming supply continuously. If the mains voltage rises or drops, the AVR will stabilise the output to ensure that the voltage reaching your equipment remains constant at 230V + 4% (or 110V + 4% for US voltage systems), within the operating range of the unit. -
Page 4: Specifications Table
Specifications Table... -
Page 5: Technical Specifications
Technical Specifications The following table illustrates the technical specifications for the entire Sollatek AVR range. Technical Specifications 230V 115V Stabilisation Input -27% to +21% (161-281V) (81-140V) Output + 4% (221-239V) (110-120V) Frequency 50/60Hz 45-60Hz continuous Down to 30Hz for 1-2 seconds Response Time Within 0.1 second. -
Page 6: Installation
Installation WARNING: This appliance must be earthed. If your mains outlet only has a 2-pin socket, consult a qualified electrician. If you are unfamiliar with installing electrical equipment consult a qualified electrician. If a suitable electrical plug is not already fitted to the AVR unit, one should be fitted as follows: - The wire coloured BLUE must be connected to the terminal marked ‘N’... - Page 7 VOLTAGE Display showing output voltage or SELECT INPUT input voltage in real time OUTPUT SOLLATEK MICROPROCESSOR CONTROLLED AUTOMATIC VOLTAGE REGULATOR OUTPUT CURRENT Display showing load current in real time DigitalVoltage/Current display Internal terminal connection board...
-
Page 8: Operating Sequence
50% Load LED will be lit if the load takes 0.5 Amp when connected to an AVR250 (250VA or 1Amp). The Sollatek AVR will accept up to 110% load (1.1Amps on the AVR250). However prolonged overload could result in damage and should be avoided. Over 110% loading will cause the AVR trip out and switch the appliance off. -
Page 9: Troubleshooting
3) If the above doesn't solve the problem please return the unit to a Sollatek service centre. AVR blows fuses. Even though Most computers power supplies have Reduce the loading. Use a larger AVR. -
Page 10: Warranty & Returns
Guarantee Sollatek (UK) Ltd guarantee that if within 2 years of purchase this appliance fails due to faulty workmanship or materials we will repair or replace it (at our discretion) free of charge provided that: • The appliance has been correctly installed and used within the electrical range as specified on the appliance nameplate. - Page 12 Sollatek AVR instruction manual. Revision 3.0. Revised March 2003. ©Sollatek (UK) Limited 1996 All Rights Reserved. SOLLATEK and the SOLLATEK device are the trade marks of the Sollatek group of companies.
