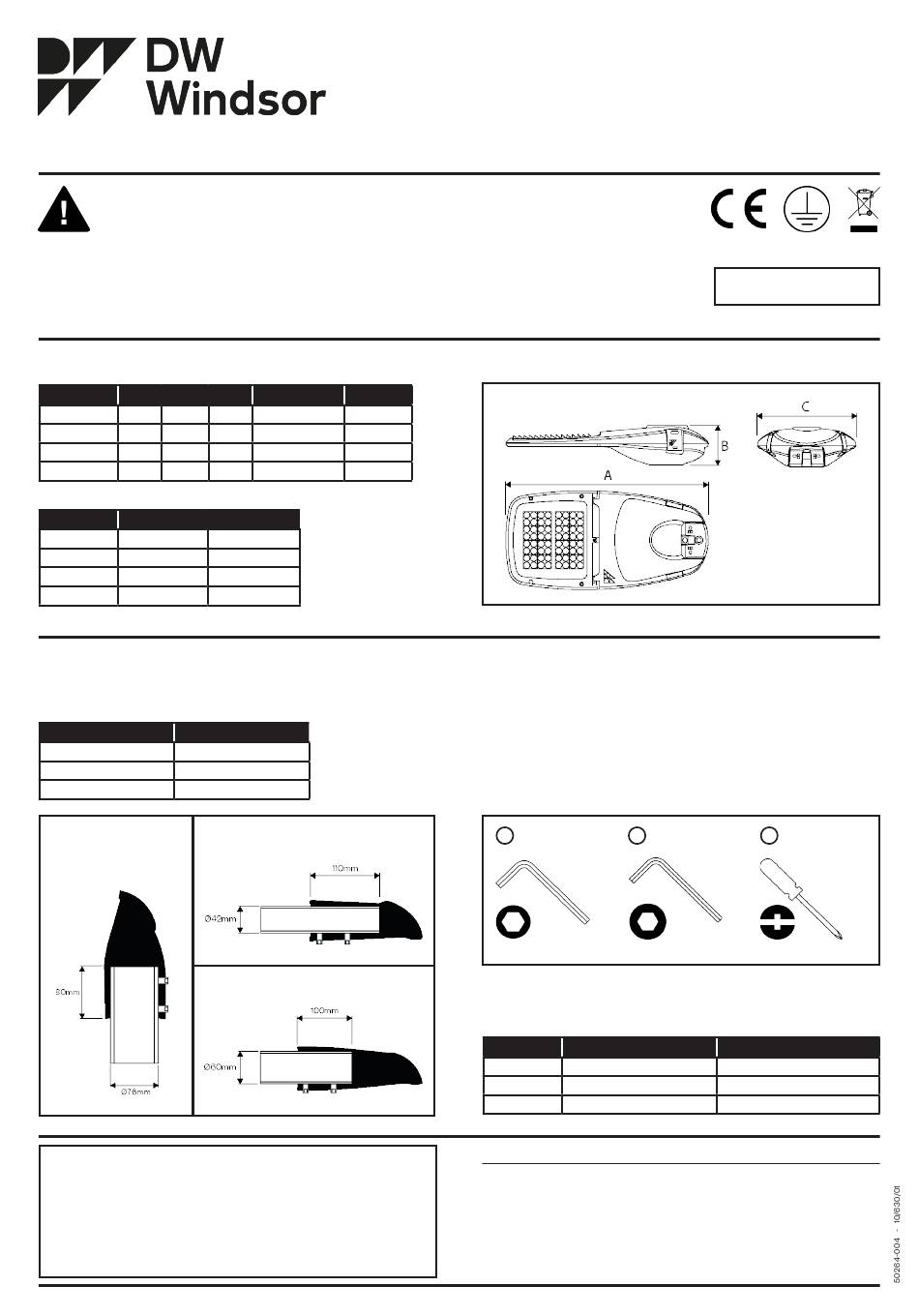

DW Windsor Kirium Pro Series Installation Instructions

Installation Instructions
IMPORTANT
• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE
USED INDOORS PLEASE CONSULT DW WINDSOR.
• THIS PRODUCT IS FITTED WITH HIGH IMPACT RESISTANT GLASS AND MAY
BE MOUNTED AT HEIGHTS ABOVE OR BELOW 5m.
Product Details
The Kirium Pro range is supplied with entry detached from the luminaire.
Dimensions (mm)
A B
Kirium Pro 1 610 140
Kirium Pro 2 720 140
Kirium Pro 3 1010 167
*Maximum weight of lantern including post top entry.
Power Ranges (Watts)
Standard
Kirium Pro 1 7-105
Kirium Pro 2 22-198
Kirium Pro 3 41-394
Column Engagement
The information shown below details the length of column engagement for
each entry option.
Entry Options Column Engagement
76mm Post Top Entry
42mm Side Entry
60mm Post Top and Side Entry
76mm Post Top 42mm Side Entry
60mm Post Top and Side Entry
Fig. 2 - Length of column engagement for each entry option.
NOTE!
• Luminaire to be positioned so that prolonged staring into the
luminaire at distances closer than shown below is not expected.
o Kirium Pro1 - 3.4m
o Kirium Pro2 - 4.8m
o Kirium Pro3 - 6.6m
• Do not stare at operating light source.
• Personnel to wear Protective Safety Glasses compliant with EN166 1F/ EN169 -
5 when commissioning or maintaining this luminaire.
•
Max. Weight (kg)* Windage m²
C
350 8.5 0.048
350 9.8 0.052
415 17.1 00.867
CLO Enabled
6-95
20-177
37-353
80mm
110mm
100mm
Fig. 2
IP66 IK08
Fig. 1 - Kirium Pro 2 (Please See Kirium Pro data sheet for all Kirium Pro technical drawings).
Fasteners Supplied
• 2x M10 Screw
• 4x Disc Spring Washer
• 2x M10 Grub Screw
• 2x Locking Nut (for Kirium Pro 2 and 3 only, when using a Side Entry)
Tools Required
Tools not supplied.
1 8mm Allen Key
Fig. 3 - Kirium Pro 2 (Please See Kirium Pro data sheet for all Kirium Pro technical drawings).
Recommended Torque
Entry Mounting Torque (Nm)
Kirium Pro 1
Kirium Pro 2
Kirium Pro 3
Kirium® Pro is a registered design.
Due to continuous product development the details within this document
are subject to change at any time, please contact us for the most up-to-date
information or visit: www.dwwindsor.com
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: +44 (0) 1992 474600 | E: info@dwwindsor.com
dwwindsor.com
Sheet 1 of 4
The Kirium Pro Range
LED Road Light
Kirium Pro 1, 2 and 3
230VAC 50Hz
Pozi or Slotted
2 5mm Allen Key 3
Screwdriver
Column Mounting Torque (Nm)
30 16
30 16
30 16
Fig. 1
Fig. 3
