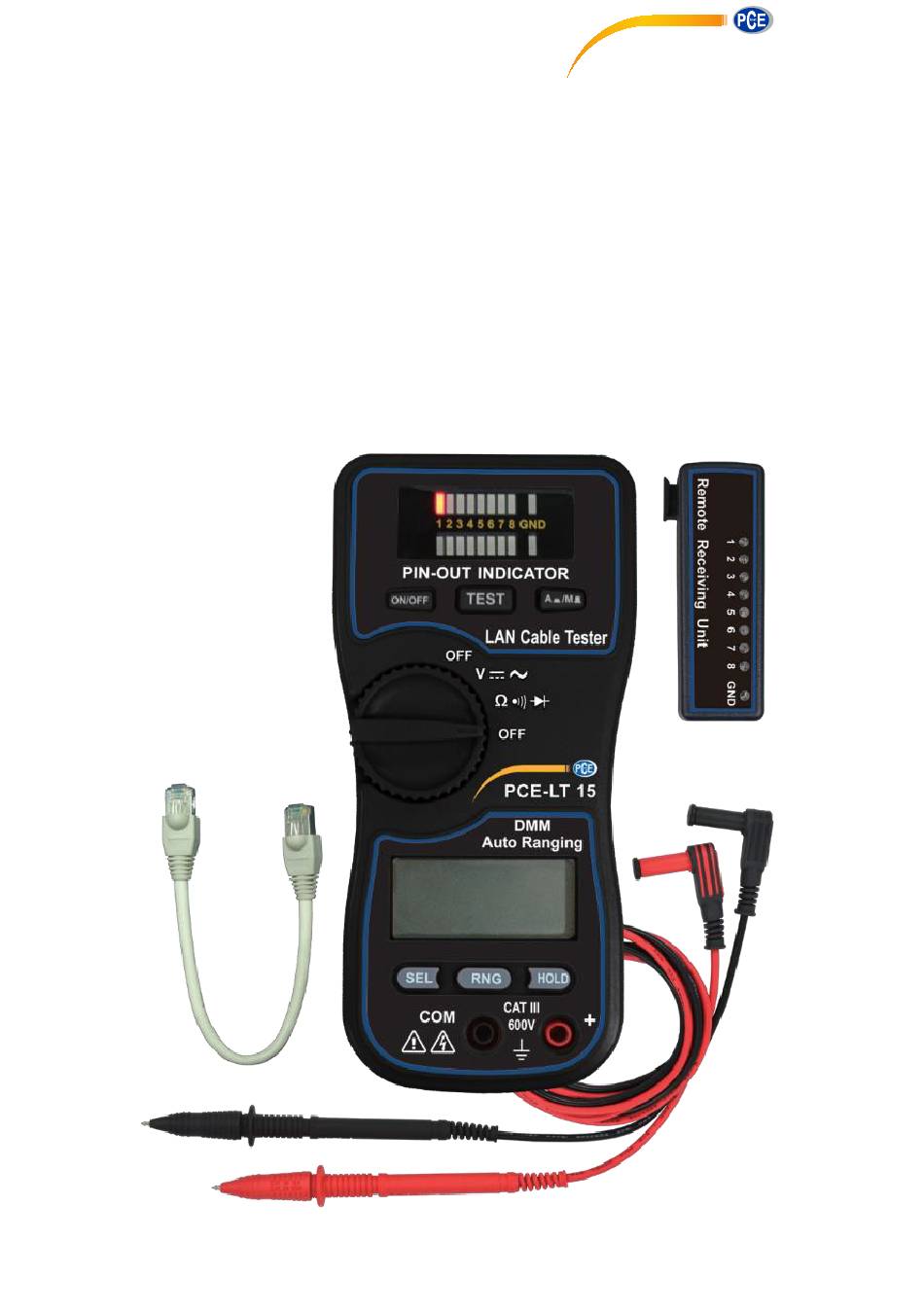

Process Calibrator
PCE-LT 15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-LT 15
Summary of Contents for PCE Instruments PCE-LT 15
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
INDEX PAGE LAN CABLE TESTER Introduction......1 Features........1 Instrument Layout....2 Operation........ 3-4 Test Result......5 DIGITAL MULTIMETER Features........6 Specification......6-7 Instrument Layout....8 Button Functions..... 9 Measurement......10-12 Maintenance......13... -
Page 3: Lan Cable Tester
LAN CABLE TESTER Introduction ● The Lan cable tester is a newly designed tool that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc. ● By comparing one transmitting end and the corresponding receiving end, the Lan cable tester also can test installed cable far away by using the remote receiving unit. -
Page 4: Instrument Layout
Instrument Layout (1) RJ45 jack of sourcing end (OUT). (2) RJ45 jack of receiving end (IN). (3) LED indicator of sourcing end. (4) LED indicator of receiving end. (5) LED indicator of sourcing end for ground wire test. (6) LED indicator of receiving end for ground wire test. (7) Power ON/OFF button. -
Page 5: Operation
Operation Loopback test ● Plug one end of the testing cable into the RJ45 jack of sourcing end (OUT) on the master unit and another end of the testing cable into the RJ45 jack of receiving end (IN) on the master unit. ●... - Page 6 Sourcing Receiving end (OUT) end (IN) Loopback ◄ Test Remote ► Test Wall ◄ Plate Patch ► Plate...
-
Page 7: Test Result
Test Result a. Continuity c. Short Pin 3 is continued Pin 5 and 6 are shorted 1 2 3 4 5 6 7 8 GND 1 2 3 4 5 6 7 8 GND b. Open d. Miss-wired Pin 4 is opened Pin 1 and 7 are miss-wired 1 2 3 4 5 6 7 8 GND 1 2 3 4 5 6 7 8 GND... -
Page 8: Digital Multimeter
DIGITAL MULTIMETER Features ● 4000-count LCD. ● Fully automatic measurement. Voltage measurement. Resistor measurement. ● Range change function. ● Select function. ● Data Hold function. ● Continuity check. ● Diode measurement. ● Low battery indication. ● Input impedance:10MΩ. Specification AC Voltage Range Resolution Accuracy... - Page 9 DC Voltage Range Resolution Accuracy 400mV 0.1mV 10mV ±(0.5%rdg + 3dgt) 400V 100mV 750V Input impedance: 10MΩ Resistance Range Resolution Accuracy 400Ω 0.1Ω 4kΩ 1Ω 40kΩ 10Ω ±(1.2%rdg + 3dgt) 400kΩ 100Ω 4MΩ 1kΩ 40MΩ 10kΩ ±(2.0%rdg + 4dgt) Overload protection 500V DC Continuity test Range Audible threshold...
-
Page 10: Instrument Layout
Instrument Layout (10) (11) (12) (14) (13) (16) (15) (10) Function rotary switch (11) LCD (12) Select button (13) Range button (14) Hold button (15) COM terminal (16) "+" terminal. -
Page 11: Button Functions
Button Functions (1) Function rotary switch The rotary switch selects the function. (2) LCD 4000-count LCD with LOW BATTERY indication. (3) Select Button For AC/DC function selection. In the resistance + continuity + diode function, press the Select button to select resistance, continuity or diode function. -
Page 12: Measurement
Measurement (1) Voltage measurement Insert the BLACK test lead to COM and the RED test lead to the "+" terminal. Switch to V function for ACV or DCV selection. Get the reading directly from the LCD. - Page 13 (2) Resistance Measurement Switch to OHM range and make sure there is no power in the circuit being measured. Insert the BLACK test lead to the COM and the RED test lead to the "+" terminal. Connect the test leads to the circuit or device under test and get the reading directly from the LCD.
-
Page 14: Measurement
(4) Diode Measurement Diode measurement mode shares the same configuration with 4000V manual voltage measurement mode. If the test circuit is open or the voltage drop between the two ports of the device (diode) under test are larger than 2V, the LCD will show "OL". The buzzer generates a 2kHz sound whenever the digit number is less than 0.25V. -
Page 15: Maintenance
Maintenance (1) Battery replacement ● Lan cable tester : When press the "ON/ OFF" button to start a test, if the LED module of pin-out indicator is too dark and can't work normally, please replace with a new 9V battery. ●...
