Control box
The control box is the brain of the system. It
performs all the programmed functions and sends
instructions to the pump and the element.

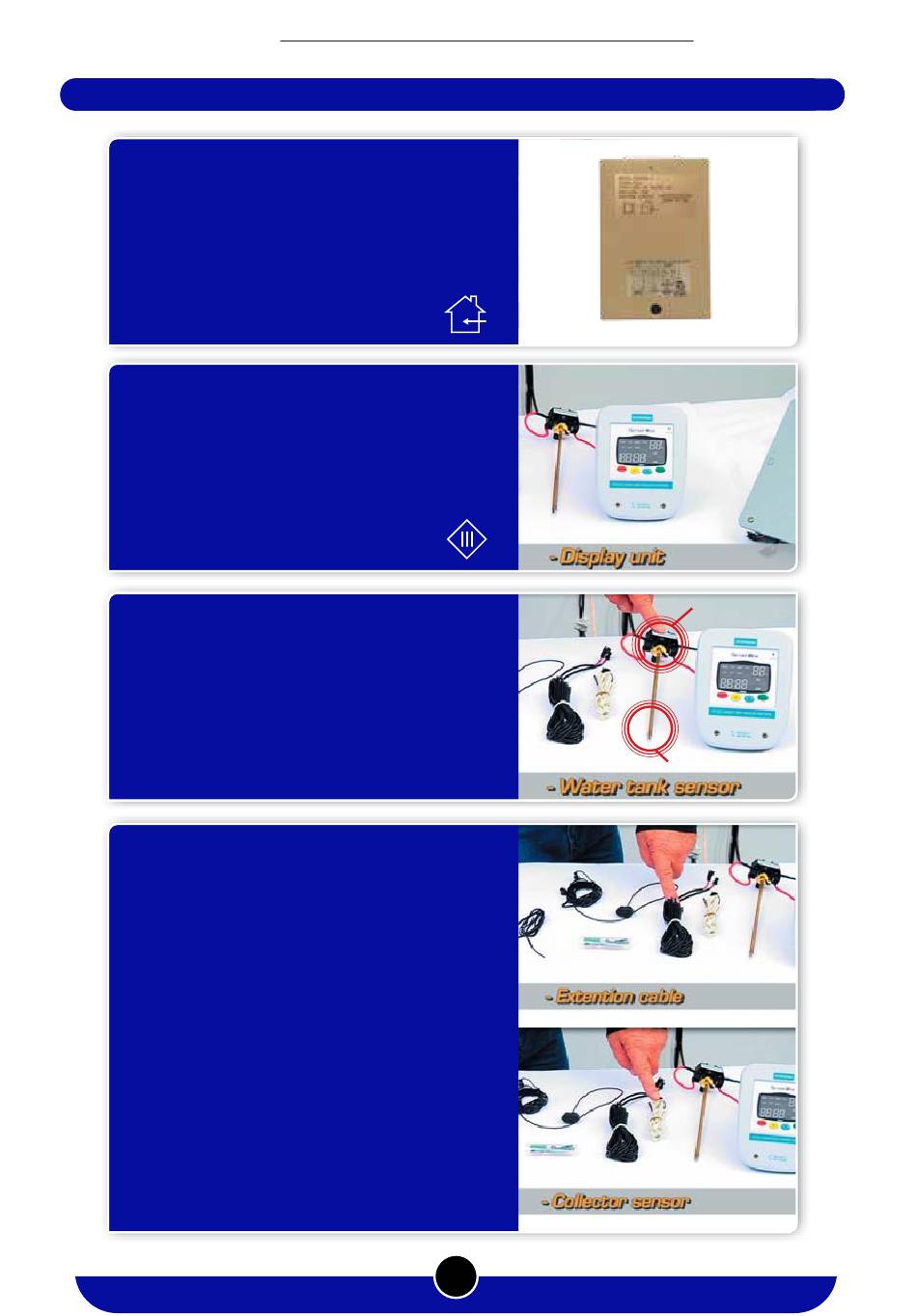

Display unit
An array of useful information can be displayed. This
includes the temperature of the water in the geyser,
the temperature in the collector, whether the pump
is running or not, when the element is on, actual
hours of electricity used, etc.
Water geyser sensor
The water geyser sensor measures the temperature
in the geyser and acts as a thermostat.
The temperature sensor for the thermostat in the
stem-type thermostat is in the last 2cm of the stem.
The sensor for the thermal cut-out is in the first
centimetre of the stem of the unit.
Collector temperature sensor and extension
cable
Also referred to as a probe, it senses the temperature
in the panel and relays the information to the
control box via the extension cable.
