MO-SYS L40 Manual And User Manual

Hide thumbs Also See for L40:

Download this manual

MO-SYS L40

MANUAL AND USER GUIDE

Need help?

Do you have a question about the L40 and is the answer not in the manual?

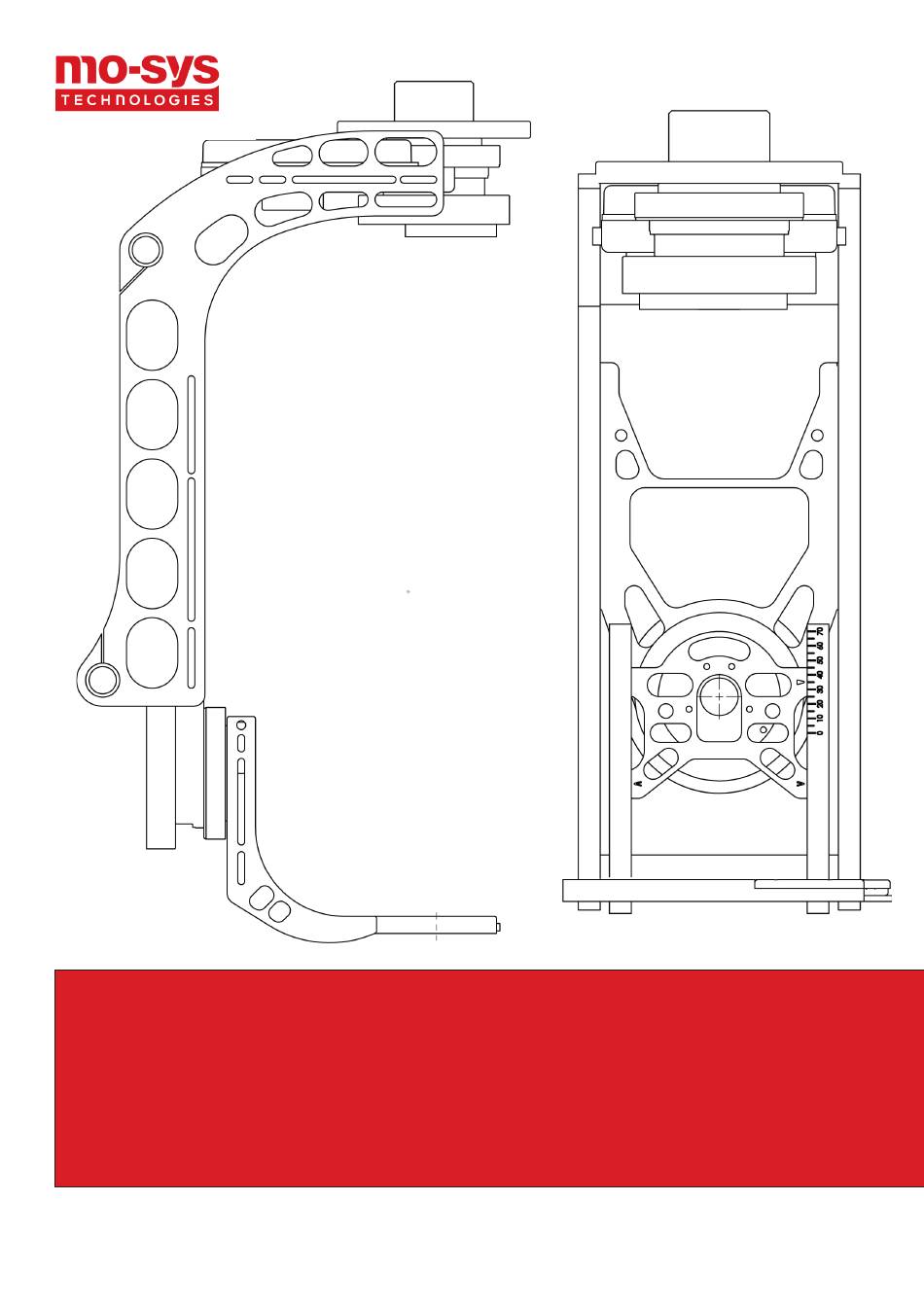

Page 1 MO-SYS L40 MANUAL AND USER GUIDE...
Page 2 MO-SYS L-40 manual and user guide Head Weight: 15kg Power supply: Nominal 24V Nominal 3A Max. Payload: 40kg Peak 10A Max movement speed: 180°/Sec. At 24V...
Page 3 MO-SYS L-40 manual and user guide...
Page 4 MO-SYS L-40 manual and user guide GYRO SETTINGS AND HEAD SENSITIVITY ADJUSTMENT When console is turned on, this is the general window. Press Gyro button for further gyro options. In this window you can adjust Pan, Tilt, Roll modes and speeds.
Page 5 MO-SYS L-40 manual and user guide To check axis sensitivity, press “Axis Sensitivity” button, where you can reduce or increase sensitivity of each axis separately. Usually when head is mounted on shock isolator or other non-rigid surface, the PAN gyro need to have it’s sensitivity reduced to prevent shaking/resonance problems.
