- Page 1 CONTROL UNIT QUA/ARIA/6 USER MANUAL To be kept by the purchaser Wood-powered products Control Unit for air heating...
- Page 2 Dear Customer, thank you for having chosen to heat and save with a Jolly Mec product. Please carefully read and keep this sheet before using the equipment. The manual provides information and suggestions necessary for correct product use. Knowing and observing these...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAP.01 PREMISES........................... 4 01.1 WARNINGS ..............................4 01.2 SYMBOLOGY ............................... 4 CHAP.02 ELECTRICAL CONNECTIONS ....................5 02.1 TERMINAL BLOCKS ............................ 5 02.2 TECHNICAL DATA ............................5 CHAP.03 USER INTERFACE ........................6 03.1 COMPONENTS ............................6 03.2 DISPLAY DESCRIPTION ..........................6 03.3 KEY FUNCTIONS ............................ -
Page 4: Chap.01 Premises
CHAP.01 PREMISES 01.1 WARNINGS • We recommend you carefully read and follow the instructions in this manual for correct use. • It should be kept with care and attentively consulted since all the warnings provide important safety instructions. • Incorrect use could cause damage and injury to people, animals or property, for which the manufacturer cannot not be held liable. • The appliance must be used only for its intended purpose. Any other use is deemed improper and therefore dangerous. • The manufacturer declines any contractual or non-contractual liability for damages caused by errors in installation or use of the appliance or failure to follow the instructions contained in this manual. • All rights on the reproduction of this technical manual are owned by Jolly Mec Caminetti S.p.A. • The descriptions and illustrations provided in the following publication are not binding. • Jolly Mec Caminetti S.p.A reserves the right to make any modifications that may be deemed appropriate. • This manual cannot be given to third parties for perusal without the written permission of Jolly Mec Caminetti S.p.A. • Do not make any unauthorised modification to the appliance. Any unauthorised modification will automatically invalidate the warranty and release the manufacture from all liability. • Use only original spare parts recommended by the manufacturer. Original spare parts are available through retailers, specialised Tecnical Service Centers, or directly at the head office of Jolly Mec Caminetti S.p.A. 01.2 SYMBOLOGY In this manual, points of considerable importance are marked with the following symbology: INSTRUCTION: Instructions regarding the correct use of the appliance. -
Page 5: Chap.02 Electrical Connections
Grado di Protezione: IP40 Uscita Ventola: 250 Vac 1,5 A Vers. potenziata Uscita Relè: 250 Vac 3A Fusibile Interno: 1,6 A Sonde di lettura: NTC10K @25°C; -10 ÷ 110 °C NTC100K @25°C; -10 ÷ 300 °C CHAP.02 ELECTRICAL CONNECTIONS INSTALLAZIONE Prima di fare qualsiasi operazione, assicurarsi che la Tensione di Rete 02.1 TERMINAL BLOCKS... -
Page 6: Chap.03 User Interface

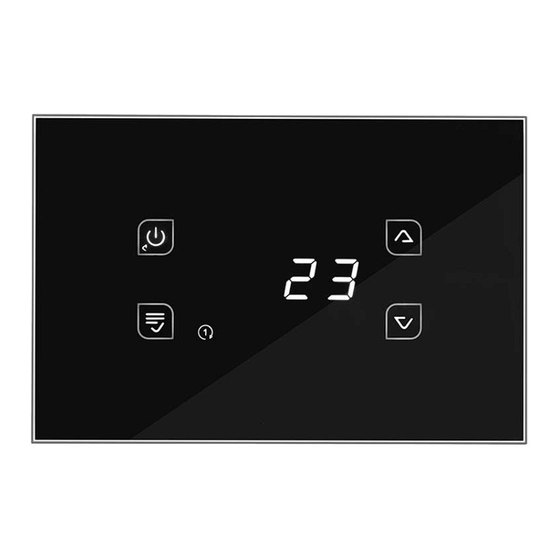

CHAP.03 USER INTERFACE 03.1 COMPONENTS The device comes packaged in a cardboard box containing the following components: - Electronic control unit with display (1); - Back box, fastening system (2) with screws (x2), spare fuse (3) terminal (4); - Temperature probe (5). Sigla Morsetti Dispositivo... -
Page 7: Key Functions
Caratteristiche Servizio = Termostato ÷ 300 NTC 100K Misura: -10 °C 1°C Contatti liberi: 230 Vac 50 Hz 10% Comandi: USO E FUNZIONI 7 - 8 Servizio = Grill ÷ Range di funzionamento: -10°C 125 °C COM. (7) - N.O. (8) ÷... -
Page 8: Chap.04 Operating Mode
Scorrimento/Aumenta Scorrimento/Aumenta Scorrimento/Aumenta Servizio Grill Servizio Grill Servizio Grill Start Manuale Serranda CHAP.04 OPERATING MODE Start Manuale Serranda Start Manuale Serranda 04.1 ON/OFF Controller ON/OFF is perforemd by applying prolongued pressure to K1 key • OFF-mode is displayed by K1 key being turned-on Scorimento/Diminuisce •... -
Page 9: Chap.05 User Menu
Servizio = Termostato Contatti liberi: LINEA SERV 7 - 8 Servizio = Grill COM. (7) - N.O. (8) Serranda Aria Comburente Scorrimento/Aumenta Servizio Grill Scorrimento/Aumenta Scorrimento/Aumenta Pannello Comandi: USO E FUNZIONI Start Manuale Serranda Servizio Grill CHAP.05 USER MENU Servizio Grill Start Manuale Serranda Start Manuale Serranda VENT... - Page 10 Legend Description Cod. U.M. Air Thermostat for Fan Activation °C Air Thermostat for SAFETY °C Air Thermostat for ALARM °C Temperature Delta for Proportional management °C Hysteresis Ambient Thermostat Ib01 °C S2 Input Configuration Enable FAN SAFETY Enable Air SAFETY Enable Air ALARM...
- Page 11 NOTES...
- Page 12 Via S.Giuseppe 2 - 24060 Telgate (Bg) Italy Tel. +39 035.83.59.211 Fax +39 035.83.59.203 www.jolly-mec.it - info@jolly-mec.it...
