Ayrton minipanel FX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Manuel d'utilisation
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the minipanel FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayrton minipanel FX

Summary of Contents for Ayrton minipanel FX

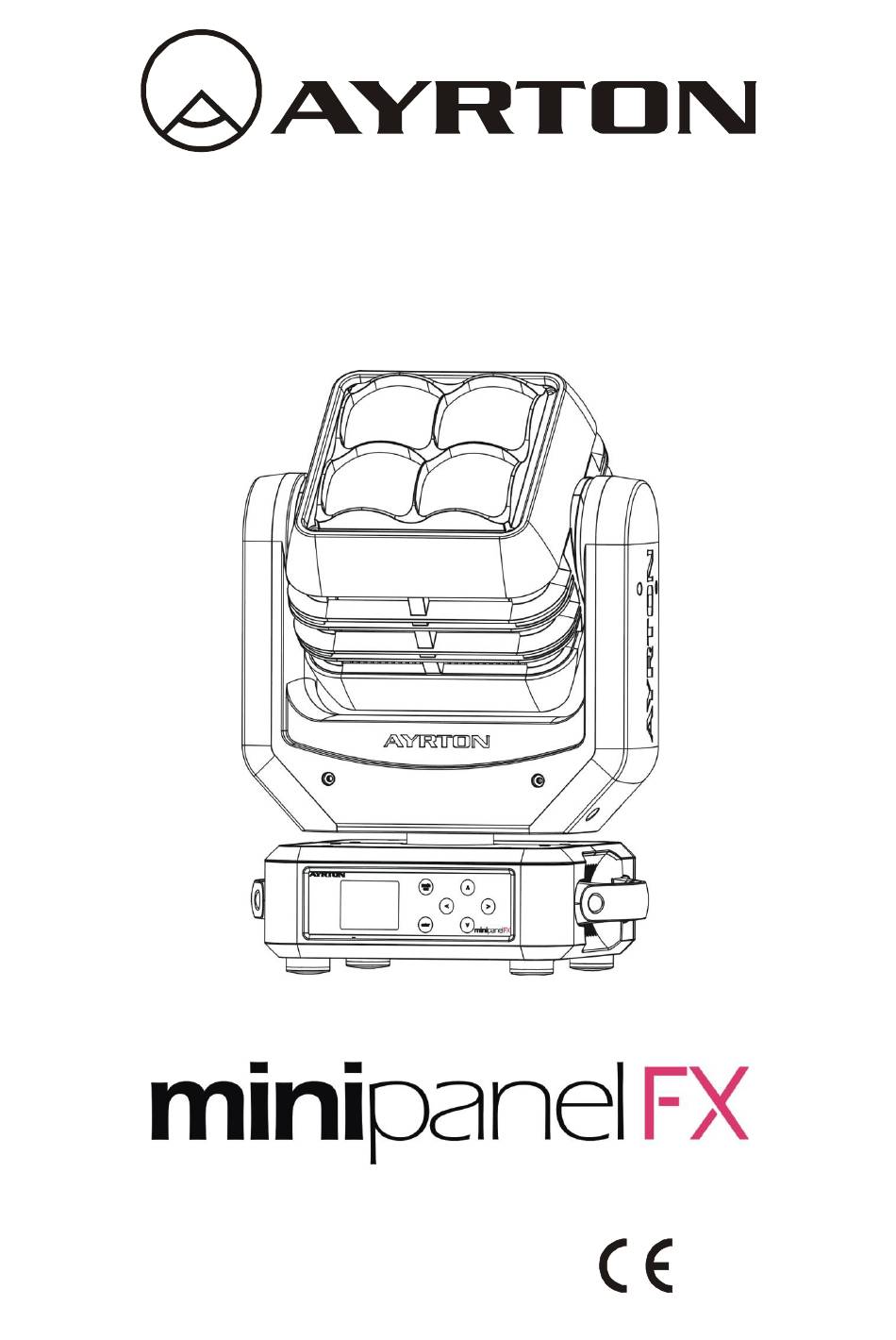

  • Page 1 Manuel d’utilisation KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. FEATURES 3. FIXTURE OVERVIEW 4. DIMENSIONAL DRAWINGS 5. INSTALLATION INSTRUCTIONS 6. DMX-512 CONTROL CONNECTION 7. DMX-512 CONNECTION WITH DMX TERMINATOR 8. DEVICE DMX START ADDRESS SELECTION 9. OPERTING INSTRUCTIONS OF THE INTERNAL DMX WIRELESS SYSTEM 10.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. IMPORTANT SAFETY WARNING This device has left the factory in perfect condition.In order to maintain this condition and to ensure safe operation it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. In order to install operate and maintain the lighting fixture safely and correctly we suggest that the installation and operation be carried out by qualified technicians and these instructions be carefully followed.
  • Page 4 replaced by the manufacturer or their service agent or a similar qualified person in order to avoid injury. When the device is not in use or before performing maintenance always disconnect the device from the mains.Only handle the power cord from the plug.Never pull the plug out of a socket by tugging the power cord.

  • Page 5: Features

    2. FEATURES POWER SUPPLY AC100-240V~ 50/60Hz Power Consumption 220W LIGHT SOURCE LED 4 pcs OSTAR STAGE II RGB + W LEDs Extremely long Life >50,000H Color temperature 2700K,3200K,4200K,5600K,6500 K,8000 K MOVEMENT Pan movement 360° continuous movement Tilt movement 360° continuous movement Advanced moving system fast stable and quite COLORS Excellent color mixing and rainbow effect...
  • Page 6 DMX CHANNEL CHART...

  • Page 7: Fixture Overview

    3. FIXTURE OVERVIEW 1) Display 2) Mode/Esc-button 3) ENTER-button 4) Left-button 5) Down-button 6) Up-button 7) Right-button 8) Handle 9) LED Assembly 10) 5-pin DMX Out 11) 5-pin DMX In 12) Power In 13) Power Out 14) Fuse...

  • Page 8: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS...

  • Page 9: Installation Instructions

    5. INSTALLATION INSTRUCTIONS 5.1. Rigging the device CAUTION! PLEASE CONSIDER THE RESPECTIVE NATIONAL NORMS DURING INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under or above the temperature.
  • Page 10 5.2. Rigging using the omega brackets Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the 13 hole in the middle of the bracket. Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.Tighten the quick-lock fasteners fully clockwise.
  • Page 11 5.3. RIGGING DRAWINGS Be sure this fixture is kept at least 0.1 m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Important Overhead rigging requires extensive experience including (but not limited to) calculating working load limits specifying installation/ rigging materials and periodic safety inspection of...

  • Page 12: Dmx-512 Control Connection

    6. DMX-512 CONTROL CONNECTION Connect the provided male side of the XLR cable to the female XLR output of your controller and the female side of the XLR cable to the male XLR input of the device.You can connect multiple devices together in a serial fashion.The cable needed should be two core screened cable with XLR input and output connectors.Please refer to the diagram below.

  • Page 13: Device Dmx Start Address Selection

    8. DEVICE DMX START ADDRESS SELECTION All fixtures should be given a DMX starting address when using a DMX signal so that the correct fixture responds to the correct control signals.This digital starting address is the channel number from which the fixture starts to “ listen” to the digital control information sent out from the DMX controller.The allocation of this starting address is achieved by setting the correct address number on the display located on the base of the device.
  • Page 14 controller which connected.The fixture can log in the wireless transmitter and receive only radio signal from transmitter but not DMX from the transmitter. De-activate WDMX In this status wireless system is not activated so the fixture can not log in the transmitter. REST reset WDMX memory Can remove the fixture from the connection with the transmitter the fixture become free and...

  • Page 15: Display

    10. DISPLAY The Display offers several features you can set the starting address run the pre-programmed program or reset the device. The main menu is accessed by pressing the -button until the display starts flashing.Browse through the menu by pressing the -button -button -button or...
  • Page 16 Auto run if no DMX Status No DMX Mode Close/Hold/Auto Pan Reverse movement Pan Reverse ON/OFF Tilt Reverse movement Tilt Reverse ON/OFF Pan Degree Select Pan Degree 630/540 Tilt Degree Select Tilt Degree 540/270 Movement Feedback Feedback ON/OFF Reset Pan/Tilt Pan/Tilt Spd Speed 1~ 4 Hibernation...
  • Page 17 Password “050” Calibration -Password- Calbrate and adjust effects standard/right position Select programs to be run Select Prog. Prog. Part 1 = Program 1 ~ 10 Program 1 Prog. Part 2 = Program 1 ~ 10 Program 2 Prog. Part 3 = Program 1 ~ 10 Program 3 Testing program Edit Prog.
  • Page 18 3 Press< ENTER> the display will show“Edit User Mode”. 4 The display show “Max Channel=XX Press <Up/Down> button then you can choose “PAN=CH01”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 10.3.OPTIONS 10.3.1. Status Settings No DMX Status With this function when the drive is not DMX signal it runs automatism close hold and music the default is hold.
  • Page 19 <Up/Down> button until the display will show“Status settings”.Press<ENTER> the display will show“Status settings”. 2. Press <Up/Down> the display will show“Pan Degree”. 3. Press< ENTER> the display will show“Pan Degree”. 4. The display show“540 Press <Up/Down> the display will show“630”. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Tilt Degree With this function you can select tilt degree for 540 or 270.
  • Page 20 “Options”is displayed.Press< ENTER> the display will show“Options”.Tap the <Up/Down> button until the display will show“Status settings”.Press< ENTER> the display will show“Status settings”. 2. Press <Up/Down> the display will show“Hibernation”. 3. Press< ENTER> the display will show“Hibernation”. 4. The display show “15M Press <Up/Down> the display will show “01M “02M”. . . “99M”or“OFF”.
  • Page 21 10.3.3. Fans Control Head Control With this function you can set the speed of the running fans.The selections have Auto Stage and Studio. 1 Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Options”is displayed.Press< ENTER> the display will show“Options”.Tap the <Up/Down>...
  • Page 22 display will show“Display Setting”. 2 Press <Up/Down> the display will show“Key Lock”. 3 Press<ENTER> the display will show“Key Lock”. 4 The display show“OFF Press <Up/Down> the display will show“ON”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. DispFlash With this function you can the entire display to be flipped by 180°...
  • Page 23 “Options”is displayed.Press ENTER the display will show“Options”. 2 Press <Up/Down> the display will show“Initial Pos.”. 3 Press< ENTER> the display will show“Initial Pos.”. 4 The display show“PAN=XXX”. 5 Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 10.3.9.
  • Page 24 scenes either automatically i.e.with the adjusted Step-Time. 1 Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Options”is displayed.Press< ENTER> the display will show“Options”.Tap the <Up/Down> button until the display will show “Trigger” .Press< ENTER> the display will show“Trigger”.
  • Page 25 Last Run Hrs With this function you can display last the running time of the device.The display shows “XXXX “XXXX”stands for the number of hours. 1. Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Information” is displayed.Press<ENTER> the display will show “Information” .Tap the <Up/Down>...
  • Page 26 4. The display show“XXX °C/ °F”. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 10.4.3. Software Ver With this function you can display the software version of the device. 1. Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Information”is displayed.Press<ENTER>...
  • Page 27 password of calibrate values is 050. 1 Tap <MODE/ESC> button access the main menu Tap the <Up/Down> button until “Test”is displayed.Press <ENTER> the display will show“Test”. 2 Press <Up/Down> the display will show“Calibration”. 3 Press< ENTER> the display will show“Calibration”. 4 The display show“Pan=XXX”.

  • Page 28: Dmx Protocol

    11. DMX PROTOCOL DMX channel´s functions and their values (34 DMX channels): Mode/Channel Value Function PAN Movement 8bit : 0-255 Pan Movement Pan Fine 16bit 0-255 Fine control of Pan movement TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit 0-255 Fine control of Tilt movement Speed Pan/Tilt movement:...
  • Page 29 Red LED -all arrays : 0-255 Red ( 0-Black , 255-100% Red ) Green LED-all arrays 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -all arrays : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED -all arrays : 0-255 White ( 0-Black , 255-100% White ) Red LED -array 1 :...
  • Page 30 Dimmer intensity: 0-255 Intensity 0 to 100% Color Macro: No function 8-39 from RED to YELLOW 40-71 from YELLOW to GREEN 72-103 from GREEN to CYAN 104-135 from CYAN to BLUE 136-167 from BLUE to MAGENTA 168-199 from MAGENTA to RED 200-231 from RED to WHITE 232-255...
  • Page 31 10-14 Chase 1 15-19 Chase 2 20-24 Chase 3 25-29 Chase 4 30-34 Chase 5 35-39 Chase 6 40-44 Chase 7 45-49 Chase 8 50-54 Chase 9 55-59 Chase 10 60-64 Chase 11 65-255 Reserved Chase Speed: 0-125 Fast to Slow Backward 126-130 Stop(Speed=0) 131-255...

  • Page 32: Error Messages

    12. ERROR MESSAGES When you turn on the device, it will first perform a reset.The display may show“Err channel is XX”should there be problems with one or more functions.“XX” stands for channel 1 2 3 4 5 6 etc whose sensor has encountered a problem.For example when the display shows“Err channel is Pan movement it means there is an error on channel 1.If there are errors on channel 1 channel 3 channel 15 at the same time you may see the error message “Err channel is Pan...
  • Page 33 In order to ensure the device remains in good condition and does not fail prematurely we suggest regular maintenance. 1) Clean the inside and outside lens each week to avoid loss of output due to accumulation of dust/ dirt on the lens. 2) Clean the fans each week to ensure maximum airflow and efficient thermal cooling.This will ensure the light source is operated in the best possible condition.
