Before you start:
Check the contents
1. Flow temperature gauge and pump holder
2. Lower pump holder
3. Lower flow elbow
4. Wunda temperature control valve/mixer
5. Return temperature gauge holder
6. Pump washers x 2
7. Connector washers x 5
1
8. Isolation valves – pair (optional extra)
with connector washers x 2
9. Pump
10. Manifold connectors x 2*
11. Additional support bracket**
Supplied with High Tech Manifold
sets only.
11. Pumpset bracket - High Tech manifolds only**
Wunda Pumpset
✆ 0800 5420 816

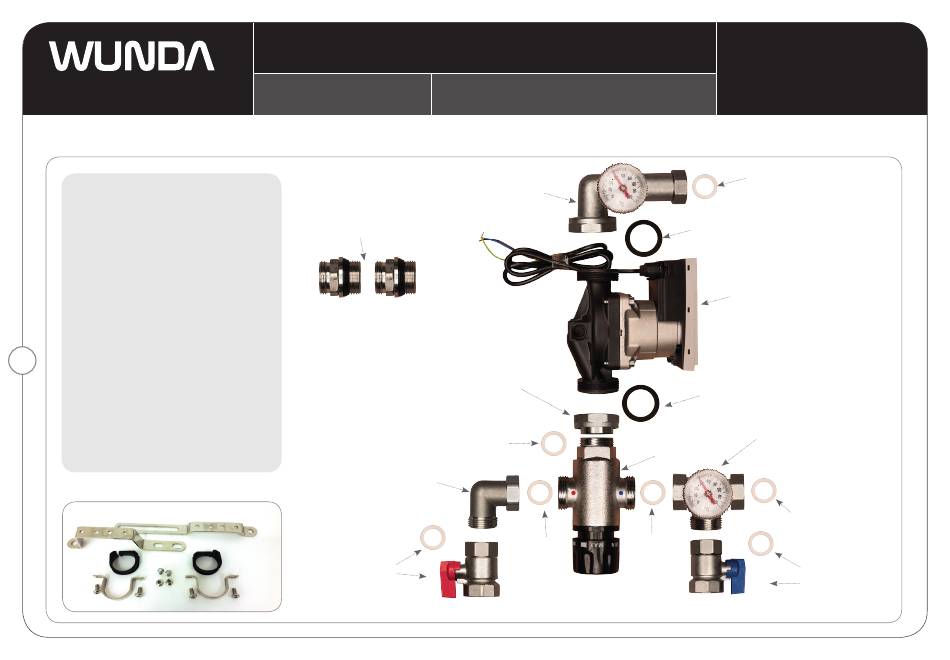

Please check the manifold and pumpset box contents against the images and list below.
10. Manifold Connectors
supplied with Premium
Stainless Steel Manifold.
Not required with our High
Tech Composite Manifold*.
3. Lower flow elbow
8. Isolation valve
(red lever)
& connector washer
www.wundatrade.co.uk
1. Flow temperature gauge
and pump holder
2. Lower pump holder
7. Connector Washer
7. Connector
Washer
M06
7. Connector
Washer
6. Pump Washer
9. Pump
6. Pump Washer
5. Return temp
gauge holder
4. Wunda temp control
valve/mixer
7. Connector
Washer
7. Connector
Washer
& connector washer
Revision date: 25/4/2018
8. Isolation valve
(blue lever)
Advertisement
Related Manuals for Wunda M06
Summary of Contents for Wunda M06
- Page 1 1. Flow temperature gauge and pump holder 6. Pump Washer Tech Composite Manifold*. 2. Lower pump holder 3. Lower flow elbow 4. Wunda temperature control valve/mixer 9. Pump 5. Return temperature gauge holder 6. Pump washers x 2 7. Connector washers x 5 8.
- Page 2 Wunda Pumpset THE BRAND YOU CAN TRUST ✆ 0800 5420 816 www.wundatrade.co.uk Understanding how the Manual air vent with hose Pumpset support bracket manifold & Pumpset work attachment for filling and Flow Bar required/supplied with High draining the system Tech manifold only.
- Page 3 & pump holder. screw the elbow onto the left-hand inlet (red control mixer ensuring the correct Wunda temperature control mixer. Again Tighten the pump holder onto the pump by dot) side of the temperature control mixer.
- Page 4 Wunda Pumpset THE BRAND YOU CAN TRUST ✆ 0800 5420 816 www.wundatrade.co.uk locate washer into the lower return temperature Fit the two isolation valves onto the flow and return feeds This pumpset is supplied with flow and return temperature gauge holder and screw onto the right-hand...
- Page 5 The pumpset will have a small amount of movement within the brackets which When connecting a Wunda pumpset to our High Tech The pumpset bracket is now ready to accept the pumpset will allow for easier connection. The pumpset is now ready for...
- Page 6 Wunda Pumpset THE BRAND YOU CAN TRUST ✆ 0800 5420 816 www.wundatrade.co.uk Pumpset connection to Premium Stainless Steel Manifold* When connecting the pumpset Two pumpset to manifold connectors are supplied and will need fitting to the left hand side to the manifold ensure the...
- Page 7 Wunda Pumpset THE BRAND YOU CAN TRUST ✆ 0800 5420 816 www.wundatrade.co.uk Flow temperature setting. Guidlines for different types of floor heating To protect final floor finish and have the correct settings for floor constructions, • Pipe in Overfloor panel systems 35°C*.
-
Page 8: Flow Rates
PLEASE READ: Important set-up info Grundfos Wilo In some cases, if the pump circulation speed and flow meters are not set up properly, the premium mixing valve may whistle. to avoid this, check you have covered the following points during installation. MANIFOLD SIZE: 2-4 ports - total floor heating pipe length of up to 400 metres, the pump should Pump speed selector... -
Page 9: Supplementary Information
25mm thick work well with floor heating. All wood flooring alkaline conditions the oxide film dissolves exposing the metal. Some over many years. Wunda Group Plc recommends regular use waters found in the UK will give rise to sufficiently alkaline conditions...
