Murdock BF1 Series Installation & Maintenance Instructions Manual

Murdock BF1 Series Installation & Maintenance Instructions Manual

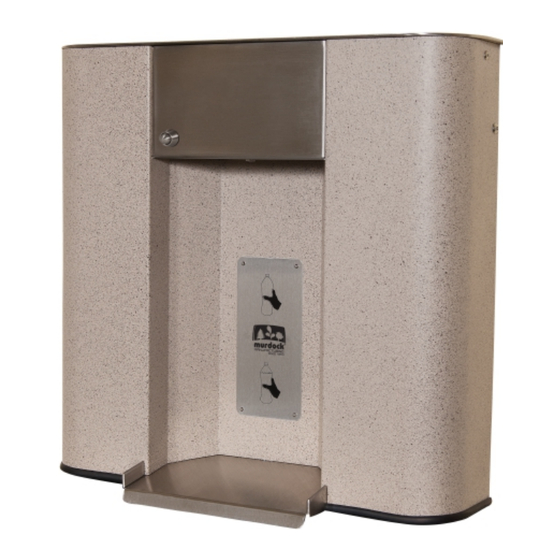

Bottle filler, pushbutton operated

Advertisement

TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
Technical Assistance Fax: 1.626.855.4894
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
Murdock warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of original shipment or for 18 months after the date of shipment from the
factory, whichever comes first. Murdock's liability under this warranty shall be discharged solely by replacement
or repair of defective material, provided Murdock is notified in writing within one year from date of shipment,
F.O.B. Industry, California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdock's limited warranty is void.
LIMITED EXPORT WARRANTY - One year on parts only.
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7109-708-001
WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
BF1 Series
Bottle Filler, Pushbutton Operated
1.800.591.9360
LIMITED WARRANTY - UNITED STATES & CANADA
15125 Proctor Ave.
City of Industry, CA
Phone 800-591-9360
Fax 626-855-4894
Member of
www.murdockmfg.com
Date:
MURDOCK
91746 U.S.A.
626-336-4561
07/15/16

Advertisement
