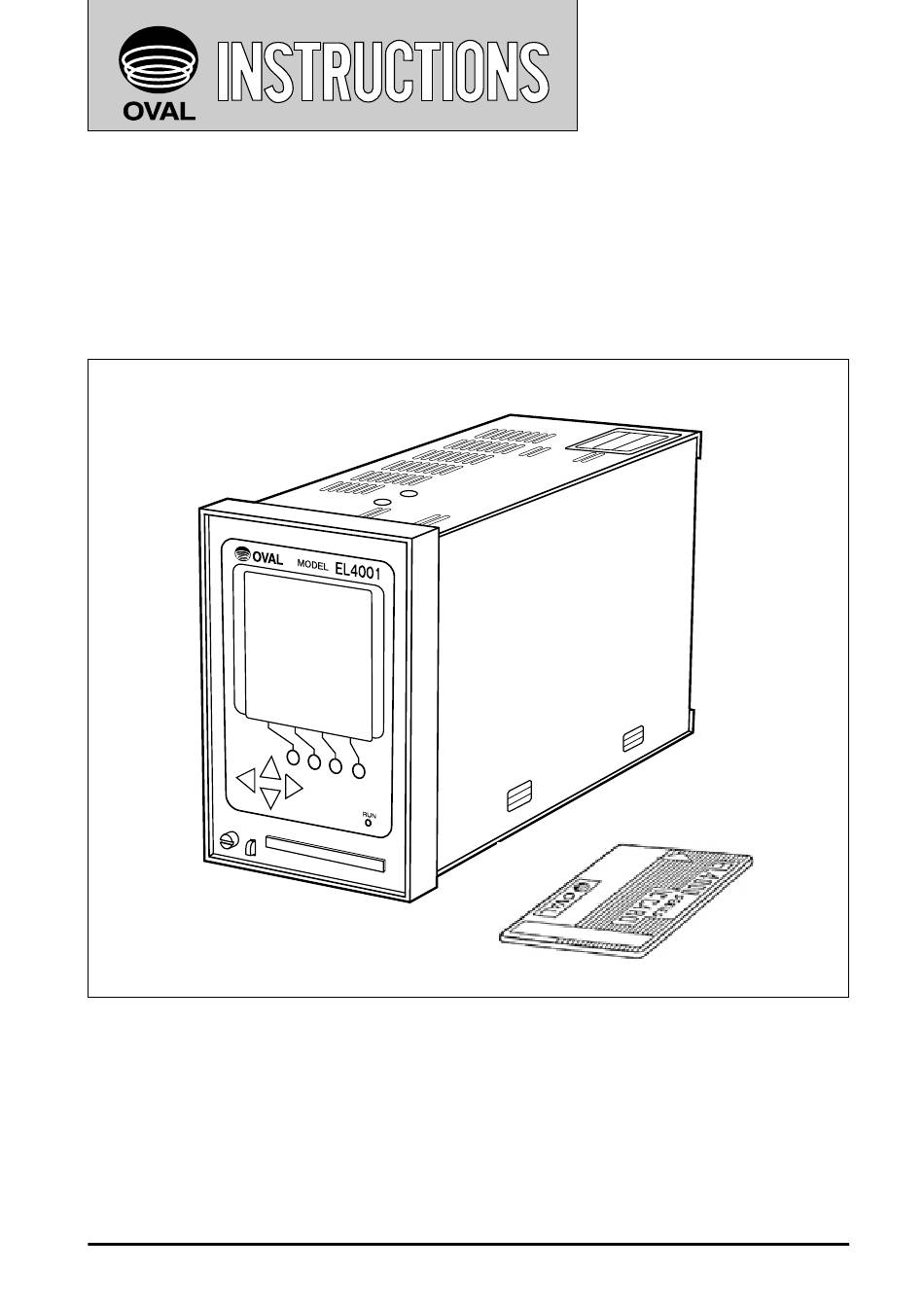

Multipoint temperature compensated
FLOW COMPUTER
This manual has been prepared to provide you with the information pertinent to the Multipoint
Temperature Compensated FLOW COMPUTER.
With the proper application of the information and knowledge contained in this manual, you can expect
the best possible results over a long service life of this instrument. Keep this manual for ready reference.
It is suggested that the instruction manuals for the companion pulse generator (flowmeter) and receiving
instrument be referred to at the same time.
E-888-5-E
Ins. No.
MODEL：EL4501
