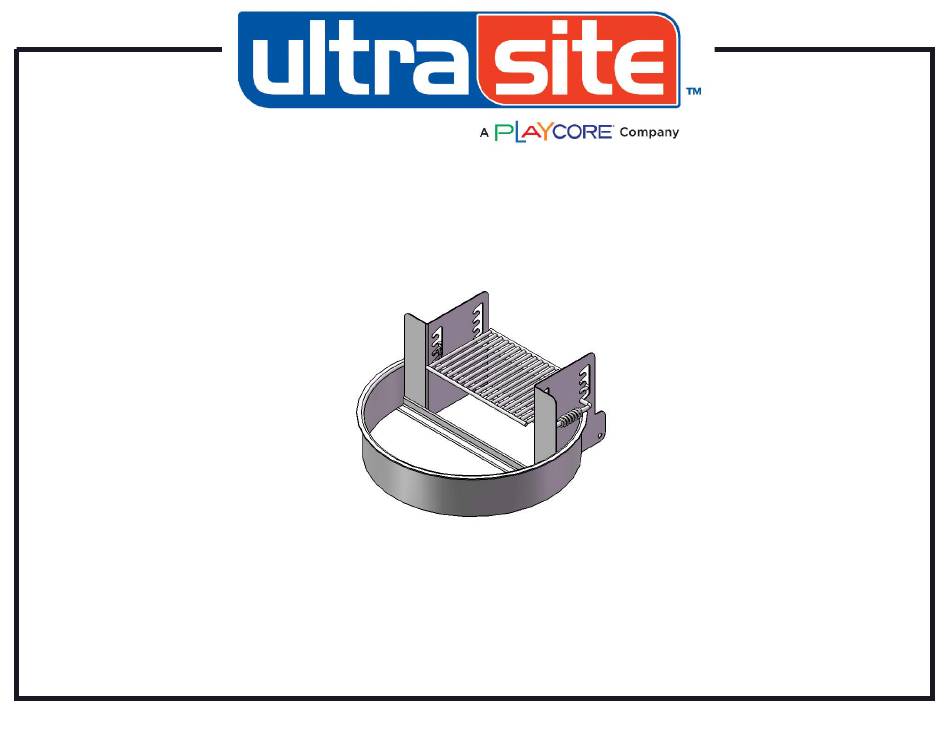

- Page 1 Model # 612 5/7/2019 Page 1 of 6...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 ULTRA SITE PRODUCT SPECIFICATIONS 612 Fire Ring Grill shall be fabricated from 7 gauge steel plate forming a 30" diameter. Ring shall be constructed of 7" high with a 1” formed lip, joined in rear by an electrically welded seam. The inner ring shall be formed from an 11 gauge steel sheet. Grill shall be secured permanently in ground by means of two 1/2"...
-
Page 5: Overall Dimensions
OVERALL DIMENSIONS Estimated Required Concrete: 3 - 50lb Bags of Concrete Mix Attach the ground staples to the Fire Ring before inserting then into the concrete footings. Ground Staples are included. 18" Be sure to leave enough space between the footings and the fire ring so that it can be flipped up for cleaning purposes. - Page 6 OVERALL DIMENSIONS 15 7/8" 7" 30 3/8" WARNING: Combustion byproducts produced when using this product include carbon monoxide, a chemical known to the State of California to cause birth defects or other reproductive harm. 800-45-ULTRA www.ultraplay.com 5/7/2019 Page 6 of 6...
