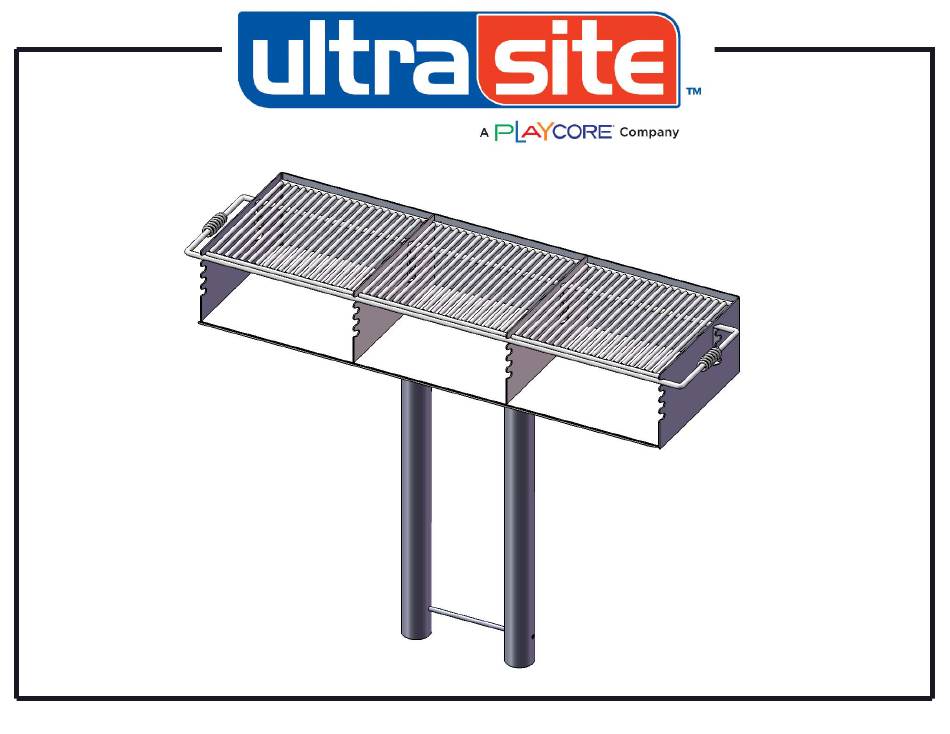

- Page 1 Model # 660-3 5/8/2019 Page 1 of 9...
-
Page 2: Warranty & Terms
1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective. - Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 3/8" Washer 3/8" Breakway 3/8" x 3" Machine Bolt 800-45-ULTRA www.ultra-site.com 5/8/2019 Page 4 of 9...
-
Page 5: Tools Required
TOOLS REQUIRED 9/16" and 3/4" 9/16" and 3/4" Wrench Socket Wrench Tape Measure Level 800-45-ULTRA www.ultra-site.com 5/8/2019 Page 5 of 9... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS 660 Grill Pedestal Mounted Cooking Grill Firebox: Sides shall be fabricated of 10 gauge steel and the floor of 3/16" steel plate for added strength. For safety, corners of firebox shall be rounded. For drainage, holes shall be provided in the rear corners of side plates. Grate: The cooking grate shall be fabricated from 1/2"...
- Page 7 COMPONENTS Place the Tube on bottom of Grill box through the hole in the plate of the Grill Post. Attach the Grill Box to the Grill Post using specified hardware. Note: Round edge of Breakaway Nut goes towards the post. Before After Hex part of nut will break off...
- Page 8 FOOTINGS 28" Estimated Required Concrete: 15 - 50lb Bags of Concrete Mix 37 5/8" 18" 28" 800-45-ULTRA www.ultra-site.com 5/8/2019 Page 8 of 9...
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS 19 13/16" 60" 65 1/4" 21 1/2" 18 3/4" 10" 37 5/8" 27 13/16" 49 13/16" Ground Level WARNING: Combustion byproducts produced when using this product include carbon monoxide, a chemical known to the State of California to cause birth defects or other reproductive harm. 800-45-ULTRA www.ultra-site.com 5/8/2019...
