- Page 1 FLIP Video Cameras in the Classroom...
- Page 2 The FLIP Digital Video Camcorder It’s FLIPPIN’ Sweet!

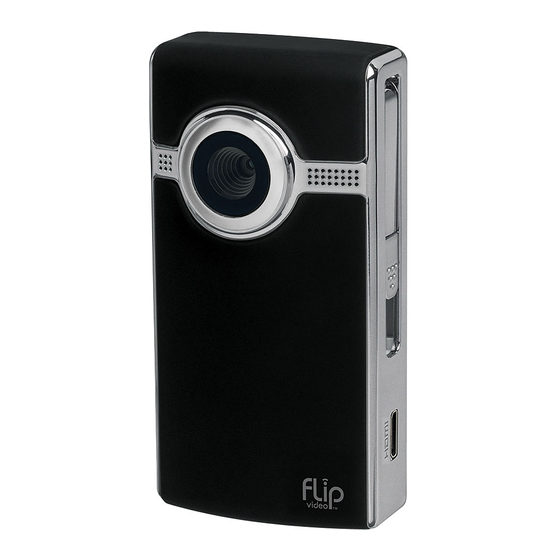

- Page 3 The FLIP Digital Video Camcorder FLIP UltraHD 2nd Generation...
-
Page 4: Back Panel Controls
Back Panel Controls... - Page 5 “Compass” 5 multi-function buttons...
-
Page 6: Record Button
Record Button While Recording = press once to record / press again to stop recording Do not hold button while recording During Playback = returns to Record Mode... -
Page 7: Recording Video
Recording Video “Ready” must be displayed at top of screen in order to record Capacity = 2 hours of recorded video “Time Left” will display at bottom of screen Maximum video length = 1 hour... - Page 8 Recording Video Hold the camera in “Portrait” mode while recording Do not hold camera in “Landscape” mode while recording...
- Page 9 > Compass “East” During Playback = navigates forward through video clips During Playback = press and hold to fast forward...
- Page 10 > Compass “East” During Playback = navigates forward through video clips During Playback = press and hold to fast forward Also used for navigation when deleting videos...
- Page 11 < Compass “West” During Playback = navigates backward through video clips During Playback = press and hold to rewind...
- Page 12 < Compass “West” During Playback = navigates backward through video clips During Playback = press and hold to rewind Also used for navigation when deleting videos...
- Page 13 + Compass “North” While Recording = zooms in During Playback = increases volume...
- Page 14 - Compass “South” While Recording = zooms out During Playback = decreases volume...
-
Page 15: Delete Button
Delete Button During Playback = deletes current video... - Page 16 Delete Button By default, Delete is locked Press and hold delete button until “Delete Unlocked” is displayed to relock, press and hold until “Delete Locked” is displayed...
-
Page 17: Arrow Button
Arrow Button During Playback = pause/ restart video During Playback = press and hold until “Playing All” displayed to play all video clips consecutively... - Page 18 Arrow Button When Deleting Videos = confirms Delete...
-
Page 19: Bottom Panel
Bottom Panel... -
Page 20: Battery Release Latch
Battery Release Latch One rechargeable battery pack included Can also use 2 AA batteries... - Page 21 The FLIP Battery...
- Page 22 The FLIP Battery Place in camera as shown Do not use other battery packs...
- Page 23 Battery Pull Tab Insert battery with pull tab accessible on right side...
- Page 24 The FLIP Battery 3-6 hours to fully charge / 1.5 hours of battery life Camera will automatically power off after 2 minutes of inactivity Battery symbol will flash on camera LCD screen when battery is low...
-
Page 25: Charging The Battery
Charging the Battery charge in progress Connect camera to computer via USB arm to charge Computer must be powered on when charging camera... - Page 26 Charging the Battery fully charged Do not over-charge - disconnect from computer when fully charged...
-
Page 27: Tripod Stand
Tripod Stand Fits any tripod model or size... -
Page 28: Front Panel
Front Panel... - Page 29 Microphone...
- Page 30 Recording Light Red light visible only during recording and charging...
-
Page 31: Left Side Panel
Left Side Panel... -
Page 32: Power Button
Power Button Press once quickly for “On” Press quickly again for “Off”... -
Page 33: Right Side Panel
Right Side Panel... - Page 34 TV Connection Connects to HDTV set Cable not included...
- Page 35 TV Connection Connects to HDTV set Cable not included...
- Page 36 USB Release Pull back to spring USB arm Pull back and hold when returning USB arm to closed position...
