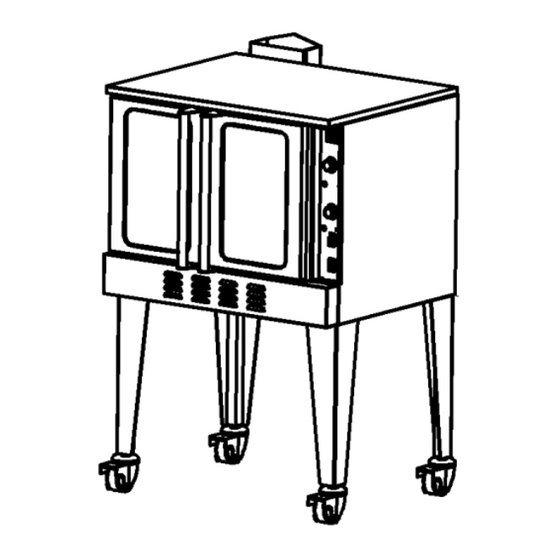

- Page 1 Installation and Operation Manual ELECTRIC CONVECTION OVEN Model: KF-COE-208 KF-COE-240 Please read this manual completely before attempting to install, operate or service this equipment...
-
Page 2: Important Warning And Safety Information
Installation and Operation of Electric Convection Oven IMPORTANT WARNING AND SAFETY INFORMATION FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. : Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. -
Page 3: Installation Instructions
D. ELECTRICAL CONNECTIONS KFE cannot assume liability for The oven is supplied for connection to a 208, 240, 440 Loss or damage suffered in transit. The carrier assumes or 480 volt grounded circuit. -
Page 4: Oven Assembly
Installation and Operation of Electric Convection Oven NOTE: If you plan to use casters, a fixed restraint of the area. Standard wiring schematics are also included at the back of this manual. Proper length must be incorporated to secure the oven to a non-movable surface to eliminate strain on the power Note to Electrical Inspector: Inspection of... - Page 5 Installation and Operation of Electric Convection Oven OPERATING INSTRUCTIONS The information in this section is intended for the use THE COE SERIES OF CONVECTION of qualified operating personnel. Qualified Operating OVENS Personnel are those individuals who have carefully read the information contained in this manual, are familiar withthe function of the oven and/or have had Do not attempt to operate oven during a power failure.
- Page 6 Installation and Operation of Electric Convection Oven The fan speed can be set to high or low speed by placing the FAN HI/LOW button to the desired setting. Cooking A cooking cycle can be initiated as follows: • Turn the Power Switch. •...
-
Page 7: General Guidelines For Operation
Installation and Operation of Electric Convection Oven • B. GENERAL GUIDELINES FOR OPERATION You may wish to experiment with leaving the oven OFF after pre-heating the oven and loading when These guidelines are to assist you in obtaining the best baking light products such as light cake batter performance from your oven: or custard so the product will have time to set. -
Page 8: Suggested Times & Temperatures
Installation and Operation of Electric Convection Oven C. SUGGESTED TIMES & TEMPERATURES °F °C PRODUCT COOK TIME RACKS TEMP TIME 8 – 10 MIN BEEF HAMBURGER PATTIES (3.3 OZ) MEAT LOAF 40 -45 MINE 2 ¾ HOURS STEAMSHIP ROUND (80 LBS QUART) ROLLED BEEF ROAST (12 –... -
Page 9: Cook & Hold/Roast & Hold Recommended Time & Temperature
Installation and Operation of Electric Convection Oven D. COOK & HOLD/ROAST & HOLD RECOMMENDED TIME & TEMPERATURE PRODUCT COOK HOLD COOK HOLD TIME TOTAL TEMP TEMP TIME MINIMUM TIME PRIME RIB 3 HRS 1 HR 4 HR BONE IN 200°F 140°F CAP OFF 3-1/4 HRS... -
Page 10: Maintenance Instructions
Installation and Operation of Electric Convection Oven MAINTENANCE INSTRUCTIONS These maintenance instructions are for the use of C. DOOR SWITCH ADj USTMENT qualified service personnel only. Service by other than You may also wishto adjust the door switch. The door qualified personnel may result in damage to the oven switchis located behind the combustion compartment and/or injury to the operator. - Page 11 Installation and Operation of Electric Convection Oven thermostat related problems could be attributed to their This thermostat is adirect-acting(opensontemperature being out of adjustment (calibration).Athermostat that is rise) device. out of calibration may cause unsatisfactory cooking results such as uneven baking, prolonged cooking times, etc. If Rotation Screw "A"...
-
Page 12: Contactor Identification
Installation and Operation of Electric Convection Oven CONTACTOR IDENTIFICATION POWER SUPPLY CONNECTION Contactor, 50AMP Terminal Block Plug, Ground GROUND WIRES L1, L2 & L3 SHOWN (3 PHASE) SOURCE L1 & L3 (1 PHASE) WIRES CONTACTOR IDENTIFICATION... -
Page 14: Warranty Information Form
When service is needed, contact a KFE Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your unit.
