Quick Reference Guide
Micro OWL 2 Series
Firmware Version 2.03
Micro OWL 2 Series Test Kits
Certification Testing
Quick Reference Guide
For part numbers:
KIT-M2-WSSDst
KIT-M2-WSSDsc
KIT-M2-WSSDfc
OWL
Optical Wavelength Laboratories
Revision 1.1
26009
Optical Wavelength Laboratories (OWL)
N9623 West US Hwy 12
Whitewater, WI 53190
Phone: 262-473-0643
Internet: OWL-INC.COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Micro OWL 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OWL Micro OWL 2 Series

Summary of Contents for OWL Micro OWL 2 Series

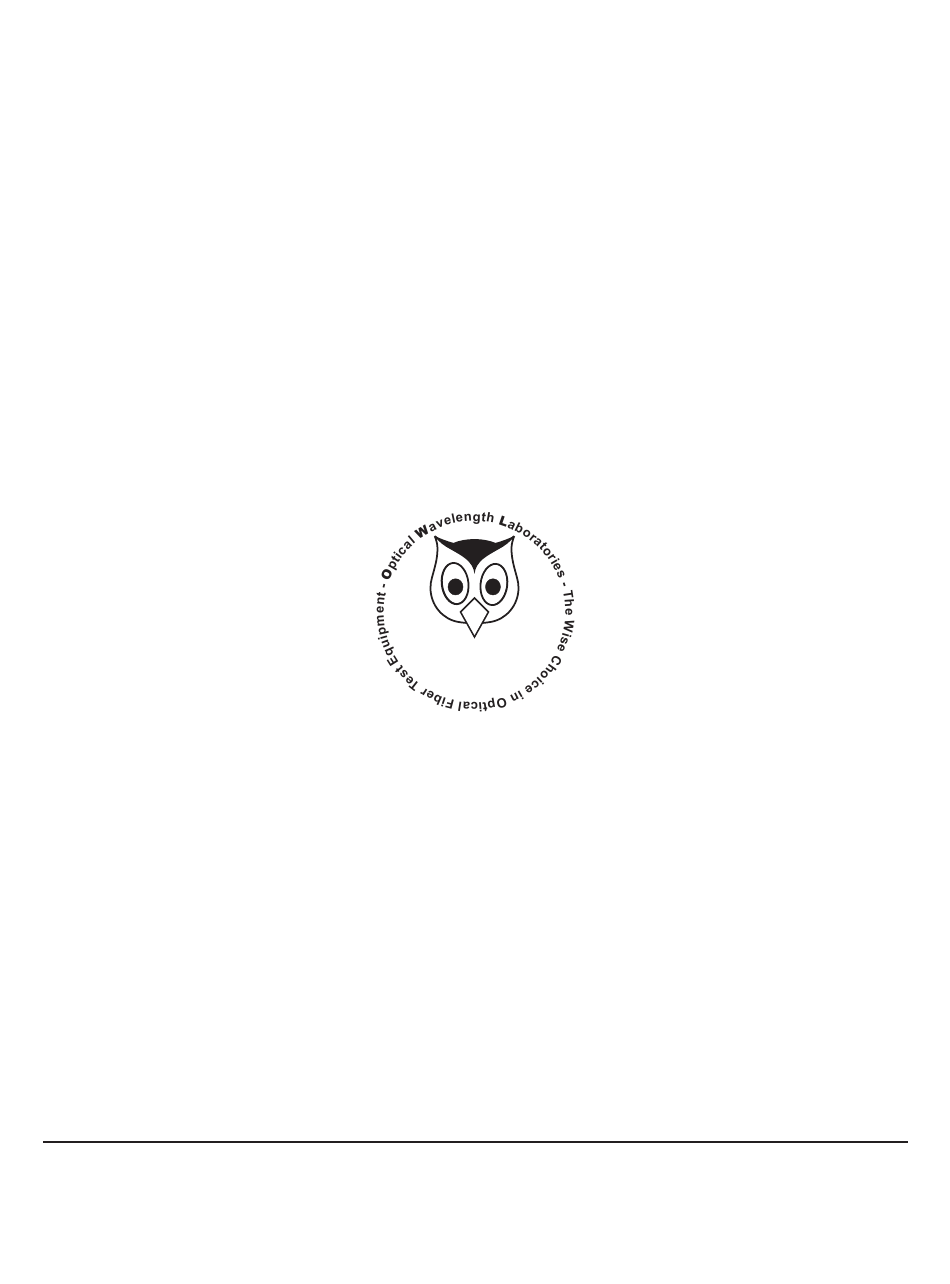

  • Page 1 Micro OWL 2 Series Test Kits Certification Testing Quick Reference Guide For part numbers: KIT-M2-WSSDst KIT-M2-WSSDsc KIT-M2-WSSDfc Optical Wavelength Laboratories Quick Reference Guide Revision 1.1 Optical Wavelength Laboratories (OWL) Micro OWL 2 Series 26009 N9623 West US Hwy 12 Firmware Version 2.03...

  • Page 2: Getting Started

    GETTING STARTED Thank you for your purchase of this OWL certification test kit. Included in this kit is a Micro OWL 2 optical power meter and a WaveSource multimode fiber optic light source. This quick reference guide will assist you in setting up your test kit for a standards-based certification test.

  • Page 3: Required Accessories

    STEP 6 Press <F3> on the Micro OWL 2 until the wavelength reads 1310nm. STEP 7 The Micro OWL 2 should read approximately -10.00 dBm. If the reading is below -12.00 dBm, the patch cable should be replaced. STEP 8 Once proper operation has been verified, remove the first patch cable from both units and set it aside.
  • Page 4 RUN LINK WIZARD STEP 12 From the OPERATING MODE menu, select CERTIFY LINK. STEP 13 From the START MENU, press <1>LINK WIZARD. START MENU <1>LINK WIZARD <2> MAIN MENU STEP 14 From the STORED LINKS menu, highlight the stored link name you wish to use and STORED LINKS press <F2>...

  • Page 5: Take Readings

    TAKE READINGS STEP 30 If testing two wavelengths, press the <1> button to set the Micro OWL 2 into AUTO mode, then press and hold the /AUTO button on the WaveSource. You will begin to see the WaveSource indicator LED alternate...
  • Page 6 STEP 33 Once the STORE button becomes active, press <F2> to store the data point. If this is the first fiber in the link, you may be prompted to enter a new label. STEP 34 Press <F3> to save the data point. STEP 35 Disconnect the patch cables from the patch panels and move them to the next port in the patch panel, then repeat steps 33 through 35 until all fibers in the link have been tested.

This manual is also suitable for:

Micro owl 2 kit-m2-wssdstMicro owl 2 kit-m2-wssdscMicro owl 2 kit-m2-wssdfc
