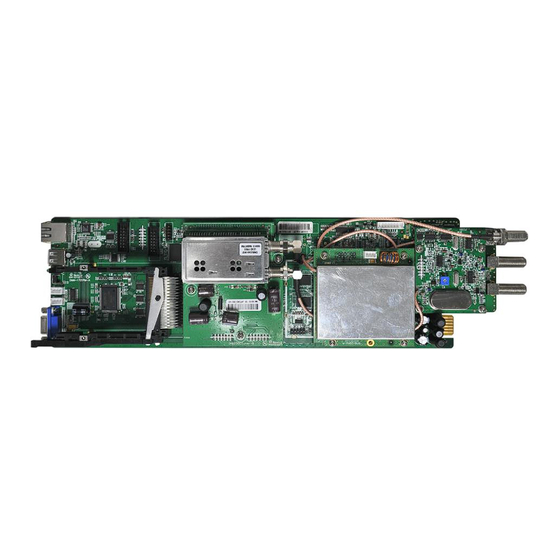

Dvb receiver and twin analog trans-modulator

Advertisement

DVB Receiver and Twin Analog
Trans-modulator
User Manual
http://www.pbi-china.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMM-1701PM and is the answer not in the manual?

Questions and answers

Summary of Contents for PBI DMM-1701PM

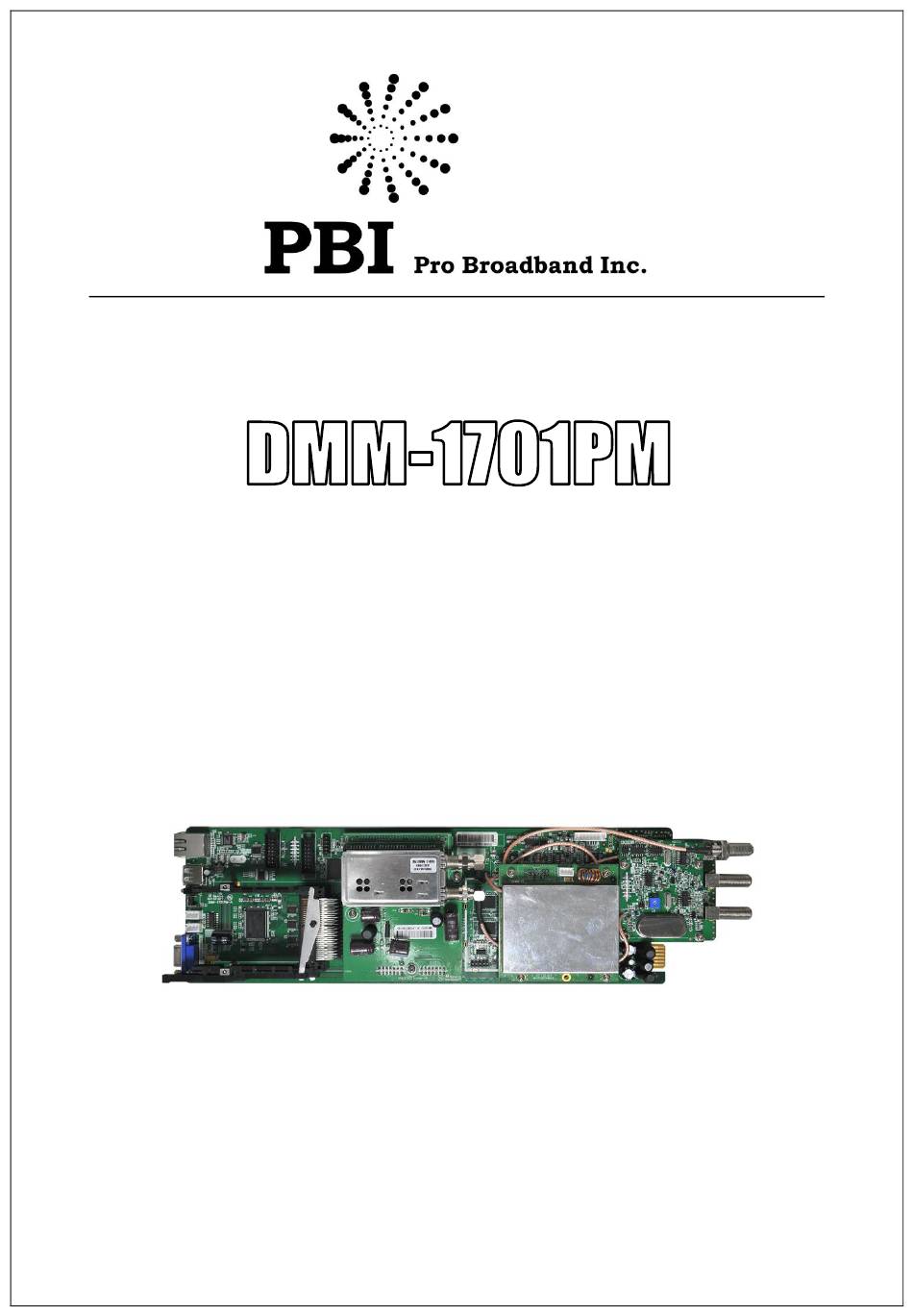

  • Page 1 DVB Receiver and Twin Analog Trans-modulator User Manual http://www.pbi-china.com...
  • Page 2: Table Of Contents

    Contents Notices ........................1 1 Overview ......................... 4 2 Features........................4 3 Technical Specifications ..................4 4 Order Information ....................7 5 Front panel and rear panel instructions ..............7 5.1 Front panel ....................7 5.2 Rear panel ....................8 6 Menu Operating Instructions Via DMM-1000CU .............
  • Page 3: Notices

    1701PM Notices COPYRIGHT (Copyright © 2012 Beijing Jaeger Communication Electronic Technology Co., Ltd.) Not to be copied, used or translated in part or whole without Beijing Jaeger prior consent in writing except approval of ownership of copyright and copyright law. WARRANTY This warranty does not cover parts which may become defective due to misuse of the information contained in this manual.
  • Page 4 1701PM POWER SOURCES • The product is not disconnected from the AC power source (mains) as long as it is connected to the power outlet or wall socket, even if the product is turned off. • If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall socket.
  • Page 5 Thank you for purchasing the DMM-1701PM twin digital to analog trans-modulator. This User Manual is written for operators/users of the DMM-1701PM to assist in installation and operation. Please read this user manual carefully before installation and use of the device.
  • Page 6: Overview

    MPEG-2\H.264 HD\SD definition, then trans-modulate these 2 programs by built-in modulators and output a combined signal via RF output port. With its full compliance to analog standards including PAL, NTCS and SECAM, DMM-1701PM is an ideal deployment for digital to analog system.
  • Page 7 1701PM DVB-T Input 1x F Type female, 75Ω(input) 1x F Type female, 75Ω(loop through output) Connector Type 48MHz~861MHz Input Frequency Range Input Signal Level -65 ~ -25dBm Tuner Bandwidth 6MHz, 7MHz, 8MHz Viterbi Error Correction 2/1, 2/3, 4/3, 5/6, 7/8 Guard Interval 1/4, 1/8, 1/16, 1/32 FFT mode...
  • Page 8 1701PM ≥55dB Audio SN Ratio 50μs(B/G, D/K, I), 75μs (M/N) Audio Pre-emphasis ± 1.5dB (40Hz~15KHz) Audio Frequency Response ≤1.2% Total Harmonic Distortion 40 ~ 100KHz peak to peak(D/K,B/G,I) Audio Modulation Deviation 50KHz peak to peak (M/N) 6.5MHz ± 5KHz (D/K) 6.0MHz ±...
  • Page 9: Order Information

    1701PM 4. Order Information DMM-1701PM-xx series Input type DVB-S2 DVB-T DVB-C MONO MONO MONO Video Audio PAL D/K 04S2 02S2 PAL D/K(Poland) 08S2 PAL B/G 12S2 14S2 NTSC 22S2 SECAM D/K 32S2 34S2 SECAM L 42S2 PAL-I 52S2 5. Front panel and rear panel instructions 5.1 Front panel...
  • Page 10: Rear Panel

    1701PM A3 Reset Used to restart the device. A4 Common Interface 2*CI Slots A5 Indicators Power: Green light means power supply is working well. Lock: Green light means tuner input signal is locked. AV-1: Green light means Built-in decoder1 is working well. AV-2: Green light means Built-in decoder2 is working well.
  • Page 11: Menu Operating Instructions Via Dmm-1000Cu

    1701PM 6. Menu operating instructions via DMM-1000CU Users are advised to restore factory setting of the machine before the first time using it. Users are advised not to change those temporarily useless parameters in order to avoid unnecessary fault. After power on, the Local IP address will be shown on the LCD of DMM-1000CU. User can press〔ENTER〕to get into the main menu.
  • Page 12: Status

    1701PM 6.1 Status: Tuner Tuner Status RF Frequency1 RF Frequency2 RF Level RSSI RF Audio Mode-1 RF Audio Mode-2 RF Output Mode RF Switch-2 RF Modulator Mode Service→Service Type Status Service Name Decoder-1 Provider Name Decoder-2 Video→Video PID Audio→Audio PID Slot-1 CAM Name Slot-2 CAM Name USB Status...
  • Page 13: Cofig

    1701PM 6.2 Config LNB Frequency Satellite Frequency Symbol Rate Tuner Input LNB Voltage LNB 22KHZ DiSEqC Program Video Standard Aspect Ratio Subtitle priority Decoder-1 Video Output Subtitile Lang Decoder-2 Close Cuption CVBS SUB Audio Level Audio Output Audio Mode Config Audio Priority BISS Mode→...
  • Page 14: Network

    1701PM 6.2.3 CI CI-Slot-1/2 Setup: Configure the parameters for deciphering programs. 6.2.4 RF Setting 1) RF Frequency1: Configure the RF frequency for outputting program1. 2) RF Frequency2: Configure the RF frequency for outputting program2. 3) RF Level: Configure the RF level. 4) RF Audio Mode-1: Configure audio mode for modulated program-1.
  • Page 15: Web Control

    Here users can upgrade software for this device. 7. Web Control DMM-1701PM can be controlled by Web. After connecting the control port to a PC, User can type IP address of DMM-1701PM in browser. The default IP address of 1701PM is 10.10.70.48, the default user name and password are “root”...
  • Page 16: Tuner Page

    1701PM 7.2 Tuner page User can check and configure parameters for tuner input. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) LNB Frequency (MHz): Check and configure the frequency of LNB. (2) Satellite Frequency (MHz): Check and configure the frequency of satellite.
  • Page 17: Ci Page

    1701PM 7.3 CI page Here user can configure and check parameters of CI. All programs will be listed here, user can select which programs should be descrambled, Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. 7.4 RF page Here user can configure and check parameters of modulation.
  • Page 18: Decoder-1/2 Page

    1701PM (2) RF Frequency-2(KHz): This parameter has to be 8MHz larger than Frequency 1, so it can‟t be assigned at user‟s will. (3) RF Level (dBuV): Configure the level for RF out. (4) RF Audio Mode-1: Configure the audio mode for built-in modulator1, user can select among “Stereo”, “Mono”...
  • Page 19 1701PM 7.5.2 Video User can check and configure video parameters for modulation. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Video Standard: User can select between “PAL” and “NTSC”. (2) Aspect Ratio: Select the aspect ratio among “Auto”, “4:3 Full”, “4:3 Letterbox”, “16:9 Full”...
  • Page 20: System Page

    1701PM User can check and choose the program for modulation. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Current Program: Check the current program being modulated. (2) Program List: All programs from TS/IP port will be listed at here, user can choose one program for modulation.
  • Page 21 1701PM Here user can configure and check system parameters of this device. 7.6.1 Device User can check information of this device. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Device Information: User can resign the device‟s name at will, and check the serial number.
  • Page 22 1701PM 7.6.3 Network User can check and configure parameters of local network. Click the button “Apply” or “Cancel” to submit or undo your new configuration, as it shown in figure below. (1) Local Settings: Configure parameters for web control, including “IP Address”, “Subnet mask”...
  • Page 23: Installation

    1701PM 8. Installation  Fix the device in the DMM-1000MF chassis.  Fix the front and rear penal on the DMM-1000MF.  Connect the power cable to DMM-1000MF. Wait for 8 to 10 seconds, while this will complete self inspection and configuration. The POWER Indicator LED will always light on during working.
