- Page 1 User’s Manual Brighten Your Digital View! DMM-2410D Quad Channels Receiver and Processor P/N.85E19-M0501 Rev: A www.pbi-china.com...
-
Page 2: Table Of Contents
DMM-2410D Quad Channels Receiver and Processor Contents Notice Before Using the Device 1 Overview 2 Features 3 Technical Specifications 4 Order Information 5 Block Diagram 6 Front panel and rear panel instructions 7 Operation instructions using DMM-1000CU programmer 7.1 Overview of the Menu 7.2 Description of menu 8 Web Control 8.1 Status... - Page 3 The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service, or the shop where you purchased the product. www.pbi-china.com...
- Page 4 DMM-2410D Quad Channels Receiver and Processor COPYRIGHTS Television programs, movies, video tapes, discs, and other materials may be copyrighted. Unauthorized recording of copyrighted material may be against the copyright laws in your region. Also, use of this product with cable television transmissions may require authorization from the cable television operator or transmitter/owner.
- Page 5 Therefore, the device has to be placed on a flat surface, leaving some space at the sides of the device. • When in operation, the internal temperature should not exceed the limit of 70C°. www.pbi-china.com...
-
Page 6: Overview

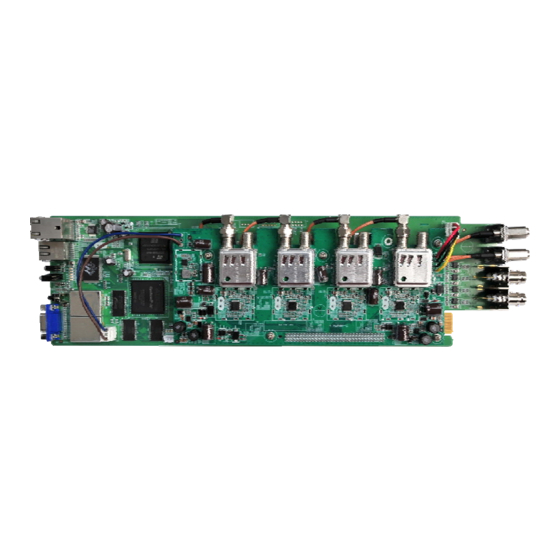

DMM-2410D Quad Channels Receiver and Processor DMM-2410D Quad Channels Receiver and Processor 1 Overview The DMM-2410D professional Quad DVB Demodulator has 4 independent tuners, 4 ASI outputs and 1 TS over IP port. It receives up to 4 TS streams with its tuner inputs and then remultiplexes and converts to TS/IP and ASI outputs. - Page 7 2. Simplex IPTV out mode: 550Mb/s Max. 3. Full Duplex DVB mode, Input: 80Mb/s Max., Output: 80Mb/s Max. Control & Monitoring Connector Type 1×RJ-45, 10/100 Base-T, for equipment IP Control Remote Control SNMP, HTTP (Web Interface), Proprietary HDMS (Headend Device Management System) www.pbi-china.com...
-
Page 8: Order Information
DMM-2410D Quad Channels Receiver and Processor Software Upgrade FTP Loader and Telnet Physical Power Supply DC 3.3V/5V/12V, supplied by DMM-1000MF or DMM-200MF chassis Power Consumption Weight 560g Storage Temperature -10 to 55 Operating Temperature 0 to 45 Operating Humidity 10 to 90%, non-condensed 4 Order Information Function DMM-2400D-S2/S... -
Page 9: Front Panel And Rear Panel Instructions
6 Front panel and rear panel instructions 7 Operation instructions using DMM-1000CU programmer NOTE: The DMM-1000CU Programmer is an universal programmer unit for PBI DMM products family. DMM-1000CU is a standalone product and not included in the package of DMM-2400D, please contact local sales agency for more information. -
Page 10: Overview Of The Menu
DMM-2410D Quad Channels Receiver and Processor 7.1 Overview of the Menu Users are advised to restore factory setting of the machine before the first time using it. Because of machine's too many functions, users are advised not to change those temporarily useless parameters in order to avoid unnecessary fault. - Page 11 UDP packet, valid range from TS/IP Output set TTL to the output IP packets, valid range Time To Live from 1~255 Min Delay/Max Reliability/Max Type Of Service Throughput/Min Monetary Cost/Normal Uni/Multi IP Address set the destination IP address www.pbi-china.com...
- Page 12 DMM-2410D Quad Channels Receiver and Processor set the destination port number, valid range Uni/Multi UDP Port from 1024~65531 ProMPEG FEC Enable/Disable Column FEC UDP Port Port Row FEC UDP Port Port 1D,5x5/1D,5x20/1D,10x10/2D,5x5/2D,5x20/2 ProMEG FEC Mode D,10x10 FEC Aligment Annex A/Annex B Test Drop Packets Uni/Multicast select Unicast or Multicast...
- Page 13 Unicast or Multicast IP addresses. IPTV Ouput 128 Channels IPTV SPTS/MPTS. Full Duplex: the IP I/O is configured as full duplex mode, which allows only one MPTS or SPTS over IP input and output in uni/multicast at the same time. www.pbi-china.com...
-
Page 14: Web Control
DMM-2410D Quad Channels Receiver and Processor 8. Web Control DMM-2410D has an integrated web server. This web server allows configuration and status requests with a standard web browser. First make sure the IP Control port is well connected in the network and can be pinged by the host PC. - Page 15 Brighten Your Digital View! Figure 8-3 Output Bitrate Figure 8-4 Tuner Status Figure 8-5 TS/IP Status www.pbi-china.com...
- Page 16 DMM-2410D Quad Channels Receiver and Processor 8.2 Configuration 8.2.1 Configuration - > Tuner All parameters for Tuners and ASI Output can be found under the page “Configuration”. Click the button "Apply" to submit your configuration or click the button "Cancel" to cancel and restore the previous settings.
- Page 17 TS/IP output 1-4 is forced linking with Tuner input 1-4 respectively and cannot be changed. (Note: the page below is displayed only when the TS/IP operation mode is Multiple Output mode. To change the TS/IP operation mode, please refer to chapter System-Device.) www.pbi-china.com...
- Page 18 DMM-2410D Quad Channels Receiver and Processor 8.3.1.2 Gigabit In Under Multiple output mode, the Gigabit Input is not available. 8.3.1.3 Local Settings Set parameters for the TS/IP output port. 8.3.2 Full-duplex Output Mode The pages below are displayed under Full-duplex mode. To change the TS/IP operation mode, please refer to System-Device.
- Page 19 Uni/Multi UDP Port: set the port number, valid range from 1~65535 ProMPEG FEC Switch: Enable or Disable the ProMPEG FEC 8.3.2.2 Gigabit In Under full-duplex operation mode, the device supports single uni/multicast reception. Set the uni/multicast target IP address and port number in the page. www.pbi-china.com...
-
Page 20: Configure
DMM-2410D Quad Channels Receiver and Processor Uni/Multicast: select Unicast or Multicast Source Identify:Enable or Disable. Source IP Address: set the multicast address for the incoming IP streaming. To receive a unicast streaming, the submenu can be ignored. Multicast IP Address: set the multicast address for the incoming IP streaming. To receive a unicast streaming, the submenu can be ignored. -
Page 21: Remux,
TS ID: Set the TSID of the new generated transport stream, valid range from 0 to 65535 decimal Insert EIT: ON: insert EIT into the output stream, EIT data may come from Tuner or IP input port OFF: EIT will not be inserted into the output stream. www.pbi-china.com... -
Page 22: System
DMM-2410D Quad Channels Receiver and Processor Remove CA:ON: remove the CA descriptors that are carried within the inputted TS over Tuner or IP OFF: keep the CA descriptors 8.5 System The system page gives all information of this device including device name, serial number, software version, and so on. - Page 23 Gateway: set the gateway address of the device MAC: display the MAC address of the device, cannot be modified by user 8.5.3 System -> Version User can check versions of various functional blocks of the device, as it shown in figure below. www.pbi-china.com...
- Page 24 DMM-2410D Quad Channels Receiver and Processor 8.5.4 System -> Login Set the login ID and password for the web management server of the device. 8.5.5 System -> Factory Default Click the button “Default” to restore the factory default settings to the device. Note: the IP address of the device and the operation mode of the Gigabit board will not be restored.
- Page 25 Brighten Your Digital View! 8.5.6 System -> System Reboot User can reboot this device by clicking the button “Reboot”. 8.5.7 System -> Upgrade User can upgrade software of this device via Web browser. www.pbi-china.com...
-
Page 26: Installation
DMM-2410D Quad Channels Receiver and Processor 9. Installation Fix the DMM-1100MF or DMM-210MF chassis into the standard EIA 19” rack. Insert the device into the fixed DMM-1100MF or DMM-210MF chassis. Caution: the DMM-2200P can be accommodated in the DMM-1000MF or DMM-200MF chassis only. - Page 27 No.3 FengZhi East Road, XiBei Wang Town, Hai Dian District, Beijing, 100094, China Tel +86(0)10 57802000 Fax:+86(0)10 57802016 Mail mkt@pbicn.com/sales@pbicn.com...
