- Page 1 S423/C/OPT SONDA OSSIGENO OTTICA OPTICAL OXYGEN PROBE MANUALE TECNICO / TECHNICAL MANUAL P/N: …………………. Rev. 0 Ver. 1.0 EDIZIONE Febbraio 2014 / EDITION February 2014...

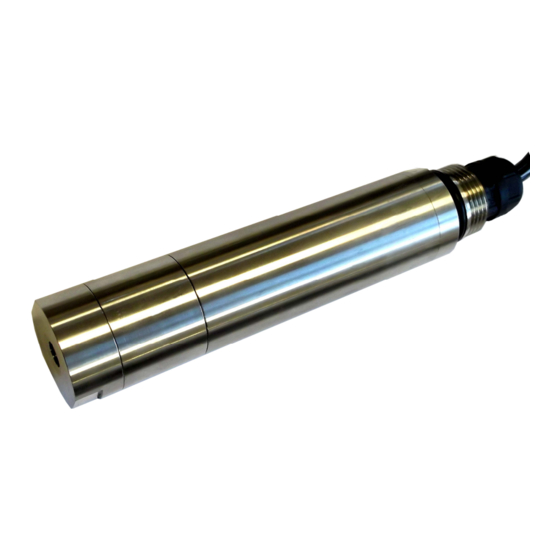

- Page 2 The S423/C/OPT probe is used for the optical measure of oxygen in pure and process waters. The principle of measurement is based on the effect of dynamic luminescence quenching by molecular oxygen. Applications • Measure of oxygen in wastewater • Measure of oxygen in primary, industrial, recirculating water Features and benefits •...
- Page 3 ]: Oxygen content Principle of dynamic quenching of luminescence by molecular oxygen (1) Luminescence process in absence of oxygen (2) Deactivation of the luminescent indicator molecule by molecular oxygen S423/C/OPT Optical oxygen probe – Data Sheet...
- Page 4 Composition of the supply The supply consists of a single package containing the following parts: 1. 1 S423/C/OPT Optical Oxygen Probe with a 10 m cable 2. 1 Technical Manual for instructions Electric installation Turn off the instrument, connect the cables of the probe to the terminal block of the meter.
- Page 5 Hydraulic installation The S423/C/OPT probe is supplied with a circular ip67connector for the connection to the 42 and 50 series units, and can be provided with the appropriate probe holder S315 / O, available in various tube lengths. Together with the probe holder is provided a device for positioning the probe at 45°...
- Page 6 To check the removable protection cap − To assure the integrity of the membrane placed on the top of the − probe To check the cable integrity, the correct connection to the instrument − and on the probe. S423/C/OPT Optical oxygen probe – Data Sheet...
- Page 7 Pay special attention to the formation of air bubbles: these may interfere with the oxygen measure. To overcome this problem, use the kit of inclination to 45° of the probe, so that the bubbles can slip upward. S423/C/OPT Optical oxygen probe – Data Sheet...
- Page 8 S423/C/OPT PVC Optical Oxygen and Temperature Probe 9700832067 S423/C/OPT 4-20mA Optical Oxygen and Temperature Probe 9700833067 S423/C/OPT 4-20mA PVC Optical Oxygen and Temperature Probe 9400410134 Luminescent membrane with AISI316 support for S423/C/OPT 9400410135 Luminescent membrane with PVC support for S423/C/OPT CHEMITEC s.r.l.
