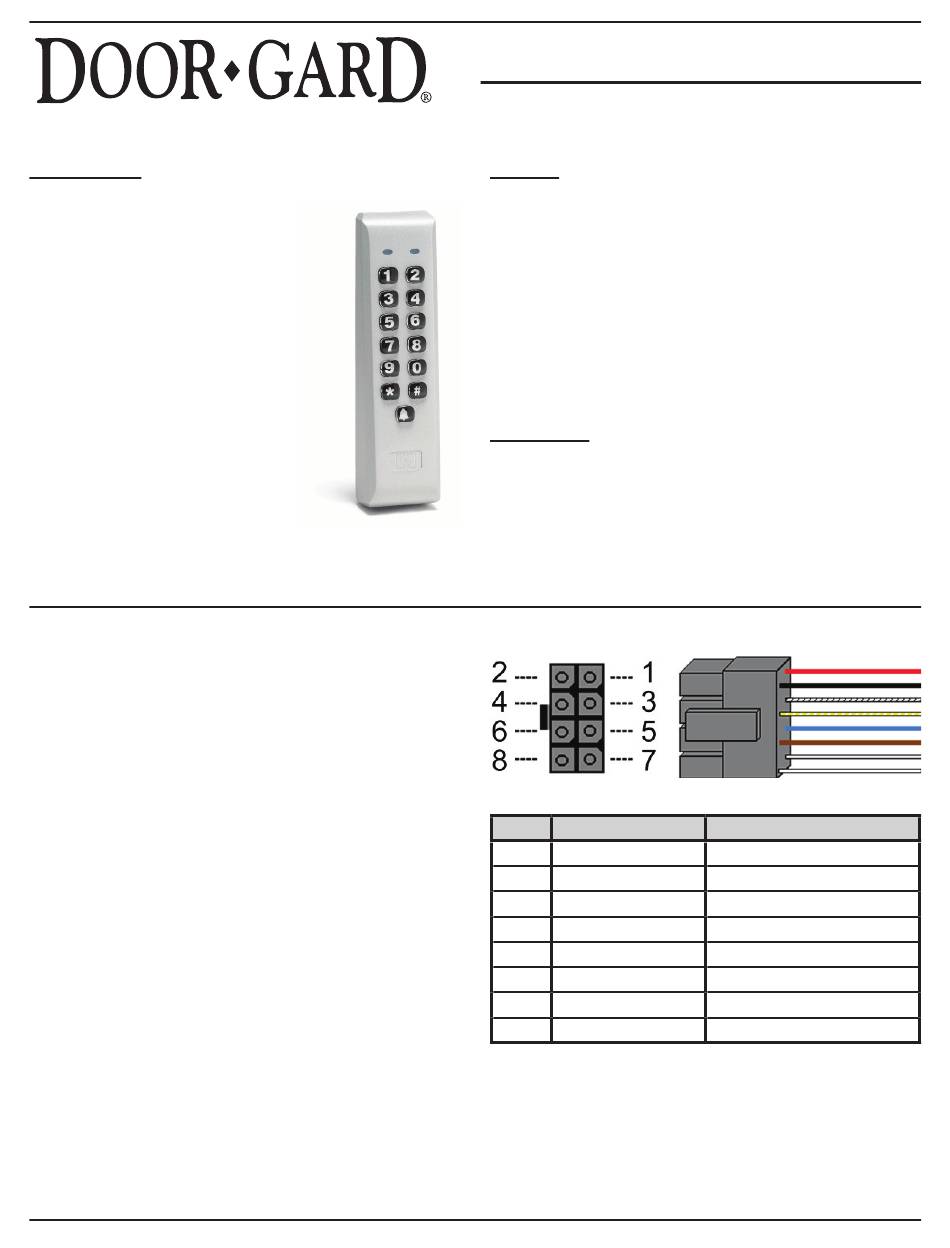

212iLM Keypad Installation & Programming
Specifi cations
Case Dimensions:
6-1/2" L x 1-3/4" W x 1-1/8" D
Electrical:
Voltage: 12-24 VAC/DC
Current:
53mA@12VDC
72 mA @ 24 VDC
95 mA@12 VAC
108 mA @ 24 VAC
Relay Contacts:
Main Relay (controller): 2 Amps
Bell Relay:
Form A; 1 Amp @ 30 VAC/DC
Environmental:
-20º F to 130° F
For Indoor and Outdoor Use
Description:
The Door  ♦   G ard Series 212iLM keypad combines
elegant looks with a mullion mount design in a rugged,
vandal resistant case, which you can use for almost
any application. The 212iLM has hardened backlit keys
designed to perform in medium to high traffi c areas and
in rough duty environments. The electronics are also
conformal coated, which makes the keypad suitable for
indoor or outdoor applications.
Basic Operation:
To gain access through the door enter your code
(1-6 digits) followed by the ✱ key on the keypad.
Packing List:
(1) 212iLM Keypad
(1) Eight-Conductor Wire Harness
(1) Mullion Hardware Pack
(1) 5/64" Allen Wrench
(1) Anti-Oxidant Grease Pack
(1) Installation/Programming Manual
6-051344 X2
Installation & Programming Instructions
Note: This product is designed to be installed and serviced
Features
120 User Capacity
Programmable Relay Time (0 to 99 seconds)
Request to Exit (REX) Input
Vandal Resistant Case
Sealed for Indoor or Outdoor Applications
LED's for Relay Status Indication
Bell Output
Surface Mount
Illuminated Hardened Keys
Rated for Greater than One Million Key Cycles
Applications
Low to Medium/Heavy Traffi c Areas
Rough Service Environments
Mullion Frame Mounting
Dimly Lit Areas
Wire Harness Confi guration:
Pin
Wire Color
1
Red
2
Black
3
White/Black
4
White/Yellow
5
Blue
6
Brown
7
White
8
White
212iLM Keypad
by security and lock industry professionals.
Signal Name
Power (+)
Power (-)
REX
Main Relay NC
Main Relay Common
Main Relay NO
Bell Relay Contact (A)
Bell Relay Contact (B)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Door-Gard 212iLM and is the answer not in the manual?

Questions and answers

Summary of Contents for Nortek Door-Gard 212iLM

  • Page 1 212iLM Keypad Installation & Programming 212iLM Keypad Installation & Programming Instructions Note: This product is designed to be installed and serviced by security and lock industry professionals. Specifi cations Features Case Dimensions: ● 120 User Capacity 6-1/2” L x 1-3/4” W x 1-1/8” D ●...
  • Page 2: Keypad Installation Procedure

    212iLM Keypad Installation & Programming Keypad Installation Procedure: Step 1: Drill through the back plate using a 11/64” bit. Use the template on the back page to accurately mark the mounting holes before drilling. Then drill the mounting holes with a 9/64” drill bit. Also drill the hole for the wires. This may vary depending on the number of conductors required.
  • Page 3 212iLM Keypad Installation & Programming Wiring an Electromagnetic Lock (Maglock) 1. Connect the red (V+) and black (V-) wires to your power supply. 2. Connect the blue wire (relay common) to positive on your power supply. 3. Connect the white/yellow wire (relay normally closed) to the positive connection on your maglock. 4.
  • Page 4 212iLM Keypad Installation & Programming Shunting a Normally Closed Zone 1. Connect the red (V+) and black (V-) wires to your power supply. 2. Connect the blue wire (relay common) to the common connection on the alarm contacts. 3. Connect the brown wire (relay normally open) to the normally open connection on the alarm contacts. A fi...
  • Page 5 212iLM Keypad Installation & Programming Wiring the Bell Output to a Speaker: The 212iLM keypad has a built in bell button, which triggers a relay output when pressed. This relay is normally open and the contact closes when triggered. You can use this relay output to trigger devices that require a momentary closure, such as a doorbell.
  • Page 6 212iLM Keypad Installation & Programming Programming the 212iLM Keypad To program the 212iLM you fi rst must enter program mode. To enter program mode enter the following on the keypad: 99 # master code ✱ (default master code is 1234). Keypad Default Settings Option Default Setting...
  • Page 7: Programming Examples

    212iLM Keypad Installation & Programming Programming Examples Changing the Master Code The following example show how to change the master code to 4875 from the default of 1234. 1. Enter Program Mode 99 # 1234 ✱ 2. Program New Master Code 1 # 4875 ✱...
  • Page 8: Troubleshooting

    Otherwise contact the power supply manufacturer or Nortek Security & Control if there is a problem with the keypad. You also may try power the keypad with a 12V battery to verify operation.
  • Page 9 212iLM Keypad Installation & Programming Program Mode Loopback If you’ve forgotten the local program code use the following loopback connection to enter program mode. Power down the unit, short the wires in the confi guration illustrated, then power the unit back up. The yellow LED should be fl ashing. Now change your local program code or reset the unit.
  • Page 10: Limited Warranty

    212iLM Keypad Installation & Programming Limited Warranty This Nortek Security & Control product is warranted against defects in material and workmanship for twenty four (24) months. This warranty extends only to wholesale customers who buy direct from Nortek Security & Control or through Nortek Security &...
  • Page 11 212iLM Keypad Installation & Programming PAGE LEFT BLANK INTENTIONALLY 6-051344 X2...
  • Page 12 212iLM Keypad Installation & Programming 212ilM Mounting Template Copyright © 2015 Nortek Security & Control LLC 6-051344 X2...
