Product Introduction, Akva Vita Ii Td - Danfoss Akva Vita II TD Instructions For Installation And Use Manual

Instructions for installation and use
2.

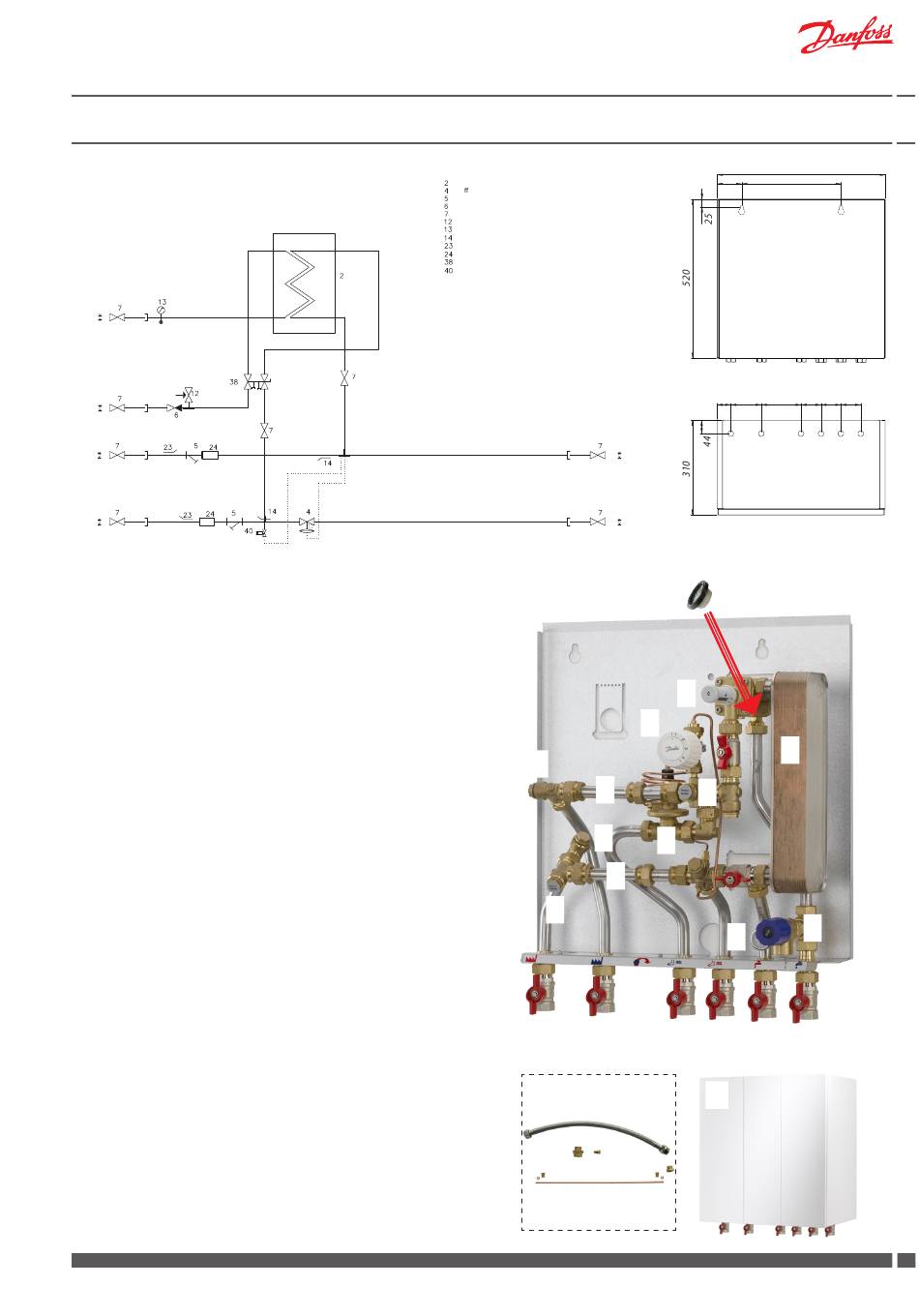

Product introduction, Akva Vita II TD

DHW
DCW
DH.
SUPPLY
DH.
RETURN
Principal components
1. Plate heat exchanger, brazed, domestic hot water
2. Domestic hot water controller PM2+P
3. Bypass thermostat, Danfoss FJVR
4. Differential pressure controller, AVPL
5. Safety valve
6. Fitting piece for meter
7. Thermometer, DHW
8. Dirt strainer
9. Sensor pocket
13. White-painted cover
F. Filter on cold water supply
C. The unit has been prepared for recirculation.
Fitting set for recirculation connection available as extra equipment
Standard item number
Akva Vita II TD H04.393.001
Akva Vita II TD with cover H04.393.001K
Accessories available as extra equipment (mounting on site)
Recirculation pipe set - VVS no. 374976.810
For systems that feature DHW recirculation.
Danfoss Expansion Unit - VVS no. 374972.820.
The expansion unit is available as extra equipment for
systems where a floor drain is to be avoided.
(Must not be used in systems with domestic hot water recirculation).
Booster set/pressure intensifier - VVS no. 374994.820.
The booster set can be connected as extra equipment in
areas with low district heating differential pressure.
1" Fitting set for meter (max. 130 mm) - VVS no. 374929.918
For meters with 1" connectors.
Danfoss District Energy
Plate heat exchanger, domestic hot water, type Danfoss XB06H-1
Di erential pressure controller, Danfoss AVPL 0.1–0.25 bar
Dirt strainer, REDAN, embedded in T-piece
Non-return valve
Ball valve
Safety valve, domestic hot water, 10 bar
Thermometer
Pressure outlet 1/2"
Sensor pocket
Fitting piece for meter 3/4" x 110 x 165 mm
DHW controller, PM2+P
Danfoss FJVR for by-pass/circulation
(By-pass)
(factory connection)
VI.GP.U2.02
TD & S substations
HE
SUPPLY
HE
RETURN
2
3
9
6
8
9
4
6
8
C 13
550
80 325
1 2 3 4 5 6
45 100 130 65 65 65
Wall
Top view
F
1
5
7
DKDHR
3 3
