Summary of Contents for Danfoss Akva Vita II TD
- Page 1 MAKING MODERN LIVING POSSIBLE Akva Vita II TD & S Akva Lux II / Akva Les II TD & S Instructions for installation and use Danfoss District Energy...
-
Page 2: Table Of Contents
Installation instructions - specially for S substations ................................. 12 Installation instructions - recirculation connection ................................13 Adjustment and commissioning, Akva Vita II TD ................................. 14 Adjustment and commissioning, Akva Lux II TD & Akva Les II TD ..........................15 Adjustment and commissioning, Akva Vita II S ..................................16 Adjustment and commissioning, Akva Lux II S &... -
Page 3: Product Introduction, Akva Vita Ii Td

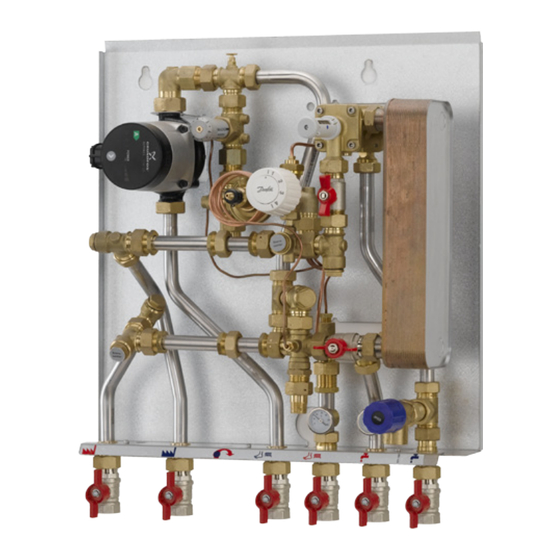

Instructions for installation and use TD & S substations Product introduction, Akva Vita II TD Plate heat exchanger, domestic hot water, type Danfoss XB06H-1 Di erential pressure controller, Danfoss AVPL 0.1–0.25 bar Dirt strainer, REDAN, embedded in T-piece Non-return valve... -
Page 4: Product Introduction, Akva Lux Ii Td / Akva Les Ii Td
14 Pressure outlet 1/2" 23 Sensor pocket 24 Fitting piece for meter, 3/4" x 110/165 mm 38 Domestic hot water controller, Danfoss PTC2 + P 3,0 40 Danfoss FJVR for by-pass/circulation ------------------------------ 61 Circulation pipe (not part of the delivery) 62 Non-return valve (not part of the delivery) 64 Pump, DHW recirc. -
Page 5: Product Introduction, Akva Vita Ii S
Instructions for installation and use TD & S substations Product introduction, Akva Vita II S Plate heat exchanger, domestic hot water, type Danfoss XB06H-1 Differential pressure controller, Danfoss AVPL 0.1-0.25 bar Dirt strainer, REDAN, embedded in T-piece Non-return valve Ball valve... -
Page 6: Product Introduction, Akva Lux Ii S / Akva Les Ii S
TD & S substations Product introduction, Akva Lux II S / Akva Les II S 72,5 Plate heat exchanger, domestic hot water, type Danfoss XB06H-1 Di erential pressure controller, Danfoss AVPL 0.1-0.25 bar Dirt strainer, REDAN, embedded in T-piece Non-return valve Ball valve Pump, Grundfos Alpha2 L 15–60 130 230V... -
Page 7: Instructions For Use, General
Alternatively, the heating circuits can be regulated using fully auto- If the domestic hot water is discoloured or malodorous, shut off matic Danfoss ECL weather compensation equipment (not standard). all ball valves on the substation notify all users and call for profes- sional assistance without delay. -
Page 8: Instructions For Use, Initial Adjustment / Setting
TD & S substations Enduser instructions, Initial adjustment/setting Domestic hot water control Danfoss PM2+P controller (Fig. 1) for domestic hot water. Set the DHW Fig. 1 temperature by turning the adjuster lever towards red (hotter) or blue (colder). Start by turning the lever clockwise – until the pin is opposite the blue dot. -
Page 9: Installation Instructions, Safety And Handling
The substation is made of materials that cannot be disposed of together with household waste. Close all energy sources and disconnect all connection pipes. Disconnect and dismantle the product for disposal in accordance with the appli- cable local regulations for the disposal of the individual components. Danfoss District Energy VI.GP.U2.02 DKDHR... -
Page 10: Installation Instructions, Getting Started
25. 12. NB! Heating and cooling of the system may cause leaks. Therefore it may be necessary to retighten the connections in the period after commissioning. DKDHR VI.GP.U2.02 Danfoss District Energy... -
Page 11: Installation Instructions, General
Safety valve – cut-out in the insulation cover On fully insulated models, it is necessary to cut a hole in the cover (for the blow-out pipe from the safety valve) – see the photo to the right. 11 11 Danfoss District Energy VI.GP.U2.02 DKDHR... -
Page 12: Installation Instructions - Specially For S Substations
Actuator AMV 150 repairs or in the event of an emergency. S substations are available with Danfoss ECL 210 as extra equipment. Supply voltage: 230 V AC – 50 Hz Power consumption: 8 VA... -
Page 13: Installation Instructions, Recirculation Connection
Please note that substations fitted with Danfoss AVE expansion units must not be used on systems with DHW recirculation. The photo to the right presents an Akva Lux II S substation, but in prin- ciple, the recirculation connection procedure can be carried out in the same way, regardless of substation type. -
Page 14: Adjustment And Commissioning, Akva Vita Ii Td
Fig. 2 By-pass function (factory connection). The Akva Vita II TD substations are supplied with the a Danfoss FJVR bypass thermostat (Fig. 2), so that when water is tapped, the water heater immediately starts to produce hot water. We re-commend setting of the thermostat in pos. -
Page 15: Adjustment And Commissioning, Akva Lux Ii Td & Akva Les Ii Td
Fig. 2 By-pass function (factory connection). The Akva Lux II / Les II TD substations are supplied with the a Danfoss FJVR bypass thermostat (Fig. 2), so that when water is tapped, the water heater immediately starts to produce hot water. We recommend setting of the thermostat in pos. -
Page 16: Adjustment And Commissioning, Akva Vita Ii S
The Akva Vita II S substations are supplied with a bypass thermostat – Fig. 2 Danfoss FJVR (Fig. 2) – so that when water is tapped, the water heater immediately starts to produce hot water. We recommend setting of the thermostat to pos. 3. If you have to wait a long time (i.e. more than 20 sec.) for hot water, it may be necessary to position the thermostat... -
Page 17: Adjustment And Commissioning, Akva Lux Ii S & Akva Les Ii S
Bypass function (factory connection). The Akva Lux II / Les II S substations are supplied with a bypass thermo- stat – Danfoss FJVR (Fig. 2) – so that when water is tapped, the water Fig. 2 heater immediately starts to produce hot water. We recommend setting the thermostat to pos. -
Page 18: Adjustment And Commissioning Of S Substations, Heating Circuit
Danfoss ECL 210 The temperature for the heating circuit can be controlled electronically by a Danfoss ECL 210 controller. The supply temperature will then be controlled in relation to the outdoor temperature. The ECL Comfort 210 controller is loaded with a selected application by means of an ECL Application Key (Plug-&-Play). - Page 19 – taking into account cooling and power consumption. Pump – Wilo Yonos OEM, systems with Danfoss ECL On systems with ECL controller turn the red switch to the right (constant curve) and set it to “Max. pos. ” initially. Then set the pump to the lowest...
-
Page 20: Operation And Maintenance
This will remove any dirt deposits that may have built up in the exchanger. If rinsing with clean water is not sufficient, the exchanger can also be cleaned by circulating a cleaning agent approved by Danfoss (e.g. Kaloxi cleaning fluid) through the exchanger. Kaloxi cleaning fluid is environmentally friendly and can be disposed off through the standard sewer system. - Page 21 Please note that the connections may feature EPDM gaskets! There- fore, it is important that you DO NOT OVERTIGHTEN the pipe connections. Overtightening may result in leaks. Leaks caused by over-tightening or failure to retighten connections are not covered by the warranty. 21 21 Danfoss District Energy VI.GP.U2.02 DKDHR...
-
Page 22: Troubleshooting
Set the pump to a higher step – see the (not all system types). instructions for the heating system. Air pockets in the system. Vent the system thoroughly – see the instructions. Noise from unit Non-return valve in mixing circuit defective Replace non-return valve. DKDHR VI.GP.U2.02 Danfoss District Energy... - Page 23 Discoloured water Plate heat exchanger short-circuited. Replace the plate heat exchanger. (during a protracted period) Replace the plate heat exchanger or clean Lack of hot water pressure Calified plate heat exchanger. it with acid. 23 23 Danfoss District Energy VI.GP.U2.02 DKDHR...
-
Page 24: Eu Declaration Of Conformity
Declares under our sole responsibility that below products including all available power and control options: Akva Les II TD & S / Akva Lux II TD & S Akva Vita II TD & S Main components: See instruction. Covered by this declaration is in conformity with the following directive(s), standard(s) or other norma- tive document(s), provided that the products are used in accordance with our instructions. -
Page 25: Commissioning Certificate
Over-tightening may result in leaks. Leaks caused by overtightening or failure to retighten connections are not covered by the warranty. To be filled-out by the installer. This substation has been retightened, adjusted and commissioned on the: by Installer: Date/Year Company name (stamp) 25 25 Danfoss District Energy VI.GP.U2.02 DKDHR... - Page 26 26 DKDHR VI.GP.U2.02 Danfoss District Energy...
- Page 27 27 27 Danfoss District Energy VI.GP.U2.02 DKDHR...
- Page 28 Danfoss Redan A/S · District Energy · Omega 7, Søften · DK-8382 Hinnerup Tel. +45 87 43 89 43 · Fax: +45 87 43 89 44 · redan@danfoss.com · www.redan.danfoss.dk VI.GP.U2.02 Produced by Danfoss Redan A/S © 06/2012...
