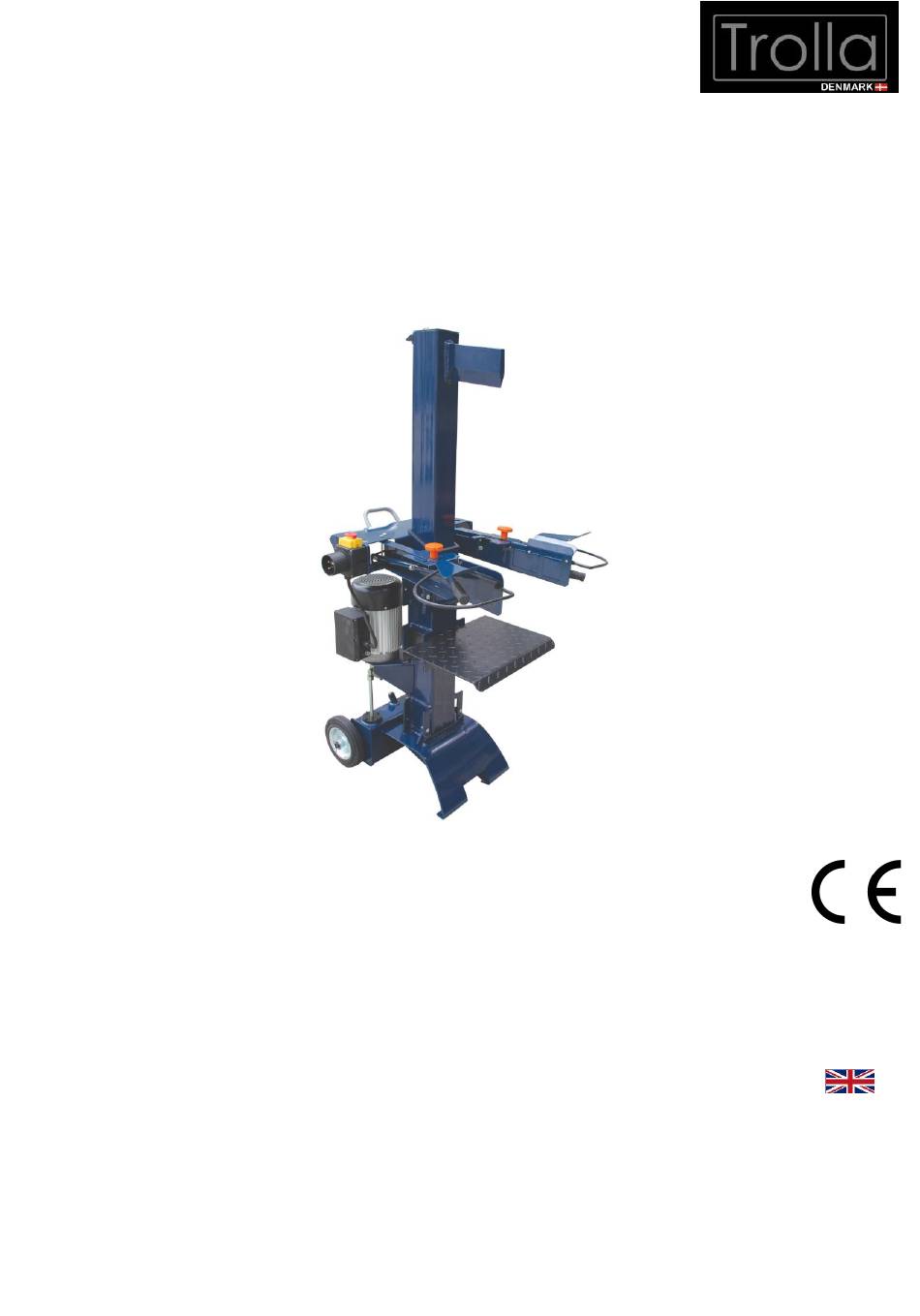

Log splitter 8 tons
Artikel nr.: 12242
Version: 2019/01
EN – Operating manual
Dear Customer,
Congratulations on your new Trolla product. We hope you will enjoy it.
Checkout with your new Trolla product may contain small parts, therefore save all
packaging until the product is fully assembled. The product can be attached to the
package be careful when unpacking the product is not damaged. Read the mounting
instructions carefully before the product is assembled and put into service. We
recommend that the bill be checked immediately on opening the package.
Carefully read the instruction manual before you use this machine,
and save this instruction manual for future reference.
1
Advertisement
Table of Contents
Related Manuals for Trolla 12242
Summary of Contents for Trolla 12242
- Page 1 Dear Customer, Congratulations on your new Trolla product. We hope you will enjoy it. Checkout with your new Trolla product may contain small parts, therefore save all packaging until the product is fully assembled. The product can be attached to the package be careful when unpacking the product is not damaged.
-
Page 2: Machine Overview
1. Machine overview 1. Transport handle 6. ON/OFF switch 2. Splitting knife 7. Motor with hydraulic pump 3. Operating levers 8. Oil dipstick 4. Work table 9. Wheel set 5. Power connection 10. Splitter center column... -
Page 3: Please Read First
2. Please read first! Read these instructions before initial operation. Pay special attention to the safety instructions. If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the machine! Dispose of the packing in an environmentally friendly manner. Take to a proper collecting point. - Page 4 – Do not operate machine near inflammable liquids or gases. (3) This machine shall only be started and operated by a person familiar with log splitters and who is at all time aware of the dangers associated with the use of such a machine (4) Keep bystanders, particularly children, out of the danger zone.
- Page 5 Each time before starting up the machine, check if for signs of possible damage. Before proceeding to use the machine, carefully inspect all safety equipment, safety systems, and any slightly damaged parts to ensure that these function trouble-free and as intended. Check to see that all moving parts work properly and do not jam. All parts must be correctly installed and meet all conditions necessary for the proper operations of the machine.
- Page 6 Danger of personal injury. Body parts and clothing can be caught by moving parts. When operating this splitter, do not place your hands under the splitting knife. Protect your fee from falling pieces of wood. Do not remove or disable safety devices. Do not clean, service or adjust this machine during operation.
-
Page 7: Special Product Features
3.5 Symbols used throughout these instructions Danger! Indicates risk of personal injury or severe material damage. Risk of electric shock! Risk of personal injury by electric shock. Caution! Risk of material damage. Advisory note: Supplementary information. 4. Special product features ... - Page 8 machine’s nameplate. Fuse protection by a residual current device (RCD) of 30 mA fault current sensitivity. System impedance Z at the interconnection point (house service max. connection) 0.35 Ohm maximum. Note Check with your local Electricity Board or electrician if in doubt whether your house service connection meets these requirements.
-
Page 9: Operation
5. Turn the machine on again – The splitting knife will automatically travel upwards. 6. Operation Danger! Before any operation, please loosen the bleed screw (1) as the following step: 1. There is a bleed screw (1) on the oil tank, during transportation, it is tightened in order to avoid the oil leakage. - Page 10 Risk of personal injury and crushing by moving parts! Do not operate the machine without installed safety guards. When the splitter is turned on, the splitting knife immediately travels to the top of its travel automatically. Be sure that there is about 1 meter of clearance above the splitting knife.
-
Page 11: Care And Maintenance
knife moves downward to split the log. Press only one operating lever downward – The splitting knife stops. Release both operating levers – The splitting knife moves back upward to its start position. The splitting knife stops automatically in the upper or lower position (end of travel). - Page 12 Dispose of hydraulic oil in an environmentally friendly manner at a proper waste oil collection point. When topping up or changing the hydraulic oil, be sure to use only approved types of oil (see “Technical Specifications”). Replace damaged parts, especially safety devices, only with genuine replacement parts since parts not tested and approved by the equipment manufacturer can cause unforeseeable damage.
- Page 13 before reinstalling it). 3. Screw the oil filter back into the oil suction line fitting. 4. Repeat the action as the first step, and tighten the nut into the pump. 7.3 Machine storage Lower the splitter column fully, and with it in this position, turn off the splitter.
-
Page 14: Troubleshooting
8. Repairs Danger! Repairs to electric tools must be carried out by qualified electricians only! Electric tools in need of repair can be sent to the service center of your local dealer. 9. Trouble shooting Danger! Before carrying out any repair service of maintenance work, always: Switch machine OFF Unplug power cable... -
Page 15: Technical Specifications
10. Technical specifications Electrical data Voltage 230V~ Frequency 50 Hz Protection class IP54 Attention! Through poor conditions of the electrical MAINS, shortly voltage drops can appear when starting the EQUIPMENT. This can influence other equipment (eg. Blinking of a lamp). If the MAINS-IMPEDANCE Zmax<0.426OHM, such disturbances are not expected. -
Page 16: Parts List
Parts List Q’ty Part code Description Material Remark GB/T70.1-2000 Bolt Controlling pivot Q235A GB/T845-1985 Screw Aluminum end (A) YL102 GB/T889.1-2000 Locking nut Sliding valve GB/T3452.1-92 O shape sealing ring Valve body GB/T3452.1-92 O shape sealing ring Adaptor Nylon pipe GB/T894.1-86 Retaining ring Rolling wheel Shaft for wheel... - Page 17 Q’ty Part code Description Material Remark GB/T70.1-2000 Screw GB/T93-1987 Elastic washer Adjusting block Q235A Connecting rod GB/T889.1-2000 Locking nut GB/T70.1-2000 Screw Chain GB/T97.1-2002 Flat washer Hook for chain Q235A GB/T6170-2000 Nut Upper cover GB/T889.1-2000 Locking nut Plate for chain Q235A GB/T70.1-2000 Screw Wedge body...
- Page 18 Q’ty Part code Description Material Remark Clip tube Q235A GB/T5781-2000 Bolt Position block Q235A Machine frame Insert Plastic protection\ GB/T12-1988 Coach bolt GB/T5781-2000 Bolt Left (right) guard Q235A Knob Left (right) guard Q235A GB/T12-1988 Coach bolt Controlling handle Q235A Knob Work table GB/T845-1985 Screw...
- Page 19 Q’ty Part code Description Material Remark O shape retaining ring GB/T8959.1-86 Steel retaining ring Q235A GB/T3452.1-92 O shape sealing ring Y shape sealing ring GB/T10708.3-89 Dustproof ring GB/T894.1-86 Retaining ring Cylinder assembly GB/T889.1-2000 Locking nut GB/T70.1-2000 Screw...
