Neuralog NeuraJet17 User Manual

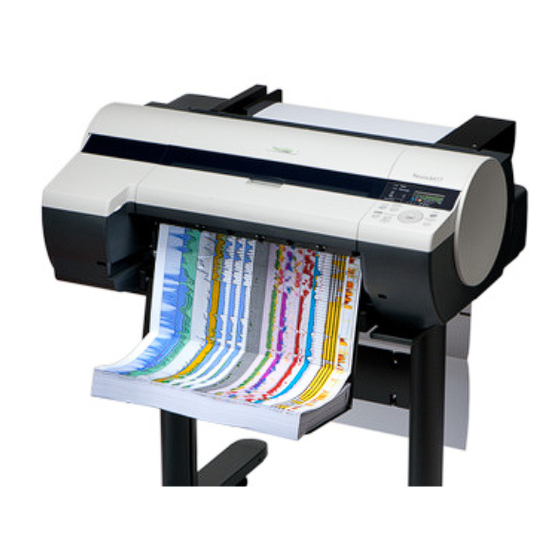

Printing well logs and other continuous form documents
Hide thumbs
Table of Contents

Advertisement

Quick Links

NeuraJet17
User Guide
Guide for Printing Well Logs and other Continuous Form Documents
4800 Sugar Grove Blvd., Suite 200
Stafford, TX 77477
1-281-240-2525
www.neuralog.com
support@neuralog.com
© 2014 Neuralog

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NeuraJet17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neuralog NeuraJet17

Summary of Contents for Neuralog NeuraJet17

  • Page 1 NeuraJet17 User Guide Guide for Printing Well Logs and other Continuous Form Documents 4800 Sugar Grove Blvd., Suite 200 Stafford, TX 77477 1-281-240-2525 www.neuralog.com support@neuralog.com © 2014 Neuralog...
  • Page 3 NeuraJet 17 User Guide Guide for Printing Well Logs and other Continuous Form Documents This User Guide provides answers to many questions about setup, operation and troubleshooting for the NeuraJet17. Please contact Neuralog support if you need further assistance. Phone: 1-281-240-2525 Fax: 1-281-240-2526 Email: support@neuralog.com...
  • Page 4 NeuraLaserColor® are all registered trademarks of Neuralog, Inc. NeuraView™ is a trademark of Neuralog. Canon is a registered trademark of Canon, Inc. All other products that are referred to in the document may be either trademarks and/or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks.

  • Page 5: Table Of Contents

    1.2.8 Well Log Paper .................... 6 1.2.9 Well Log ....................... 6 1.2.10 Well Log Printing Application ............... 6 2 NeuraJet17 Setup and Installation ................. 7 Printer Setup ...................... 7 2.1.1 Location ....................... 7 2.1.2 Unpacking the NeuraJet17 Box ..............8 2.1.3...
  • Page 6 Setting up Standard Log Forms for Wide Printing ......... 31 2.12 Installing and Using the Status Monitor ............33 2.13 Power Saver Mode ..................34 3 Printing Applications ..................... 35 Neuralog Applications ..................35 3.1.1 NeuraView ....................35 3.1.2 NeuraLog ....................38...
  • Page 7 3.1.3 NeuraSection ..................... 38 Other Well Log Viewing Applications ............... 41 3.2.1 Adobe Acrobat ................... 41 3.2.2 PDSView ....................42 3.2.3 BlueView ....................42 3.2.4 PreView ..................... 42 3.2.5 LogView Pro ....................42 3.2.6 Atlas MetaFile Viewer ................42 3.2.7 WellSight ....................
  • Page 8 Print Speed ...................... 50 Cancelling a Print Job ..................51 5 Maintaining the Printer ..................53 Cleaning Routines .................... 53 5.1.1 Automatic Cleaning Routines ..............53 5.1.2 Manual Cleaning Routines ................. 53 5.1.3 Printing a Test Pattern ................54 5.1.4 Capping .....................
  • Page 9 GoTo Meeting Support ................69 7.2.5 www Support ..................... 69 Downloading the latest NeuraJet17 Driver and Documents Release ....69 Packaging the Printer for Return ..............70 8 Appendix – Example of Setting up a Private Network ........71 9 Appendix – Example of Setting up the Print Driver ..........73...
  • Page 10 10.1 Top Cover (Inside) ..................79 10.2 Carriage ......................80 10.3 Ink Tank Cover....................80 11 Appendix – Compliances and Certificates ............83 11.1 Waste from Electrical and Electronic Equipment (WEEE) Directive....83 11.2 Electromagnetic Compatibility Test Report ........... 83 11.3 FCC Compliance Declaration ...............

  • Page 11: Getting Started

    • LED – Small green light on Power Box indicating paper mark signals are present in the CFA. While the printer may be capable of longer prints, Neuralog has tested and certified documents from 4 to 500 feet. Printing ability and performance is usually limited by electronic file size, rather than physical length.

  • Page 12: Paper Stacker

    NeuraJet17 Continuous Form Attachment The Continuous Form Attachment NeuraJet17C is manufactured by Neuralog and comes attached to the NeuraJet17 print engine to allow for continuous form printing. 1.2.3 Paper Stacker The Paper Stacker is attached to the front of the printer where the paper exits. It consists of a tray and a diverter.

  • Page 13: Printer Operator Panel

    NeuraJet17 Paper Stacker 1.2.4 Printer Operator Panel The Printer Operator Panel is the control panel located on the front of the NeuraJet17. It is used to view and set printer functionality and check job status. Online – Green light indicates the printer is ready to accept print jobs and begin printing.
  • Page 14 NeuraJet17 User Guide Information – Provides various printer information such as ink levels and settings. Stop/Eject – Cancels a print job. Clears a menu selection. Button must be held down for 1 full second to stop action or eject the paper.

  • Page 15: Printhead Cartridge

    Continuous form paper is fan folded paper of “unlimited” or continuous length. One box of this paper is usually 4000 sheets. The continuous paper used by the NeuraJet17 is 17”, 14”, 11” or 8.75” wide. Neuralog provides premium high-resolution coated well log paper for the NeuraJet17.

  • Page 16: Well Log Paper

    A Well Log Printing Application can load and display well logs, as well as send these files to a well log printer for continuous form print. Well Log Printing applications should have the following features to work well with NeuraJet17. • Windows based, Windows 7, VISTA or XP compatible •...

  • Page 17: Neurajet17 Setup And Installation

    2 NeuraJet17 Setup and Installation 2.1 Printer Setup NeuraJet17 setup is simple and should only take a few minutes. Before you begin, you will need to choose an easily accessible location and decide how the printer will be integrated into your network. You will need a physical network connection and a network address for your printer, or you may choose to connect to your printer using USB.

  • Page 18: Unpacking The Neurajet17 Box

    2.1.2 Unpacking the NeuraJet17 Box Setup sheets for the NeuraJet17 are provided with your equipment. If you are unable to locate the setup sheets, they can be downloaded in the PDF format from www.neuralog.com. We recommend that you save your boxes and packaging material.

  • Page 19: Initial Neurajet17 Setup

    NeuraJet17 User Guide 2.1.3 Initial NeuraJet17 Setup Place the printer on a table or stand and unpack all packing materials. • Remove all cushioning materials and tape from the printer and accessories. • Open the top cover, carefully raise the carriage shaft belt stopper and then pull it forward to remove.
  • Page 20 • If your NeuraJet17 was shipped with pre-installed ink, “Initializing” will be displayed, followed by “NeuraJet17 Version 41.00.” o When the printer is ready it will say Online. • If your NeuraJet17 was not shipped with pre-installed ink, you will need to install the printhead and ink cartridges. Install the Printhead If your NeuraJet17 did not come with a pre-installed printhead and ink cartridges the message "Open Top Cover"...

  • Page 21: Network And Usb Setup And Os Compatibilities

    2.1.4 Network and USB Setup and OS Compatibilities The NeuraJet17 has a sophisticated, yet easy to use setup panel and can be used over the network or with USB. The printer can be given a static or dynamic IP address and can be placed on your company’s local area network or on a private network.

  • Page 22: Troubleshooting Neurajet17 Setup

    Network Connection. The Section 2.7 Setting up the Printer for USB for will provides further details on USB setup. 2.1.5 Troubleshooting NeuraJet17 Setup When setup is complete, the NeuraJet17 should be in the Online state. The printer will not go online in the following situations. Take the appropriate action. Symptom/Message...

  • Page 23: Uninstalling The Continuous Form Attachment

    Powering ON the printer without the CFA will result in an error state. 2.3 The Continuous Form (Well Log) Paper Once the printer is setup and Online you can load paper. NeuraJet17 accepts the 4 standard sizes of paper provided by Neuralog, or it can print on your custom paper between 8.5”...

  • Page 24: Supported Paper Sizes

    Neuralog provides premium high-resolution coated well log paper for the NeuraJet17. One box of this paper is usually 4000 sheets. The continuous paper used by the NeuraJet17 is 17”, 14”, 11” or 8.75” wide. NeuraJet17 paper has been engineered for optimal print quality.

  • Page 25: Removing And Reloading The Paper

    NeuraJet17 User Guide 2. Load paper into printer rollers. Once the slider is in place, place the edge of the paper under the four white rollers in the printer. The printer will automatically grab the paper. The printer will move the paper back and forth to measure the paper width and further straighten the paper.

  • Page 26: Static Electricity - Fanning The Paper

    Fan continuous paper to remove static. 2.3.6 Choosing the Correct Start Page for Printing and Stacking For proper paper stacking, NeuraJet17 paper should be loaded such that the first page is an “out-fold”. This will allow the paper to immediately fold properly in the paper stacker.

  • Page 27: Paper Orientation

    2.3.7 Paper Orientation The NeuraJet17 printer prints on the TOP side of the paper. Be sure the marks on your NeuraJet17 paper face down. If you have correctly loaded paper from the box, the marks will be face-down and on the LEFT side, closest to the green LED on the CFA.

  • Page 28: The Paper Stacker

    2.4 The Paper Stacker NeuraJet17 comes with a built-in paper stacker. The stacker is made up of a tray to catch the paper and a diverter flap that guides the paper so it can properly fold. The tray is pre-installed in the printer and should be opened as part of printer setup. The diverters can easily be snapped into place.

  • Page 29: The Paper Stacker Diverter

    NeuraJet17 User Guide 2.4.2 The Paper Stacker Diverter There is a flap along the top exit of the paper stacker that acts as a paper stacker diverter. This flap moves back and forth as the paper exits the printer and helps the paper to properly fold.

  • Page 30: Setting Up The Printer Network Connection

    2.6 Setting up the Printer Network Connection There are many options for setting up your printer on a network. For the most simple static address setup of your NeuraJet17 follow these steps. For other configurations, please see your system administrator.

  • Page 31: Using A Private Network

    NeuraJet17 User Guide • Enter the Subnet Mask into your printer. o ►Subnet Mask ▼ __ __ __ __ Enter the numbers for the Subnet Mask Address OK button selects/unselects the slot ◄► changes the number when selected ◄►moves to the next slot o ▲...

  • Page 32: Setting Up The Printer For Usb

    This is discussed on the next page. 2.7 Setting up the Printer for USB NeuraJet17 can also be used to print via USB. For best results, use a cable less than 10 feet in length. USB cables are limited by there their electrical design; longer cables may have data transmission problems.

  • Page 33: Installing The Print Driver

    Check Device Status from printer Web Pages. 2.9 Installing the Print Driver NeuraJet17 includes a print driver that is recommended for continuous printing of well logs. The print driver can be found on a CD that shipped in the printer box, or it can be downloaded from www.neuralog.com.

  • Page 34: Print Driver Setup

    • For a network installation you can optionally share the printer and • Print a test page to your NeuraJet17. You should see the standard Windows Test Page print on the continuous paper loaded in the printer. The NeuraJet17 Print Driver will install ready to print continuous form. DO NOT change these default settings if you want to print continuous form.
  • Page 35 NeuraJet17 User Guide Media Type: May be Coated Paper or Plain Paper The Coated Paper menu setting is recommended for the NeuraJet17 and should be used for the best quality prints. The Plain Paper menu selection uses less ink, but produces lesser quality prints.
  • Page 36 • Monochrome Bitmap The default Color setting is the recommended choice for NeuraJet17. Monochrome can be used if grayscale prints are needed. Color (CAD) can create a more detailed print because the colors appear to be more distinguishable. Color (CAD) Light is similar but is slightly lighter than Color (CAD).

  • Page 37: Printing Preferences Page Setup Panel

    NeuraJet17 User Guide printing. PageComposer lets you inspect jobs before they are released to the printer. Duplicates of the print jobs can also be created in the PageComposer panel that appears. Jobs may also be deleted in this panel. 2.10.2 Printing Preferences Page Setup Panel The only setting to change on the Page Setup panel is Page Size.

  • Page 38: Printing Preferences Layout Panel: Important Settings

    NeuraJet17 User Guide Smaller print than paper width: Note that if you choose a larger paper size than your actual image, the complete print will appear on only part of the paper. Paper width Larger print than paper width: If you choose a smaller paper size than your actual image, only a portion of the image will print.
  • Page 39 NeuraJet17 User Guide • 1B) Select Advanced Tab, Printing Defaults…, Layout Tab. Special Settings. Fine Zoom Settings: No STEP 2. UNcheck Enable advanced printing features on the Advanced Tab of the Printer Properties Panel. • Select Apply/OK on all panels when done.

  • Page 40: Printing Preferences Favorites Panel

    NeuraJet17 User Guide NOTE: These settings should be set from the control panel and implemented in every installation of the NeuraJet Print Driver to avoid problems with slow printing. Other optional settings in the Preferences Layout panel that may be of interest to you are as follows.

  • Page 41: Printing Preferences Utility Panel

    2.11 Setting up Standard Log Forms for Wide Printing To print logs of different widths, log forms must be set up for the NeuraJet17 print driver to use to match the actual paper log size. This is easily done through the Windows Control Panel.
  • Page 42 NeuraJet17 User Guide is based on standard sizes of well log paper sold by Neuralog. We recommend using the following naming convention as it will simplify printer support. Form Name Width Height Left/Right/Top/Bottom Margin Log 11 Inch Wide Paper 11 in 17 in 0.12 in...

  • Page 43: Installing And Using The Status Monitor

    2.12 Installing and Using the Status Monitor The NeuraJet17 printer also comes with a Status Monitor application which can be run on any PC to provide status information about the printer. The Status Monitor is particularly useful for USB installations where the Web Interface is not available.

  • Page 44: Power Saver Mode

    NeuraJet17 User Guide 2.13 Power Saver Mode The printer automatically enters a Power Saver or Sleep mode to conserve power if it is idle for a specific period (by factory default, five minutes), that is, if no print jobs are received or buttons are pressed while all covers are closed.

  • Page 45: Printing Applications

    NeuraJet17. For best results applications should allow for horizontal scaling to fit a log onto a particular page width. If you would like to verify that your application can print to NeuraJet17, please contact us.
  • Page 46 NeuraJet17 User Guide • Supports a variety of industry standard formats for printing or file conversion. o TIFF o JPG o LAS – Log ASCII Standard o PDF - Adobe Acrobat format o PDS - Schlumberger PDS format o BMP - Bitmap o CGM –...
  • Page 47 NeuraJet17 User Guide • Make sure you have the NeuraJet17 printer selected. • Click the Properties button. • Adjust the parameters on the Main tab or Keep the defaults. • Set the actual paper Width. o Select the Page Setup tab o Select the appropriate log paper from the Page Size width.

  • Page 48: Neuralog

    NeuraLog is an application for digitizing logs. It is also used for quality control of digitizing work and to edit LAS files. NeuraLog will print both TIFF images and LAS files to the NeuraJet17. For best results use NeuraLog Version 2013.x or later.
  • Page 49 NeuraSection loads single wells and cross sections. 3.1.3.1 Printing Logs from NeuraSection Logs can be printed from NeuraSection to the NeuraJet17. Before you print, you will want to know which size paper is loaded into the printer. Select a Log window and choose Print and then follow these steps.
  • Page 50 3.1.3.2 Printing Cross Sections from NeuraSection Cross Sections can be printed from NeuraSection to the NeuraJet17. Before you print, you will want to know which size paper is loaded into the printer. Select the cross section window and choose Print and then follow these steps.

  • Page 51: Other Well Log Viewing Applications

    The ones we list are easily accessible and/or well known. 3.2.1 Adobe Acrobat Any file of the PDF format will print to NeuraJet17. However PDF well logs can be formatted in a variety of ways, leading to incorrect prints. Adobe Reader is a free and ubiquitous application and is available at www.adobe.com;...

  • Page 52: Pdsview

    PDSView allows you to display, annotate, print and convert Schlumberger PDS files . PDSView 3.5 is downloadable from Schlumberger’s web site www.slb.com. Note that NeuraJet17 must be set to the default printer to work with PDSView. 3.2.3 BlueView BlueView is a Schlumberger application that displays, annotates, edits, splices and prints log images on a Windows system.

  • Page 53: Mainlog

    Neuralog had tested Snagit V10.0.0.788 for continuous printing. 3.2.10 Other Applications There are many other applications that work with NeuraJet17. If you know of an application that needs to be added to this list or tested with the printer, please contact support at support@neuralog.com.
  • Page 54 NeuraJet17 User Guide © 2014…Neuralog...

  • Page 55: Printing Well Logs

    NeuraJet17 User Guide 4 Printing Well Logs Once your NeuraJet17 print driver is installed and application selected, it is time to print some logs. This section gives some tips on how to get the best log prints for your particular needs.

  • Page 56: Inch Wide Paper

    NeuraLaserColor, Neuralog’s Color Laser printer. The NeuraLaserColor has unsurpassed printing speed and is an excellent choice for these narrower prints. NeuraJet17 is still the best choice if print width flexibility is important. Both devices offer excellent quality color prints.

  • Page 57: Copies

    Auto gives the same result as 8.5”. 4.2 Copies The NeuraJet17 will print copies of any continuous form document. For each copy of the document, the paper will be correctly positioned to Top of Form. Default behavior is for the printer to cut between each copy.

  • Page 58: Recommended Standard Quality Log Prints

    NeuraJet17 User Guide Main Printing Preferences Panel contains Print Quality settings. 4.3.1 Recommended Standard Quality Log Prints High quality prints for every day professional use. Prints at about 0.6 inches per second. • Media Type: Coated Paper • Print Quality: Standard 600 dpi 4.3.2 Highest Quality Log Prints...

  • Page 59: Draft Log Prints (Fastest)

    Economy printing is achievable when Plain paper and Draft modes are selected. 4.4 Color The NeuraJet17 print driver was developed to achieve excellent color matching for well log prints. We recommend leaving the setting to the Default of “Color” for normal printing, but other settings are possible.

  • Page 60: Dpi

    4.6 Print Length The NeuraJet17 has been certified to print well logs with an accuracy better than 99.8% length accuracy. Length accuracy of 99.5% is an industry standard used by most energy companies.

  • Page 61: Cancelling A Print Job

    Draft and Economy Mode settings also cause the printer to print at faster speeds. NeuraJet17 prints will start almost as soon as the printer begins accepting data and the data light begins to flash. Thus the Time To First Print (TTFP) is very reasonable for the NeuraJet17.
  • Page 62 NeuraJet17 User Guide © 2014…Neuralog...

  • Page 63: Maintaining The Printer

    NeuraJet17 User Guide 5 Maintaining the Printer The NeuraJet17 requires little manual maintenance; most maintenance is done automatically as needed. However at periodic intervals you will need to change the printhead cartridges, and ink cartridges. You may also need to clean your printer.

  • Page 64: Printing A Test Pattern

    NeuraJet17 User Guide 5.1.3 Printing a Test Pattern Print a test pattern to determine if the cleaning routines was successful. o Menu ►►►►►►►►► (9) Test Print ▼ o ►►►► (4) Nozzle Check OK to enter The printer will go online and print a test pattern. The Printhead L prints the test pattern for nozzle checking on the top line for each color, and the Printhead R prints the test pattern on the bottom line.

  • Page 65: Printhead Care

    When the cartridge status indicates empty, do the following to change the cartridge. • Locate and open a new print cartridge box. This will be a Neuralog supplied cartridge labeled “NeuraJet17 ….” Only NeuraJet17 print cartridges will work in your NeuraJet17 printer.

  • Page 66: When The Printer Is Not Used For A Long Time

    NeuraJet17 User Guide • Do not reattach the protective caps the printhead because the cap may damage the nozzles. • To prevent the nozzles from getting clogged with foreign matter or dried ink, install the printhead immediately after you remove the protective caps.

  • Page 67: Unpacking The Ink Tank

    NeuraJet17 User Guide 5.4.1 Unpacking the Ink Tank • Do not unpack the ink tank until you are ready to install it. • When installing the ink tank, shake it slowly 7 to 8 times before unpacking it. Otherwise, the ink ingredients may precipitate and degrade the print quality.

  • Page 68: Changing The Maintenance Cartridge

    NeuraJet17 User Guide 5.5 Changing the Maintenance Cartridge The maintenance cartridge stores waste ink. It is time to replace the cartridge if Maint Cartridge / Replace Cart is shown on the Display Screen. Replace the Maintenance Cartridge before transfer preparations. Do not replace during a print job. If you pause printing to replace the Maintenance Cartridge, it may cause the printed images to become blurry.

  • Page 69: Installing The New Maintenance Cartridge Tray

    NeuraJet17 User Guide • Keeping the used Maintenance Cartridge level, put it in the plastic bag that was in the box, as shown. • Expel air in the plastic bag and seal the zipper. Fold the plastic bag in half.

  • Page 70: Adjusting The Feed Amount (Banding Problems)

    Neuralog support. 5.8 Adjusting the Length Accuracy The print length can be adjusted on the NeuraJet17 to insure length accuracy of prints. The NeuraJet17 can be adjusted to a length accuracy of about 99.8%. Length accuracy of 99.5% is an industry standard. To adjust the measurement scale and ensure length accuracy, you will specify the amount of paper stretching or shrinkage when adjusting the feed amount.

  • Page 71: Cleaning The Printer And Cfa

    0.00%. The measured test print should be within 99.8% of true scale once the printer length accuracy is possible. If this cannot be achieved, contact Neuralog support. 5.9 Cleaning the Printer and CFA You may want to periodically clean your printer to remove paper dust.

  • Page 72: Moving The Printer

    NeuraJet17 User Guide 5.10 Moving the Printer If you need to move your NeuraJet17 to another location, make sure it has been properly shut down to protect the internal parts during transit. Do not tilt the printer in transit. Ink inside the printer may leak and cause stains.

  • Page 73: Managing And Ordering Supplies

    Close the top cover and tape down printer covers to secure them. Be sure to use the original packaging when shipping the NeuraJet17 printer. If you are packaging the printer for return to Neuralog, please see Chapter 7 NeuraJet17 Support.
  • Page 74 NeuraJet17 User Guide NeuraJet17 Device Status Web Page © 2014…Neuralog...

  • Page 75: Troubleshooting Continuous Form Printing

    NeuraJet17 User Guide 6 Troubleshooting Continuous Form Printing The NeuraJet17 has proven to be a robust and reliable well log printing solution. If you do have trouble, please see this troubleshooting guide and contact Neuralog Support for help. 6.1 Ink Runs Out During Print If ink runs out during a print the printer will stop printing and sound an alarm to indicate the ink is out.

  • Page 76: Paper Fragment Stuck In Printer

    6.4 Blank pages at beginning of print It is normal for the NeuraJet17 to have 2 blank pages at the beginning of each print. These are necessary to protect the printhead. 6.5 Blank pages at end of print NeuraJet17 may include a blank page at the end of each print.

  • Page 77: Paper Does Not Load

    6.8.3 Cut is in the wrong location The NeuraJet17 places the cut at the end of the print job at about 20 millimeters after the paper perforation. If the cut is off, it may be that the CFA is not properly functioning.
  • Page 78 NeuraJet17 User Guide © 2014…Neuralog...

  • Page 79: Neurajet17 Support

    There are a variety of ways to obtain support. 7.1 On-Site Support In some parts of the world, your NeuraJet17 printer will come with an On-Site Support contract. Contact Neuralog if you need information about on-site support or if your printer needs service.

  • Page 80: Packaging The Printer For Return

    You should save these materials so that in the event that you should need to ship your product (to Neuralog or to another location), your printer and CFA will be properly protected. Neuralog cannot be responsible for damages done to products that have been improperly shipped by the end user.

  • Page 81: Appendix - Example Of Setting Up A Private Network

    NeuraJet17 User Guide 8 Appendix – Example of Setting up a Private Network The following instructions provide an example of setting up your NeuraJet17 on a private network. Your setup will be similar to this. Required items: • NeuraJet17 with CFA •...
  • Page 82 NeuraJet17 User Guide Setup instructions for XP static IP: • Start > Control Panel >Network Connections • Right click on the local area connection > Click on properties • Go to General Tab >Highlight Internet Protocol (TCP/IP) • Click properties •...

  • Page 83: Appendix - Example Of Setting Up The Print Driver

    NeuraJet17 User Guide 9 Appendix – Example of Setting up the Print Driver When you install the NeuraJet17 print driver CD it should auto run. Select 32-Bit Driver Installation or 64-Bit Driver Installation and follow the instructions. The following are some of the critical screens you will see when installing a NeuraJet17 driver on various versions of Windows: Windows XP, Vista, 2000, W7 and W8.
  • Page 84 NeuraJet17 User Guide UNchecked Select TCP/IP Device type and enter the Hostname (if set up) or IP address (address recommended). DO NOT Query the printer. At this point the port is created and printer connection is set up. Setting up the Port – Some Operating Systems such as Windows XP...
  • Page 85 NeuraJet17 User Guide Create a new port of type Standard TCP/IP Port. (If you are installing a second instance of the driver, you may select an existing port.) Enter the Printer IP Address. You should have already assigned an address to the printer through the operator panel on the printer itself.
  • Page 86 NeuraJet17 User Guide Version 4.17.0.0 You will see one or the other of these two screens. Select NeuraJet17 and then Next. © 2014…Neuralog...
  • Page 87 For 32-bit Installation browse for the file on the CDROM Printer→Drivers→Neuralog_X32→drivers→2WQ512M.INF For 64-bit Installation browse for the file on the CDROM Printer→Drivers→Neuralog_X64→drivers→6WQ512M.INF If you do not have or cannot find the NeuraJet17 Printer Driver CD, go to www.neuralog.com to download these drivers. © 2014…Neuralog...
  • Page 88 NeuraJet17 User Guide © 2014…Neuralog...

  • Page 89: Appendix - Inside The Printer

    NeuraJet17 User Guide 10 Appendix – Inside the Printer The following sections provide graphics and descriptions of various printer components. 10.1 Top Cover (Inside) a. Carriage - Moves the Printhead. The carriage serves a key role in printing. b. Carriage Shaft - The Carriage slides along this shaft.

  • Page 90: Carriage

    NeuraJet17 User Guide 10.2 Carriage a. Printhead Fixer Cover - Holds the Printhead in place. Do not open this part except during Printhead replacement. b. Printhead - The printhead is equipped with ink nozzles. It serves a key role in printing.
  • Page 91 NeuraJet17 User Guide a. Ink Color Label - Load an Ink Tank corresponding to the color and name on these labels. b. Ink Set - An Ink Tank that can be used in the printer is labeled with a white letter “A” in a black circle on the side.
  • Page 92 NeuraJet17 User Guide © 2014…Neuralog...

  • Page 93: Appendix - Compliances And Certificates

    NeuraJet17 User Guide 11 Appendix – Compliances and Certificates 11.1 Waste from Electrical and Electronic Equipment (WEEE) Directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products.

  • Page 94: Cb Test Certificate From Underwriters Laboratory

    NeuraJet17 User Guide 11.4 CB Test Certificate from Underwriters Laboratory The NeuraJet17 Continuous Form Attachment accessory (NeuraJet17C) has been testing by Underwriters Laboratory, Inc. for safety and found to meet CB Test requirements. © 2014…Neuralog...

  • Page 95: Appendix - Warranty

    Buyer shall be required to bear the expense of any repair or replacement of the Printer or the part. Buyer shall comply with all terms contained in the NeuraJet17 Operator’s Manual for normal printer operation.
  • Page 96 NeuraJet17 User Guide © 2014…Neuralog...
  • Page 97 NeuraJet17 User Guide Index Cleaning Routines · 53 Cleaning the Printer · 61 Coated Paper · 25, 48 Color · 26 32-bit · 23 Color (CAD) · 26 Connector · 2 Continuous Form · 1, 2, 5, 13, 65, 66 Continuous Form Attachment ·...
  • Page 98 NeuraJet17 User Guide folding issues · 65 LogView Pro · 42 forms · 31 Frequently Asked Questions · 70 full coverage logs · 65 MainLog · 43 Maint Cartridge / Replace Cart · 58, 62 maintenance · 53 GoTo Meeting Support · 69 maintenance cartridge ·...
  • Page 99 NeuraJet17 User Guide Page Size · 27, 33 Printing Defaults · 24, 29 Paper · 45 printing is faint · 65 paper does not load · 67 Printing Preferences · 24 paper fragment · 66 private network · 11, 20, 21, 51, 71, 72 Paper Guide ·...
  • Page 100 NeuraJet17 User Guide Thicken Fine Lines · 26 TIFF · 36, 38 Time To First Print · 51 Warranty · 85 Top Cover · 79 Watermark · 30 troubleshooting · 65 Weatherford · 42 Troubleshooting paper loading · 15 Web Interface · 22 true scale ·...
