INTERFACE FEATURES
• 31 Band graphic EQ
• 6 Inputs, 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Chime control for GM/Chrysler vehicles
• Clipping detection and limiting circuits
AxxessInterfaces.com

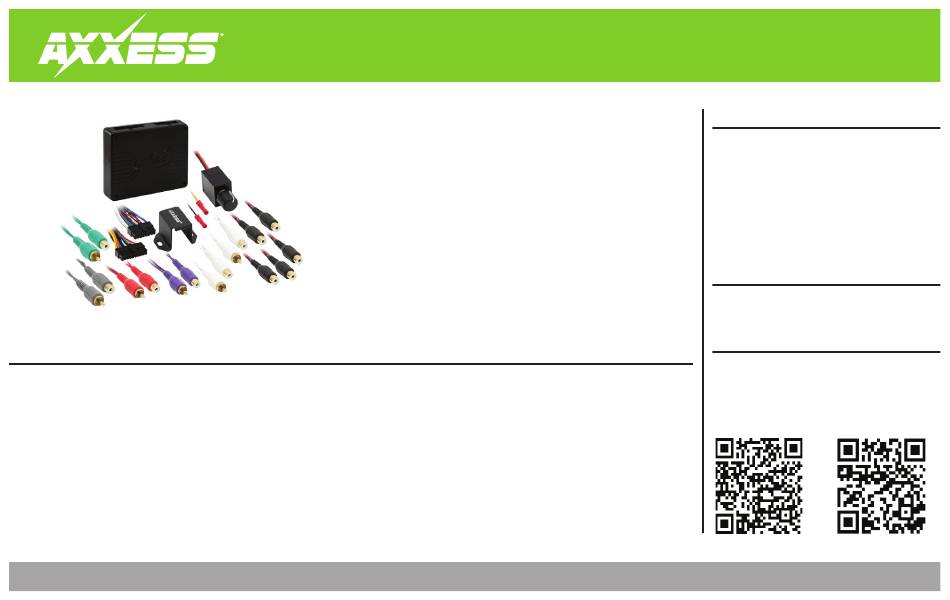

Axxess 10-Channel Digital Signal Processor
• Bass knob included
• Retains OE voice prompts (SYNC® and OnStar®)
• Retains factory chimes including parking sensor and cross path
detection alerts
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AX-DSP-X
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Preface ....................................................................2
Installation Options ...............................................3
Installation .............................................................3
Connections ........................................................ 4-7
AX-DSP-X app .................................................... 8-17
Pinout ....................................................................18
Specifications ....................................................... 19
INTERFACE COMPONENTS
• AX-DSP-X interface
• AX-DSP-X harness (16-pin & 20-pin)
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
Apple App Store
Google Play Store
iOS 12.1 or higher
REV. 9/19/19 INSTAX-DSP-X
Advertisement
Related Manuals for Axxess AX-DSP-X
Summary of Contents for Axxess AX-DSP-X
-
Page 1: Table Of Contents
Connections ............4-7 AX-DSP-X app ............ 8-17 Pinout ..............18 Specifications ............19 INTERFACE COMPONENTS • AX-DSP-X interface • AX-DSP-X harness (16-pin & 20-pin) TOOLS & INSTALLATION ACCESSORIES REQUIRED INTERFACE FEATURES • Crimping tool and connectors, or solder gun, • 31 Band graphic EQ • Bass knob included solder, and heat shrink •... -
Page 2: Preface
Use Metra part number E-123 (sold separately) for best results. If installing the AX-DSP-X behind the radio to install a sub amp, the OEM amp can be retained for mids/highs. If installing the AX-DSP-X at the OEM amp location, the OEM amp must be fully removed. -
Page 3: Installation Options
OEM System without an amplifier: 9. Test all functions of the installation, then reassemble the dash to complete the This option allows the Installer to wire the AX-DSP-X directly to the speaker outputs from the OEM installation. radio for an audio signal (high-level). (refer to page 6) * Refer to Metra online for dash disassembly. - Page 4 Orange - Control Wire Optional Black - Chassis Ground Yellow - Battery Power Red - Accessory Power AX-DSP-X (included) Assignable Outputs Labeled CH 6-10 An SPDT relay, Metra part number Any remaining wires E-123, must be used if more than...
-
Page 5: Connections
(included) Factory Radio Orange - Control Wire Refer to pre-wired harness Factory Harness for wire connections AX-DSP-X pre-wired harness These outputs can be used for (sold separately) AX-DSP-X (included) additional sub amps, or for adding onto the system at a later date... - Page 6 Orange - Control Wire Refer to pre-wired harness for wire connections Assignable Outputs Labeled CH 6-10 Factory Harness AX-DSP-X pre-wired harness (sold separately) AX-DSP-X (included) Unplug Connector An SPDT relay, Metra part number E-123, must be used if more than...
- Page 7 Factory Amp Harness Speaker Wire Out to Amp(s) Assignable Outputs Labeled CH 6-10 Bass Knob (included) Orange - Control Wire AX-DSP-X pre-wired harness AX-DSP-X (included) (sold separately) Refer to pre-wired harness An SPDT relay, Metra part number for wire connections...
-
Page 8: Ax-Dsp-X App
AX-DSP-X APP Setup Instructions • General information tab for installing the AX-DSP-X. Continued on the next page... - Page 9 Bluetooth Connection • Scan - Press this button to start the Bluetooth pairing process, then select the AX-DSP-X from the mobile device. The AX-DSP-X must be powered during this process. Confirmation that you are connected will show in the top left corner of the app.
- Page 10 AX-DSP-X APP (CONT.) Configuration • Identify - Click this button to confirm that the AX-DSP-X is connected properly. If so, a chime will be heard from the front left speaker. • Reset to Defaults - Resets the AX-DSP-X to factory settings. During the reset process the amplifiers will shut off for 5-10 seconds.
- Page 11 • About - Displays information about the app, vehicle, AX-DSP-X, and mobile device. • Set Password - Assign a 4-digit password to lock the AX-DSP-X. If no password is desired, use “0000”. This will clear out any currently set password. It is not necessary to lock down the AX-DSP-X when setting a password.
- Page 12 • Group - Used to join channels together. Example, left front woofer/ midrange and left front tweeter will be considered simply left front to the AX-DSP-X. The letter M denotes the speaker assigned as the master speaker. • Invert - Will invert the phase of the speaker.
- Page 13 AX-DSP-X APP (CONT.) Crossover Adjust • If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out of the full range speakers. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play to.
- Page 14 AX-DSP-X APP (CONT.) Equalizer Adjust • All channels can be adjusted independently within this tab with 31 bands of available equalization. It is best to tune this by using an RTA (Real Time Analyzer). • The Gain slider on the far left is for the channel selected.
- Page 15 AX-DSP-X APP (CONT.) Delay Adjust • Allows a delay of each channel, up to 10 milliseconds. First measure the distance (in inches) from each speaker to the listening position, then enter those values. If a delay is desired, add to the desired channel(s), up to 99 inches.
- Page 16 • Clipping Level - Use this feature to protect sensitive speakers like tweeters from being driven past their capabilities. If the output signal of the AX-DSP-X clips the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back at a normal level.
- Page 17 AX-DSP-X APP (CONT.) Locking Down Data Last and the most important. You must lock down your configuration!!! REV. 7/24/2019 INSTAX-DSP-X...
-
Page 18: Pinout
PINOUT Input Connector Output Connector CH9 CH10 CH9 CH10 Input 6 - Subwoofer Right Input Black - Chassis Ground Input 5 - Subwoofer Left Input Pink - CAN-HI Blue/White - Amp Turn-On Purple RCA Jack - User Assignable Output Purple RCA Jack - Rear Right Input * Blue/Pink - CAN-LO Red/White - Future Use Green RCA Jack - User Assignable Output Green RCA Jack - Rear Left Input * Brown - Future Use... -
Page 19: Specifications
SPECIFICATIONS Specifications General Input Impedance 1M Ohm Operating Voltage 10 - 16VDC Input Channels 6 High/Low level Selectable Standby Current Draw ~7mA Input Options High Level or Low Level Operation Current Draw ~150mA Input Type Differential-Balanced Adjustments/Controls Application via Bluetooth Input Voltage 12VDC, Signal Sense 0 - 28v Peak to Peak... - Page 20 AX-DSP-X I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 1-800-253-TECH Or via email at: techsupport@metra-autosound.com...
