Furzone THOR A5 Manual Instruction

Brushless dc moter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

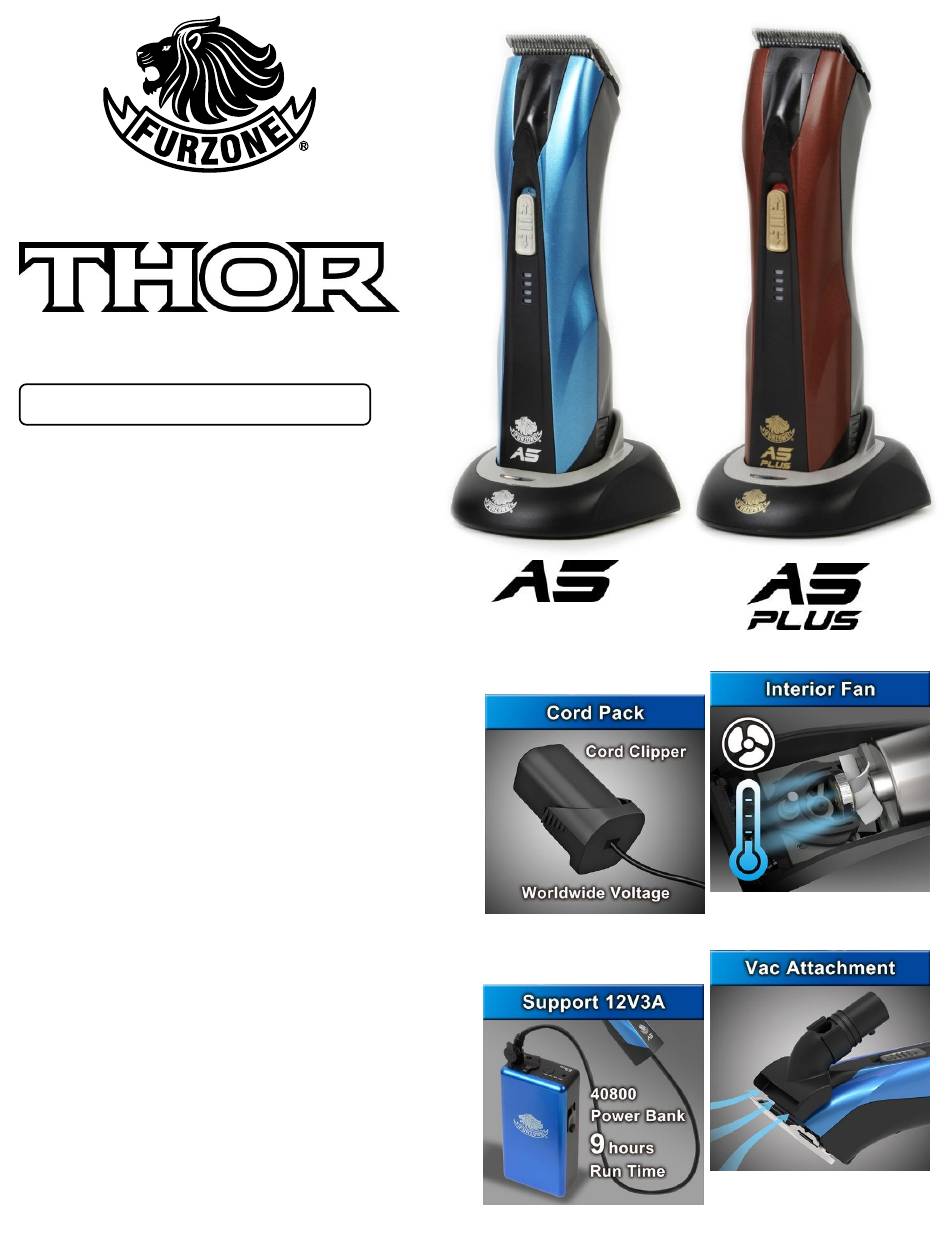

MANUAL INSTRUCTION
MODEL 920
BRUSHLESS DC MOTER
1 Technical data
1.1 Specifications
● Dimension : 206x52x53mm (LxWxH)
● Weight : A5 - 470g / 1.04lb
A5 Plus - 530g / 1.17lb
● BRUSHLESS DC motor
● Motor power : 40W / 36W
● Motor life : 30,000 hours
● Total recharging time : A5-1.5 hours
A5 Plus - 2.5 hours
● Run time : A5 - 2 hours
A5 Plus - 5 hours
● Strokes per minute : 3500 spm
● LED indicator : smart charging led indicator
100%. 75%. 40%. 10%
● Torque : 10 kgf-m
● Power adapter : 1.2M cord (12V/3A power adapter)
● Battery : Lithium-ion
● Battery pack (circuit protection)
● Cord pack (12V/2A) : 1.2M cord
● Charging stand : charging LED indicator
● Charging stand dimension (LxWxH) :
95x90x51 mm
● 12V/2A cable (for 40800 power bank) :
20cm cord (support 12V/2A DC out)
● 1-Year limited motor warranty
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THOR A5 and is the answer not in the manual?

Questions and answers

Related Manuals for Furzone THOR A5

Summary of Contents for Furzone THOR A5

  • Page 1 MANUAL INSTRUCTION MODEL 920 BRUSHLESS DC MOTER 1 Technical data 1.1 Specifications ● Dimension : 206x52x53mm (LxWxH) ● Weight : A5 - 470g / 1.04lb A5 Plus - 530g / 1.17lb ● BRUSHLESS DC motor ● Motor power : 40W / 36W ●...

  • Page 2: Assembly And Function

    2 Assembly and function 2.1 Component as Figure 1. Clipper machine 2. Blade A5 - A1A12 #10-1.5mm A5 PLUS - A5A12 #30W-0.5mm 3. Battery pack (1.2M cord) Run Time 5 hours 4. Charge stand 5. Cord pack (optional) 6. Power adapter (1.2M cord) 13.5V/2A 7.
  • Page 3 2.3 Abstract The clipper serves to clip dogs, cats, cattle and horses. Two comb-shaped blades are the cutting tool. The bottom blade facing the skin (3) is standing firm and is fixed on the blade hinge (4). The top is agitated crossways that one. Fig.

  • Page 4: Operation

    2.6 Battery 1. Interlock battery 2. Contacts Fig. 9 3 Operation 3.1 Initial startup 3.1.1 Setting up the charging station ● Observe all technical data according to the operating conditions (3 Technical Data). ● The installation surface must be even and must dispose of sufficient stability and payload. ●...
  • Page 5 3.1.2 Charge battery 1. Test the contacts of the clipper (1) and the battery (2) for foreign particles and contamination. 2. Assure, that the switch lever of the clipper is in OFF-position (“0”) (fig. 4). Fig. 11 3. Insert the battery (2) in the clipper (3), until the battery interlock (1) is engaged on both sides.
  • Page 6 3.1.3 Fitting the clipper head Fig. 14 Fig. 15 1. If the blade hinge (2) is accidentally 2. Fit the clipper head (1) on the open blade closed, lift the latter up using a hinge (2). screwdriver (1) while simultaneously pressing the blade lock.
  • Page 7 3.2 Activities during operation 3.2.1 Clipping 1. Fix and calm the animal sufficiently before clipping. 2. Switch on the clipper already in the field of vision of the animal. 3. Approach to the animal from ahead. 4. During clipping, look at the behaviour of the animal. 3.2.2 Changing the battery When the battery is unloaded, the clipper is turned off by a protective circuit.
  • Page 8 3. Fold the clipper head ahead when the interlock Fig. 21 clipper head is pressed. 4. Take off the clipper head. 5. Clean the opened hinge by the help of the provided brush. 6. Fit the favoured clipper head to the blade hinge and fold it on to the switched-on clipper by light pressure.

  • Page 9: Charging Station

    CAUTION! Remove all the leaking, used up or excessive grease from all the lubrication points, and it is to be disposed in accordance with the local regulations. 3.2.5 Cleaning To receive good clipping results and to increase the durability of the clipper and the clipper head, it is necessary to apply a thin oil coat between top and bottom blade (3.2.4 Lubrication).
  • Page 10 3.3.2 Support Vac attachment (optional) (1) Vac board (2) Screwdriver (3) Vac attachment Fig. 26 Fig. 25 Fig. 35 Fig. 36 Fig. 37 Fig. 38...
  • Page 11 3.3.3 Support 40800 power bank (optional) (1) Cord pack (2) 12V/2A Cable (3) 40800 power bank (4) 920 Clipper 40800 Specifications Fig. 39 ● Battery : li-ion rechargeable battery ● Power indicator : 4 LED lights display battery life ● Output : 12V/2A &...

  • Page 12: Replacement Part

    4 Replacement Part 4.1 Swinging head (1) Vac board (2) Screwdriver (3) Upper board (4) Screw (5) Small spring (6) Small bearing (7) Swinging head Fig. 26 Fig. 25 Fig. 27 Fig. 28 Fig. 29 Fig. 30...

  • Page 13: Troubleshooting

    Fig. 32 Fig. 31 Fig. 34 Fig. 33 5 Troubleshooting ● The here described tasks for troubleshooting can be done mostly by the operator. ● Some tasks only may be done by especially trained personal or by an authorised service centre.

  • Page 14: Care And Maintenance

    Malfunction Cause Rectification Clipper cuts badly Clipper blade is blunt Have top and bottom blades re- or not at all sharpened by service centre (S) Clipper blades have not been correctly ground Clipper blades are not oiled Oil clipper blades every 15 minutes The animal‘s hair is wet Only clip dry hair Hairs jammed between top and...
  • Page 15 12. Do not use a comb or a set of blades if they are damaged. Replaced them immediately as they may cause injury. 13. Take care not to scratch the skin when handling the appliance with the set of blades without combs. CUT ON LINE PLACE STAMP HERE FURZONE...
  • Page 16 In case of defect, please return the appliance well packed and together with the guarantee card regularly dated and stamped to one of our FURZONE Service Centers or to the dealer who will send it to the official importer for the guarantee service.
