Installation Instructions

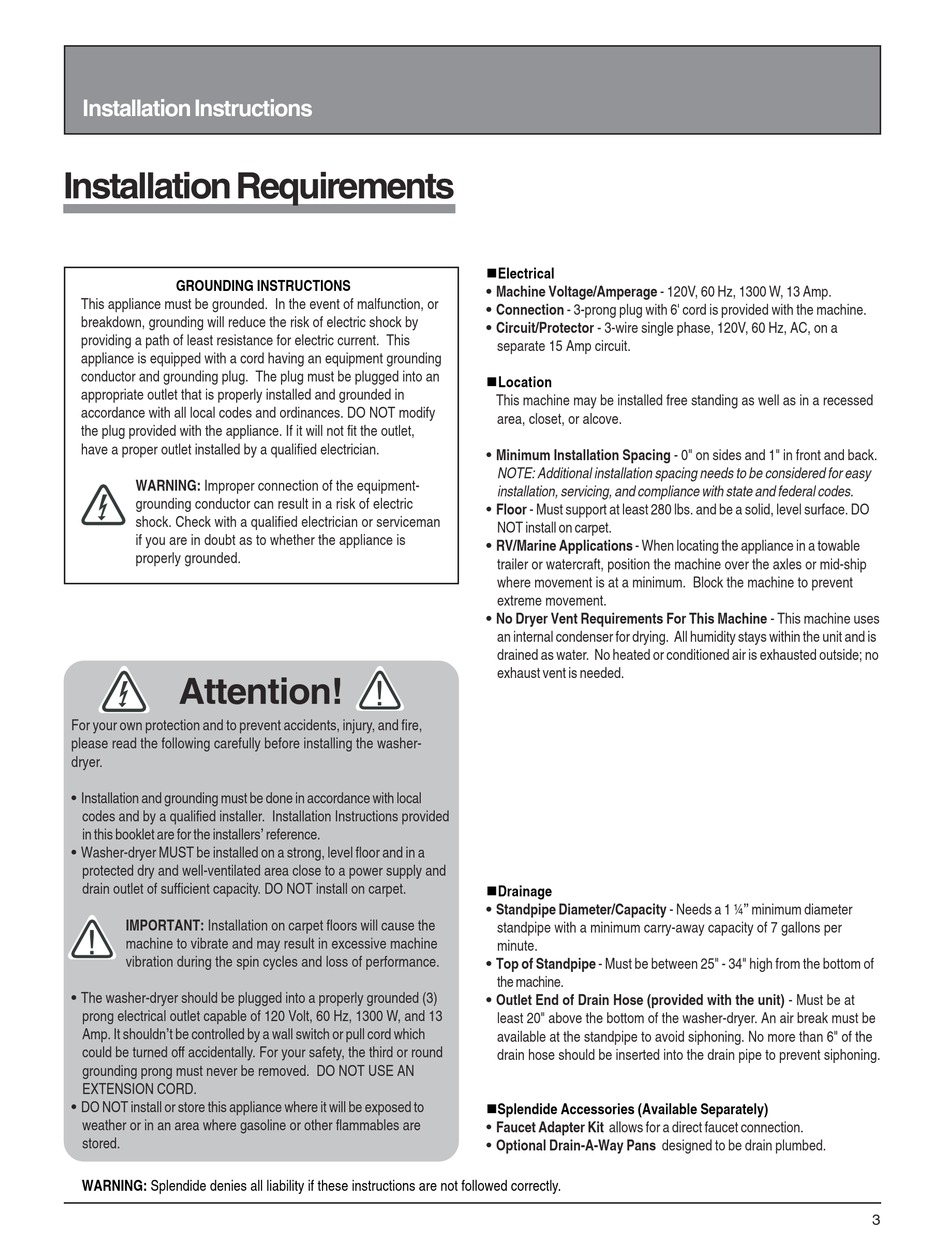

Installation Requirements
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction, or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment grounding
conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. DO NOT modify
the plug provided with the appliance. If it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman
if you are in doubt as to whether the appliance is
properly grounded.
Attention!
For your own protection and to prevent accidents, injury, and fire,
please read the following carefully before installing the washer-
dryer.
• Installation and grounding must be done in accordance with local
codes and by a qualified installer. Installation Instructions provided
in this booklet are for the installers' reference.
• Washer-dryer MUST be installed on a strong, level floor and in a
protected dry and well-ventilated area close to a power supply and
drain outlet of sufficient capacity. DO NOT install on carpet.
IMPORTANT: Installation on carpet floors will cause the
!
machine to vibrate and may result in excessive machine
vibration during the spin cycles and loss of performance.
• The washer-dryer should be plugged into a properly grounded (3)
prong electrical outlet capable of 120 Volt, 60 Hz, 1300 W, and 13
Amp. It shouldn't be controlled by a wall switch or pull cord which
could be turned off accidentally. For your safety, the third or round
grounding prong must never be removed. DO NOT USE AN
EXTENSION CORD.
• DO NOT install or store this appliance where it will be exposed to
weather or in an area where gasoline or other flammables are
stored.
WARNING: Splendide denies all liability if these instructions are not followed correctly.
nElectrical
• Machine Voltage/Amperage - 120V, 60 Hz, 1300 W, 13 Amp.
• Connection - 3-prong plug with 6' cord is provided with the machine.
• Circuit/Protector - 3-wire single phase, 120V, 60 Hz, AC, on a
separate 15 Amp circuit.
nLocation
This machine may be installed free standing as well as in a recessed
area, closet, or alcove.
• Minimum Installation Spacing - 0" on sides and 1" in front and back.
NOTE: Additional installation spacing needs to be considered for easy
installation, servicing, and compliance with state and federal codes.
• Floor - Must support at least 280 lbs. and be a solid, level surface. DO
NOT install on carpet.
• RV/Marine Applications - When locating the appliance in a towable
trailer or watercraft, position the machine over the axles or mid-ship
where movement is at a minimum. Block the machine to prevent
extreme movement.
• No Dryer Vent Requirements For This Machine - This machine uses
an internal condenser for drying. All humidity stays within the unit and is
drained as water. No heated or conditioned air is exhausted outside; no
exhaust vent is needed.
!
nDrainage
• Standpipe Diameter/Capacity - Needs a 1 ¼" minimum diameter
standpipe with a minimum carry-away capacity of 7 gallons per
minute.
• Top of Standpipe - Must be between 25" - 34" high from the bottom of
the machine.
• Outlet End of Drain Hose (provided with the unit) - Must be at
least 20" above the bottom of the washer-dryer. An air break must be
available at the standpipe to avoid siphoning. No more than 6" of the
drain hose should be inserted into the drain pipe to prevent siphoning.
nSplendide Accessories (Available Separately)
• Faucet Adapter Kit allows for a direct faucet connection.
• Optional Drain-A-Way Pans designed to be drain plumbed.
3
