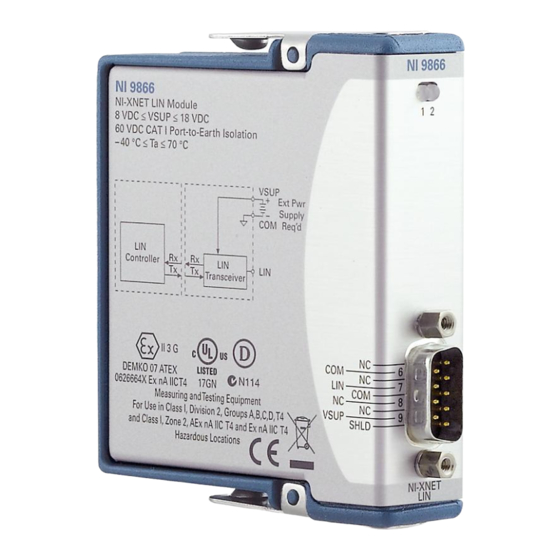

- Page 2 OPERATING INSTRUCTIONS NI 9866 1-Port, LIN Module Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 These operating instructions describe how to use the National Instruments (NI) 9866 module. For information about installing, configuring, and programming your system, refer to your system documentation. The NI 9866 module requires the latest NI-XNET software to be installed. The latest version of the NI-XNET software is at ni.com/downloads...
-
Page 4: Safety Guidelines
Touching this component may result in bodily injury. Safety Guidelines for Hazardous Locations The NI 9866 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations;... - Page 5 IP 54 as defined by IEC 60529 and EN 60529. For Zone 2 applications, install a protection Caution device between the LIN signals and the NI 9866 LIN pins. The device must prevent the LIN Port-to-COM voltage from exceeding 55 V if there is a transient overvoltage condition.
-
Page 6: Wiring The Ni 9866
You must use a UL listed ITE power supply Caution marked LPS with the NI 9866. The NI 9866 requires an external power supply of +8 to +18 V to operate. Supply power to the NI 9866 V pin from the LIN bus. - Page 7 The NI 9866 pinout is listed in Table 1. Table 1. Pin Assignments for the NI 9866 Connector Signal No Connection (NC) SHLD NI 9866 Operating Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 8: Cable Specifications
Cabling Requirements for NI 9866 This section deals with cabling specifications, termination resistors, cable lengths, and the number of LIN nodes that can exist in a system. Cable Specifications LIN cables should meet the physical medium requirement of a bus RC time constant of 5 µs. -
Page 9: Termination Resistors
NI-XNET Session Interface:LIN:Termination property. NI 9866 Hardware Overview The NI 9866 has one full-featured LIN port that is isolated from the other modules in the system. The port has a LIN controller that is fully compliant with the LIN 1.3/2.0/2.1/2.2 Specification. -
Page 10: Specifications
Ext Pwr Supply Required Controller Transceiver Figure 1. NI 9866 Hardware Overview Specifications The following specifications are typical for the range –40 to 70 °C unless otherwise noted. LIN Characteristics Transceiver........NXP TJA1028 Max baud rate ........20 kbps LIN bus lines voltage ......–40 to +40 VDC ©... -
Page 11: Power Requirements
Thermal dissipation (at 70 °C)..1.25 W max (active mode) Physical Characteristics Caution If you need to clean your NI 9866, wipe it with a dry towel. The product must be completely dry and free from contaminants before you return it to service. - Page 12 The maximum voltage that can be applied or output between any port or V terminal and a COM terminal without creating a safety hazard. © National Instruments NI 9866 Operating Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 13: Isolation Voltages
Hazardous Locations U.S. (UL) .......... Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, AEx nA IIC T4 NI 9866 Operating Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 14 Storage humidity....... 5 to 95% RH, noncondensing Pollution Degree (IEC 60664) ..2 Maximum altitude......2,000 m Indoor use only. © National Instruments NI 9866 Operating Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 15: Electromagnetic Compatibility
AS/NZS CISPR 11: Group 1, Class A emissions • FCC 47 CFR Part 15B: Class A emissions • ICES-001: Class A emissions NI 9866 Operating Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 16 This product meets the essential requirements of applicable European Directives as follows: • 2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility Directive (EMC) © National Instruments NI 9866 Operating Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 17: Online Product Certification
Certification column. Environmental Management NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. - Page 18 Waste and Electronic Equipment, visit ni.com/environment/weee National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china © National Instruments NI 9866 Operating Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 19: Where To Go For Support
Offices section of to access the branch office ni.com/niglobal Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI 9866 Operating Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 20 LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
