Baja Design LP9 PRO Quick Start Manual

Specifications:
Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps: 105W / 7.6A
IPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A
Dimensions: 8" Diameter/ 3.25" Depth
Weight: 6.5lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Description:

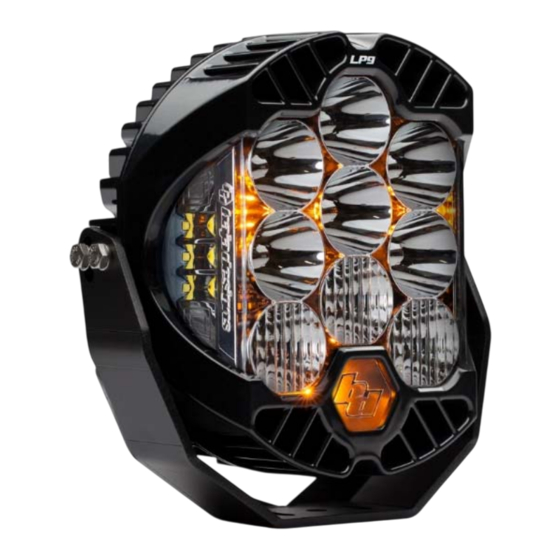

A design that was inspired by Baja Designs' legendary 8" La Paz HID;
The LP9 features modern styling and performance, with some of the
most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at
105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which
produce 1,140 lumens at 10.5 watts per side. The IPT provides an
incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by
using Direct Ducted Cooling, which allows air to travel from the front of
the housing to the rear. With a day-time running light, low, and high
power mode, the LP9 will fulfill all your lighting needs.
Available in a standard model that is perfect for a wide range of off-
road use, as well as a Racer Edition configuration that is designed for
the demands of high speed driving. The Racer Edition has similar power
draw, but produces a much tighter pattern, providing higher visibility at
greater distances. Both models feature uService technology, which
allows customers to change the lens pattern and color depending on
driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
• Satisfaction Guaranteed - 30 Day Money Back
Guarantee
• Limited Lifetime Warranty - Complete Purchase
Protection
• uService® - Replaceable Lenses And Optics
• ClearView® - All The Light, Right Where You Need It
• MoistureBlock™ - Waterproof, Rain Proof, Submersible
• CopperDrive® - Only LED Driven At 100%
• 5000K Daylight - Less Driver Fatigue, Natural Color
