Pos No.
Description
Remarks
0030
Bezel
0040
Rear cover
0050
Stand Assembly
1050
Display panel
1053
Panel SSB
1054
Power Supply Unit
1056
IR/LED panel
1057
Keyboard control panel
1176
Remote control
Not displayed
1184
Speakers
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

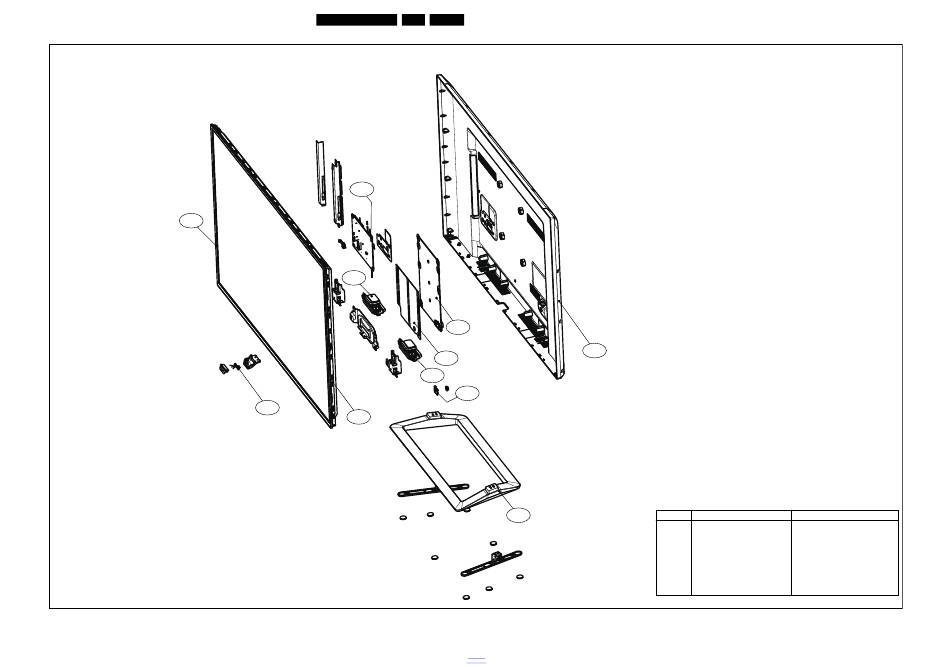

19792_800.eps
