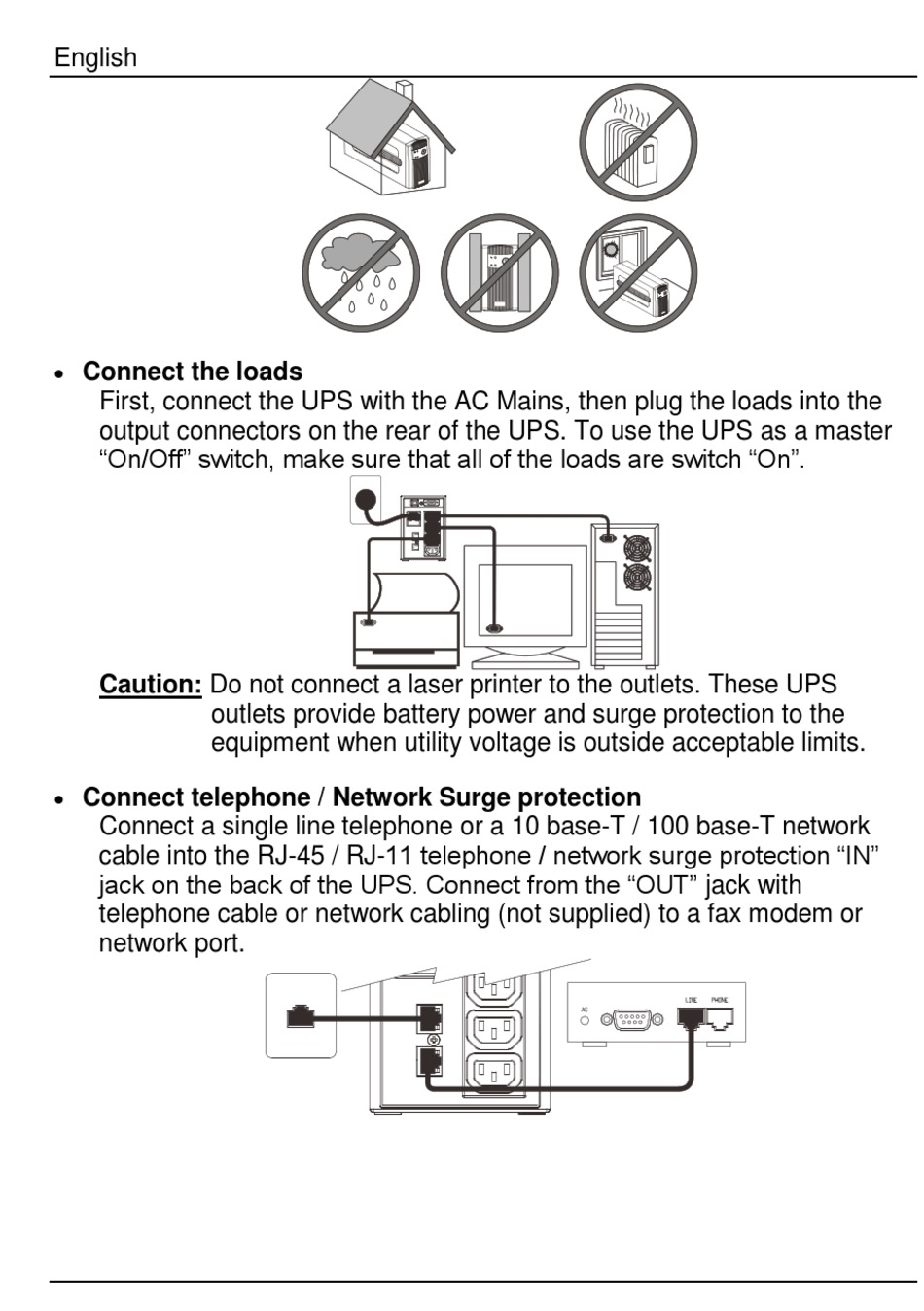

Conceptronic CUPS650 Quick Manual page 4

English

Connect the loads
First, connect the UPS with the AC Mains, then plug the loads into the
output connectors on the rear of the UPS. To use the UPS as a master
"On/Off" switch, make sure that all of the loads are switch "On".
Caution: Do not connect a laser printer to the outlets. These UPS
outlets provide battery power and surge protection to the
equipment when utility voltage is outside acceptable limits.

Connect telephone / Network Surge protection
Connect a single line telephone or a 10 base-T / 100 base-T network
cable into the RJ-45 / RJ-11 telephone / network surge protection "IN"
jack on the back of the UPS. Connect from the "OUT" jack with
telephone cable or network cabling (not supplied) to a fax modem or
network port.
