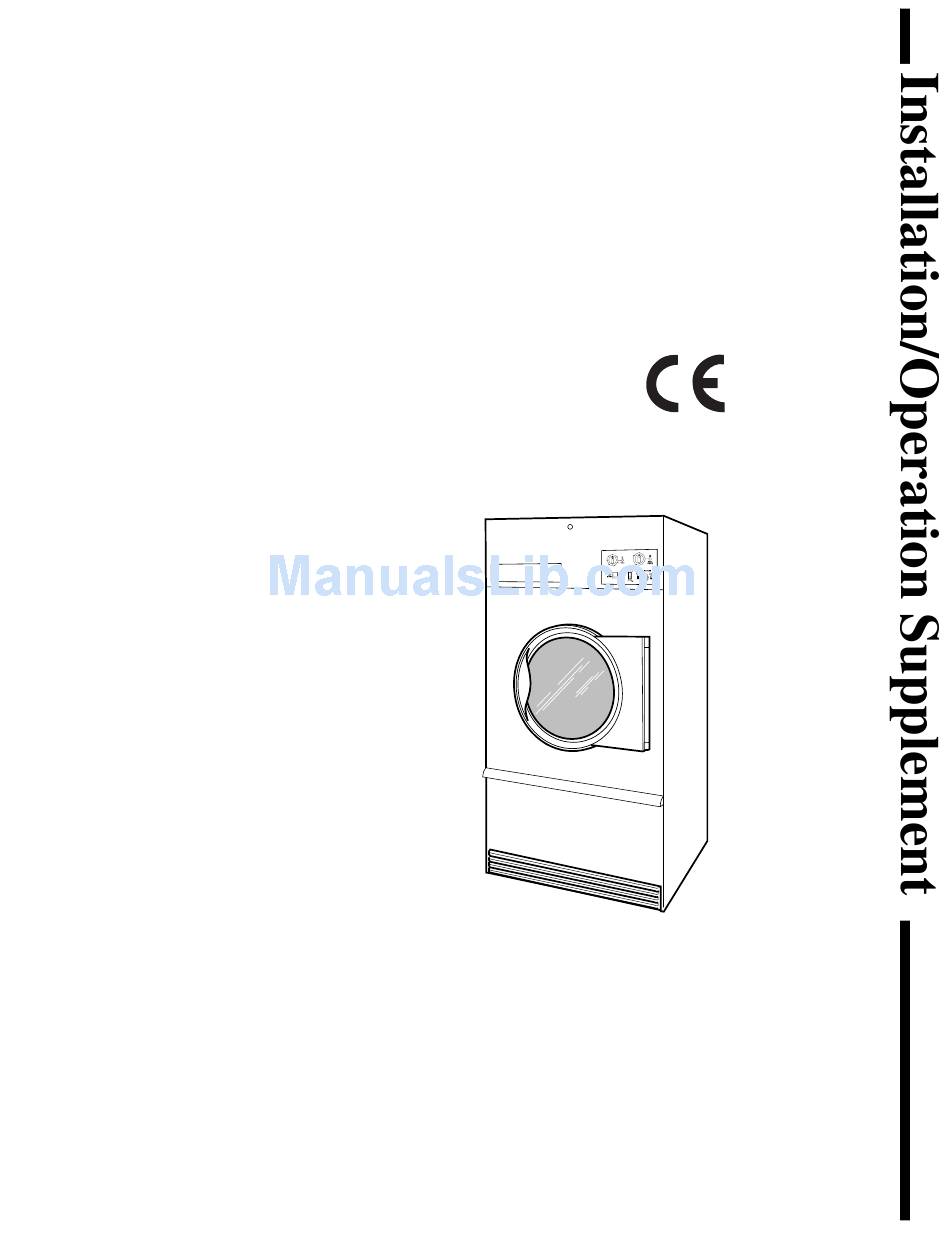

- Page 1 Drying Tumblers Refer to Page 3 for Model Identification Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) 50 Pound Capacity 75 Pound Capacity TMB795C Part No. M414884R10 February 2008...
- Page 3 Installation must conform with local codes. WARNING FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 4: Table Of Contents
Installation/Operation Supplement Table of Contents © Published by permission of the copyright owner. All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. ©... -
Page 5: Introduction
Model Identification Information in this manual is applicable to these models. GU050L GU050N HU050L HU050N 50 Pound KU050L KU050N LU050L GU075L GU075N HU075L HU075N 75 Pound KU075L KU075N LU075L Includes models with control suffixes: BC – basic electronic, coin BG – basic electronic, OPL mode BL –... -
Page 6: Safety Information
Installation/Operation Supplement Safety Information Important Safety Instructions WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. 1. Read all instructions before using the tumbler. 2. - Page 7 22. Install this tumbler according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding, and gas supply must comply with local codes and be made by licensed personnel when required. 23. Remove laundry immediately after tumbler stops. 24. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids.
-
Page 8: Installation
Installation/Operation Supplement Specifications and Dimensions Specifications Noise level measured during operation at operator position of 1 meter (3.3 feet) in front of machine and 1.6 meters (5.2 feet) from floor. Net Weight (approximate): kg (lbs.) Cylinder Size: mm (in.) Cylinder Capacity (dry weight): kg (lbs.) Air Outlet Diameter: mm (in.) -
Page 9: Cabinet Dimensions
Cabinet Dimensions Models Gas and 781 mm 730 mm Electric (30.75 in.) (28.75 in.) 781 mm 730 mm Steam (30.75 in.) (28.75 in.) 781 mm 730 mm Gas and (30.75 in.) (28.75 in.) Electric 781 mm 730 mm Steam (30.75 in.) (28.75 in.) * H, S and U models prior to Serial No 0308001307 and all other models. -
Page 10: Horizontal Exhaust Outlet Locations
Installation/Operation Supplement Horizontal Exhaust Outlet Locations TMB811N TMB811N Models 137 mm 203 mm 340 mm 050/075 (5.375 in.) (8 in.) (13.375 in.) © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414884 (EN) -
Page 11: Gas Connection Locations
Gas Connection Locations Models © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414884 (EN) TMB812N Diameter 1/2 in. NPT 394 mm (15.5 in.) 1/2 in. NPT 400 mm (15.75 in.) Installation/Operation Supplement TMB812N 1670 mm (65.75 in.) 1670 mm (65.75 in.) -
Page 12: Electrical Connection Locations
Installation/Operation Supplement Electrical Connection Locations GAS AND STEAM Models Gas and Steam Electric NOTE: These figures are approximate dimensions only. © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT ELECTRIC 241 mm (9.5 in.) 483 mm (19 in.) TMB813N TMB813N... -
Page 13: Steam Connection Locations
Installation/Operation Supplement Steam Connection Locations TMB814N TMB814N Models Diameter 3/4 in. NPT 387 mm 1848 mm 190 mm 1645 mm 050/075 (15.25 in.) (72.75 in.) (7.5 in.) (64.75 in.) © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414884 (EN) -
Page 14: Position And Level The Tumbler
Installation/Operation Supplement Position and Level the Tumbler To reduce the risk of severe injury, clearance of tumbler cabinet from combustible construction must conform to the minimum clearances. NOTE: Shaded areas indicate adjacent structure. 13 mm (0.5 in.) recommended between machines for removal or installation Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. -
Page 15: Fire Suppression System
Fire Suppression System G, H, K, S and U Models Only Water Requirements IMPORTANT: Water must be supplied to the fire suppression system, or the fire suppression system will not operate as intended. Connection point to the electric water solenoid valve is a 19 mm (3/4 inch) hose. -
Page 16: Electrical Requirements
Installation/Operation Supplement Electrical Requirements WARNING Electrical power must be provided to tumbler at all times. The fire suppression system will be inoperative if the main electrical power supply is disconnected. No independent external power source or supply connection is necessary. Power to operate the 24 Volt fire suppression system is from the rear junction/ contactor box. -
Page 17: General Information
General Information This information is to be used when installing gas tumblers in countries, and/or on gases, different than the machine’s factory configuration. Tumblers are supplied from the factory for operation on Natural Gas or L.P. Gas in the countries of GB/IE/PT/ES/IT/GR/ LU/CH. - Page 18 Installation/Operation Supplement Country Gas Type Group Code Natural Gas L.P. Gas Natural Gas L.P. Gas Burner orifice information at 0-600 meters (0-2000 feet) altitude. N/A = Part no longer available. © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT Burner Supply Orifice...
-
Page 19: Exhaust Requirements
Exhaust Requirements WARNING A drying tumbler produces combustible lint. To reduce the risk of fire, the tumbler must be exhausted to the outdoors. To reduce the risk of fire and accumulation of combustible gases, DO NOT exhaust tumbler air into a window well, gas vent, chimney or enclosed, unventilated area such as an attic wall, ceiling, crawl space under a building, or concealed space of a... -
Page 20: Electrical Requirements
Installation/Operation Supplement Electrical Requirements WARNING To reduce the risk of electric shock, fire, explosion, serious injury or death: • Disconnect electric power to the tumbler before servicing. • Close gas shut-off valve to gas tumbler before servicing. • Close steam valve to steam tumbler before servicing. -
Page 21: Steam Requirements
Steam Requirements Obtain specific steam service pipe sizes from the steam system supplier or a qualified steam fitter. Refer to Figure 3 for proper steam pipe ● configurations. When tumbler is on the end of a line of ● equipment, extend header at least 1.2 meters (4 feet) beyond tumbler. - Page 22 Installation/Operation Supplement NOTE: Refer to Table 2 for sizing of steam lines. Piping must also be sized accordingly for length of runs, and number of elbows. Supply 305 mm (12 in.) Riser Shut-Off Valve Condensate Return Line from Supply Line Return Check Valve Vacuum Breaker (Optional)
-
Page 23: Operation
To reduce the risk of fire: • DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials. • DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning cloths, or anything dry-cleaned at home with a dry-cleaning solvent. •... -
Page 24: Control Instructions
Installation/Operation Supplement Control Instructions Electromechanical Coin Control CD, CX and CY Control Suffixes 1. Set the TEMPERATURE selector at HIGH or LOW, or anywhere between these settings. TEMPERATURE HIGH Figure 5 2. Coin Drop Models: Insert the coin(s) in the coin slot, turn the knob to the right and release it. -
Page 25: Manual Timer Control
Manual Timer Control MT and RT Control Suffixes 1. Set the HEAT/DRYING timer for the number of minutes (from 0-60) desired. HEAT Figure 8 2. Set the COOL DOWN/COOLING timer for the number of minutes (from 0-15) desired. COOL DOWN Figure 9 3. -
Page 26: Dual Digital Timer Control
Installation/Operation Supplement Dual Digital Timer Control QT and RQ Control Suffixes 1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob. Figure 13 2. Set the HEAT TIME for the number of minutes (from 0 - 60) desired. Figure 14 3. -
Page 27: Electronic Opl Micro Control
Electronic OPL Micro Control G Models Through Serial No. 0110002231 and H, L, P, S, U and Y Models with OM and RM Control Suffixes 1. To use an Automatic Cycle, press an ON/ SELECT pad. Select HIGH, MEDIUM, MED LOW, LOW or NO HEAT for items that should not be dried with heat. - Page 28 Installation/Operation Supplement G Models Starting Serial No. 0707xxxxx and K Models with OM and RM Control Suffixes 1. To use an Automatic Cycle, press a TEMPERATURE pad. Select HIGH, MED, LOW, DELICATE or NO HEAT for items that should not be dried with heat. A light to the left of the selected pad lights up.
-
Page 29: Single Drop Control
Single Drop Control SD and SX Control Suffixes 1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob. Figure 27 2. Insert the coin(s) in the coin slot. Figure 28 3. Press START button to start tumbler. Figure 29 IMPORTANT: To stop the tumbler at any time during the cycle, OPEN DOOR. -
Page 30: Ignition Control Operation
Installation/Operation Supplement Ignition Control Operation Diagnostic LED (DGN LED) / Error Codes The Diagnostic LED or DGN LED is located by the power connector on the ignition control. Refer to Figure 33. The Diagnostic LED will indicate the status of the ignition control. Refer to Table 3. LED Color Description Orange-Yellow... -
Page 31: Disposal Of Unit
Installation/Operation Supplement Disposal of Unit This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
