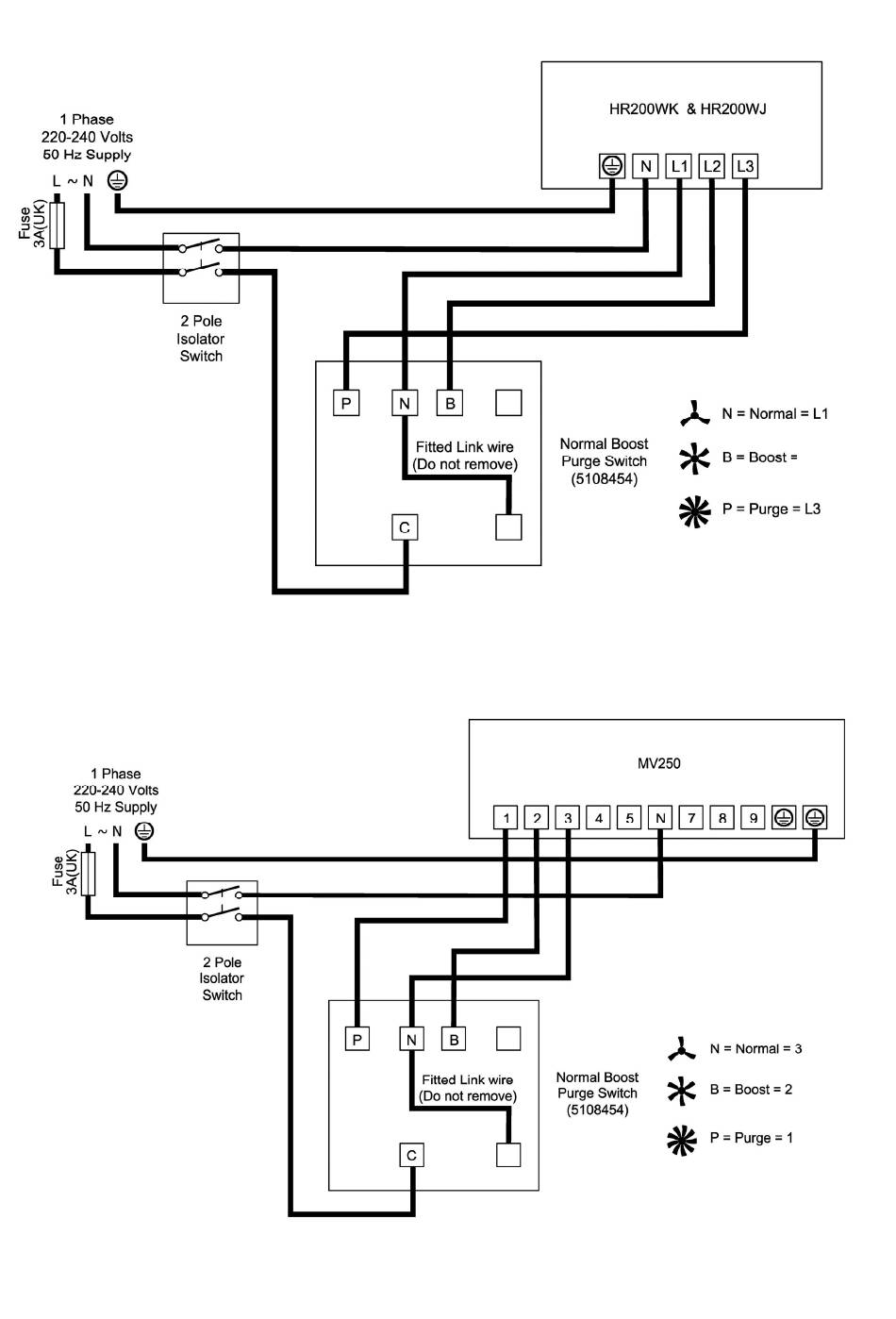

Fig.1. Wiring a HR200WK & HR200WJ to enable switching between Normal, Boost & Purge speeds
L2
Fig.2. Wiring a MV250 to enable switching between Normal (Low), Boost (Med) & Purge (High) speeds
3
