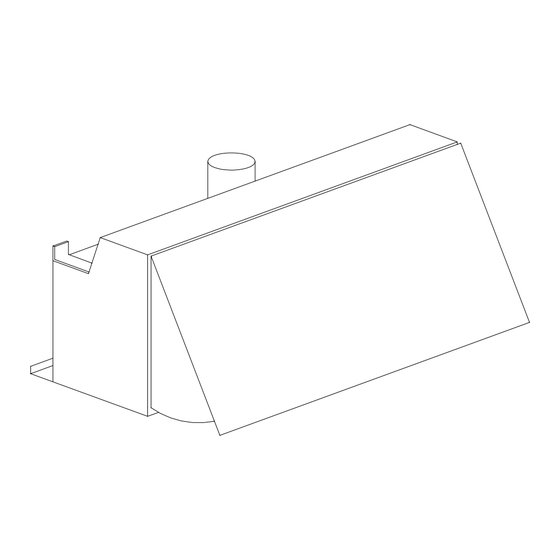

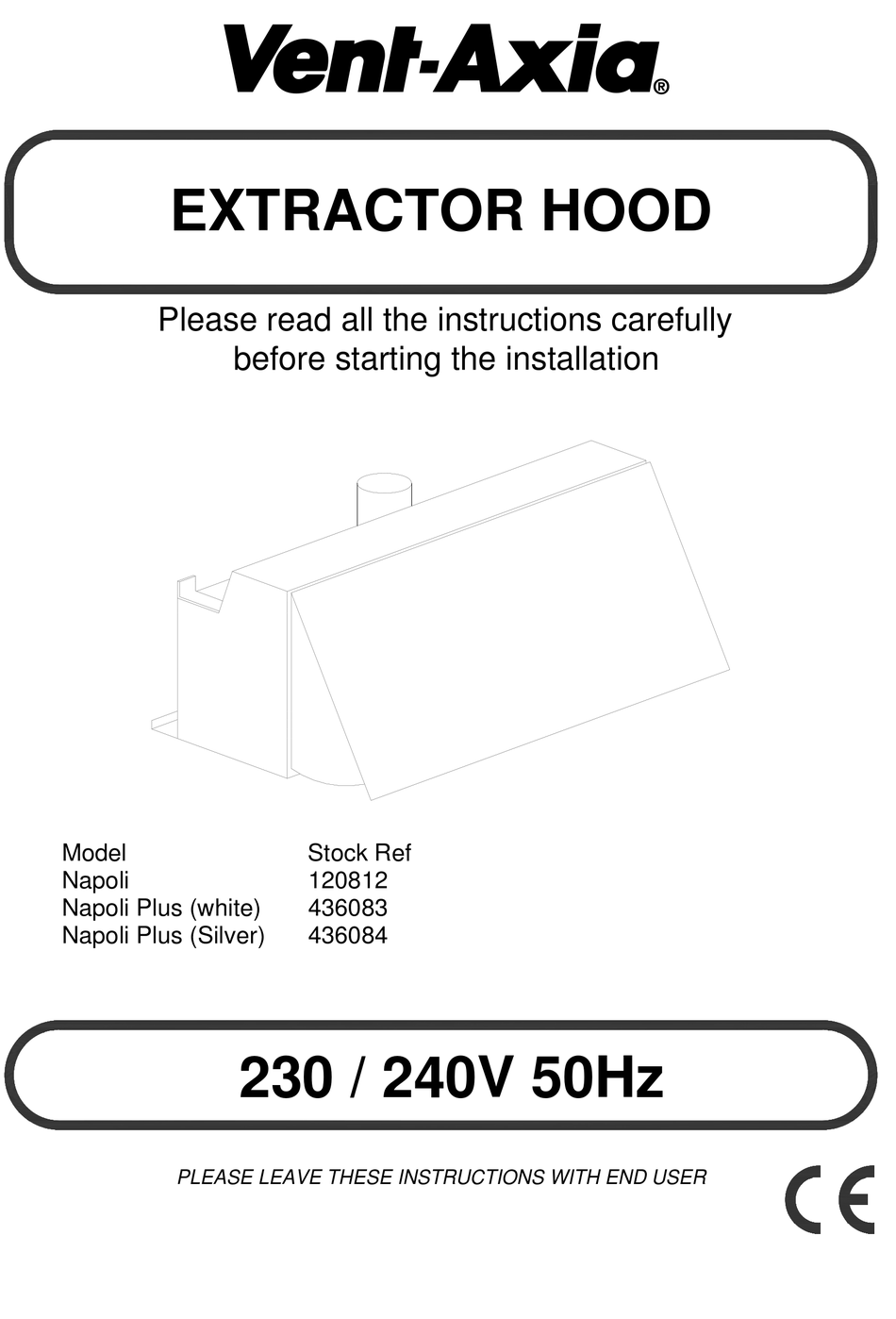

- Page 1 EXTRACTOR HOOD Please read all the instructions carefully before starting the installation Model Stock Ref Napoli 120812 Napoli Plus (white) 436083 Napoli Plus (Silver) 436084 230 / 240V 50Hz PLEASE LEAVE THESE INSTRUCTIONS WITH END USER...
- Page 2 PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION THESE INSTRUCTIONS DESCRIBE THE VARIOUS TECHNICAL DETAILS OF YOUR EXTRACTOR HOOD AND ITS USE SAFETY If the extractor hood is installed in a room containing a fuel burning appliance the installer must ensure that air replacement is adequate for both the extractor hood fan and the fuel burning appliance.
- Page 3 Cut a hole for the 100mm diameter ducting or grille. Lift the extractor hood and hook the wall brackets M onto the hooking plates P. See Figures 3 and 4. To obtain the required depth loosen the screws R, adjust the brackets M and re-tighten the screws R.
- Page 4 To switch on/off the mains to the appliance: Use the switch D. When this switch is off “0” neither the lighting nor the fan switches will work. To switch on/off the extractor hood lighting: If switch D is on “1” then switch C turns the lighting on and off. The lamps work independently on the fan and hood door.
- Page 6 Vent-Axia guarantees this product for one year from the date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s discretion the product will be replaced without charge, provided that the product: Has been installed and used in accordance with the instruction given with each unit.
