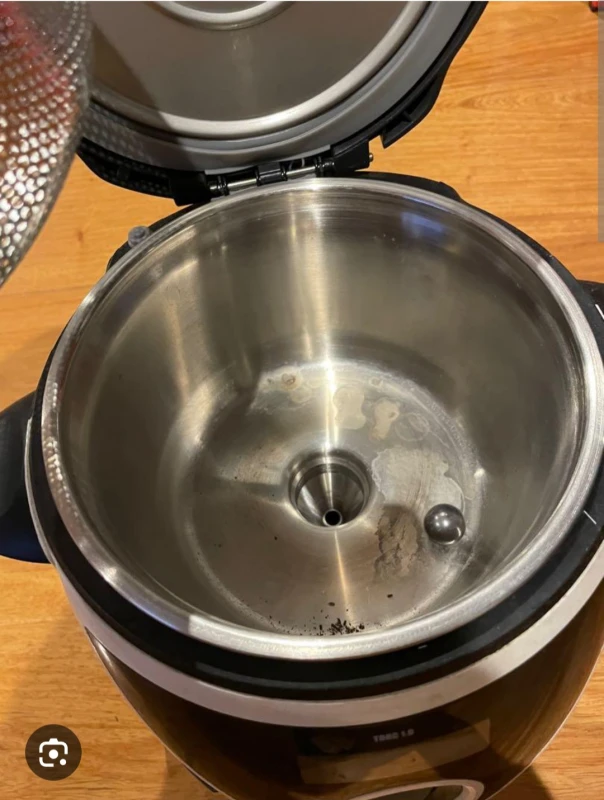

good morning, I need help, I lost the steel ball of my Grayns rice cooker, can you tell me the diameter? thanks

User image 683f756c66ccb

Subscribe to Our Youtube Channel

Summary of Contents for Grayns Torc 3.3

  • Page 1 (638568 - P) info@grayns.com +601 6520 5949 7474 service@grayns.com Grayns Labs USA Inc. Grayns Labs USA Inc. +603 2693 1132 www.grayns.com...
  • Page 3: About Grayns

    ABOUT GRAYNS™ The GRAYNS™ Rice Cooker is an amazing invention that redefines healthy living by cooking rice in the traditional way along with the convenience of smart modern living. Rice cooked in GRAYNS™, undergoes an intelligent 4-stage cooking process that...
  • Page 4: Table Of Contents

    INDEX ABOUT GRAYNS IMPORTANT INFORMATION FAMILIARIZING YOURSELF WITH THE GRAYNS RICE COOKER IMPORTANT USER WHAT’S INSIDE YOUR GRAYNS BOX GRAYNS TORC 3.3 OVERVIEW INFORMATION & CONTROL PANEL INSTRUCTION DIGITAL CONTROL INTERFACE ERROR SCREEN PREPARING YOUR GRAYNS RICE COOKER PREPARATION TO COOK...
  • Page 5: Important Information

    IMPORTANT INFORMATION - Read The Following Instruction Carefully Do not immerse the appliance in water or splash with water and clean after use with proper step. Refer to Page 33 for Maintenance Instruction. PAGE 3 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 6: Familiarizing Yourself With The Grayns Rice Cooker

    FAMILIARIZING YOURSELF WITH THE GRAYNS RICE COOKER WHAT’S INSIDE YOUR GRAYNS BOX Strainer Basket Made from stainless steel to hold your rice and let the water drain perfectly. Steel Ball Marble sized stainless steel ball that allows the water to drain.
  • Page 7 Accessories: Power Cable Connect the cooker to a power supply. Measuring Cup Use to measure the amount of rice for cooking. PAGE 5 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 8: Grayns Torc 3.3 Overview

    FAMILIARIZING YOURSELF WITH THE GRAYNS RICE COOKER GRAYNS TORC 3.3 OVERVIEW Steam vent Lid slot Steam cover Screen display Navigation button Holder Starch collector lid Starch collector Air ventilation outlet Power in Air ventilation inlet GRAYNS™ - INSTRUCTION MANUAL PAGE 6...
  • Page 9: Control Panel

    FAMILIARIZING YOURSELF WITH THE GRAYNS RICE COOKER CONTROL PANEL - Navigation Button Navigation Button How to Operate Press UP / DOWN - Move option / next / previous Press OK - To confirm / select / ok / yes / no Press OK &...
  • Page 10: Digital Control Interface

    FAMILIARIZING YOURSELF WITH THE GRAYNS RICE COOKER DIGITAL CONTROL INTERFACE- Screen Display WELCOME SCREEN Screen Display MAIN MENU Selection bar Features option & number Command Current cooking setting / next setting TIMING SELECTION Command option Time Option ‘HOUR’ Time Option ‘MINUTE’...
  • Page 11 COOKING SETTING Setting Option Selection Bar Description Setting option Command Current setting by number Current setting bar COOKING PROGRESS Current Features Current Process Progress Timing Progress Percentage Progress Bar PAGE 9 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 12: Error Screen

    Please make sure you put inner container inside the rice cooker. If the error persist even when the inner container is inside the rice cooker please seek technical help. GRAYNS™ - INSTRUCTION MANUAL PAGE 10...
  • Page 13 Open the lid and let it cool down for at least 15 minutes. Close the lid and restart cooking process. If the error persist, please seek technical help. Blinking of the buttons will indicate the error. PAGE 11 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 14: Preparing Your Grayns Rice Cooker

    PREPARING YOUR GRAYNS RICE COOKER Please ensure the Steel Ball and the Inner Container is in the right position and firmly placed to avoid any leakage or failure to perform. Place Starch Collector Lid (5) and Starch Collector (6), Strainer Basket (1), Inner Container (3) and Steel Ball (2) into the cooker in the right position.
  • Page 15: Preparation To Cook

    PREPARING YOUR GRAYNS RICE COOKER PREPARATION TO COOK Take the strainer basket & starch collector out of the rice cooker. Remove the starch collector lid, and put the strainer basket into the starch collector. PAGE 13 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 16 Please refer to until the water become relatively the marking on the strainer basket. clear. Refer to the cooking preparation on the next page (Page 14) for the ideal ratio to get a satisfactory cooking results. GRAYNS™ - INSTRUCTION MANUAL PAGE 14...
  • Page 17: Preparing Grayns Rice

    PREPARING YOUR GRAYNS RICE COOKER PREPARING GRAYNS RICE Maximum water level Water = Maximum Rice Approx 3.3L or 18 cups 4 cups 3 cups 2 cups 1 cup MAXIMUM *use 4 cup of 180ml (6 oz) measuring cup To facilitate the release of starch from the rice, fill the container with water up to the mark indicated regardless of the amount of rice you used.
  • Page 18 Close the Lid properly. Make sure the steam cover is in place especially after washing it. Press the top to ensure that it is properly closed to avoid any steam spillover. GRAYNS™ - INSTRUCTION MANUAL PAGE 16...
  • Page 19 Wait until the welcome menu appears. Please proceed menu selection. Check the screen for any ERROR! If there is a ERROR message, please follow the instruction indicated on Page 9 & Page 10. PAGE 17 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 20: How To Cook Grayns Rice

    HOW TO COOK GRAYNS RICE - Select Type of Rice (DEFAULT) The default settings are set for most basic type of rice; Long Grain, Medium Grain, Short Grain and also Brown Rice. Press DOWN - find menu Press OK - select customize...
  • Page 21: Cooking (Default)

    HOW TO COOK GRAYNS RICE - Cooking (DEFAULT) current setting Press OK - confirm menu - continue cooking Make sure the setting is correct & continue cooking. The setting is save as your default setting PAGE 19 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 22: Customize Your Rice

    HOW TO COOK GRAYNS RICE - Customize Your Rice Customize the settings according to your preference and taste. For Softness, set the number higher for a softer rice and lower the number for a harder rice. For Moisture, Press OK - select customize...
  • Page 23 HOW TO COOK GRAYNS RICE - Customize Your Rice Once the setting is done, it will be saved as your default. The following cooking will start with the setting that has been saved previously. Press DOWN - make a selection...
  • Page 24: Cooking (Customize)

    HOW TO COOK GRAYNS RICE - Cooking (CUSTOMIZE) current setting Press OK - confirm menu - continue cooking Make sure the setting is correct. The setting is saved as your default setting GRAYNS™ - INSTRUCTION MANUAL PAGE 22...
  • Page 25: Cooking Process

    HOW TO COOK GRAYNS RICE - Cooking Process Please wait until the cooking process is ‘Completed’. Press the OK button to return to main menu. Then switch off the power. Wait..Wait..Wait..Wait..Done! Press OK for a few seconds- to...
  • Page 26: How To Soak

    HOW TO SOAK Rinse the rice, repeat the instruction for PREPARING YOUR GRAYNS RICE COOKER accordingly (Page 12). Make sure the rice does not exceed the maximum level. Put the rice and strainer basket into the rice cooker, then add the exact amount of water.
  • Page 27 HOW TO SOAK You can use the SOAK function of GRAYNS rice cooker with other things beside rice like grains, potatoes or vegetables. Set the time in hours or minutes as per your Press DOWN - make a selection Press OK - select soak requirement.
  • Page 28 Wait..to main menu. Soak & Cook If you wish to soak & cook please refer Page 26. Wait..Done! Press OK for a few seconds - to return Return to the main menu GRAYNS™ - INSTRUCTION MANUAL PAGE 26...
  • Page 29: How To Soak & Cook

    Press OK - confirm setting - proceed to minute Press UP / DOWN - increase/reduce the time setting (minute) Press OK - confirm setting Press OK - confirm setting - select start * select back to return to Main Menu PAGE 27 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 30 Wait..The heat on the buttons is normal due to the heat transfer from the cooking process. Wait..Wait..Done! Press OK for a few seconds - to return Return to the main menu GRAYNS™ - INSTRUCTION MANUAL PAGE 28...
  • Page 31: How To Re-Heat

    Wait..Please make sure you put one cup of water inside the inner container before you start Re- Heat. Done! Press OK for a few seconds - to return Return to the main menu PAGE 29 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 32: How To Cancel Progress (Reset)

    / soaking progress. Wait until the screen return to the welcome screen Press OK & hold for a few seconds and the main menu. Wait..Return to the main menu GRAYNS™ - INSTRUCTION MANUAL PAGE 30...
  • Page 33: Serving

    Be careful with the hot steam coming out of the steam vent. If you open the lid during the cooking process, screen will shows ERROR! Please close the lid to resume the process. PAGE 31 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 34 AT LEAST cool down for 30 MINUTES and please clean washed parts properly before fur- ther use. GRAYNS™ - INSTRUCTION MANUAL PAGE 32...
  • Page 35: Maintenance

    RINSE WELL AND DRY COMPLETELY BEFORE RE-USING. Make sure the steel ball and the inner container’s cone are cleaned properly to prevent any possible leakage or blockage. Any impurities and defects may cause malfunction. PAGE 33 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 36 Allow to dry completely before re-using. You must keep the heating plate and lid plate free from any foreign objects. Wipe clean the rice cooker to clear any starch residue. Starch collecting area GRAYNS™ - INSTRUCTION MANUAL PAGE 34...
  • Page 37: Cleaning The Steam Vent

    MAINTENANCE - Cleaning The Steam Vent Lid Cap Remove the Lid Cap. Wipe the Lid Cap and the steam vent with a damp cloth to remove dirt and starch residue. Steam Vent PAGE 35 GRAYNS™ - INSTRUCTION MANUAL...
  • Page 38: Cleaning The Starch Collector

    Let the collector cool down to room temperature before you wash. The collector might cracked because of temperature difference after repeated misuse. Starch collected in this container is not for consumption. It is to be disposed. GRAYNS™ - INSTRUCTION MANUAL PAGE 36...
  • Page 39 PAGE 37 GRAYNS™ - INSTRUCTION MANUAL...
