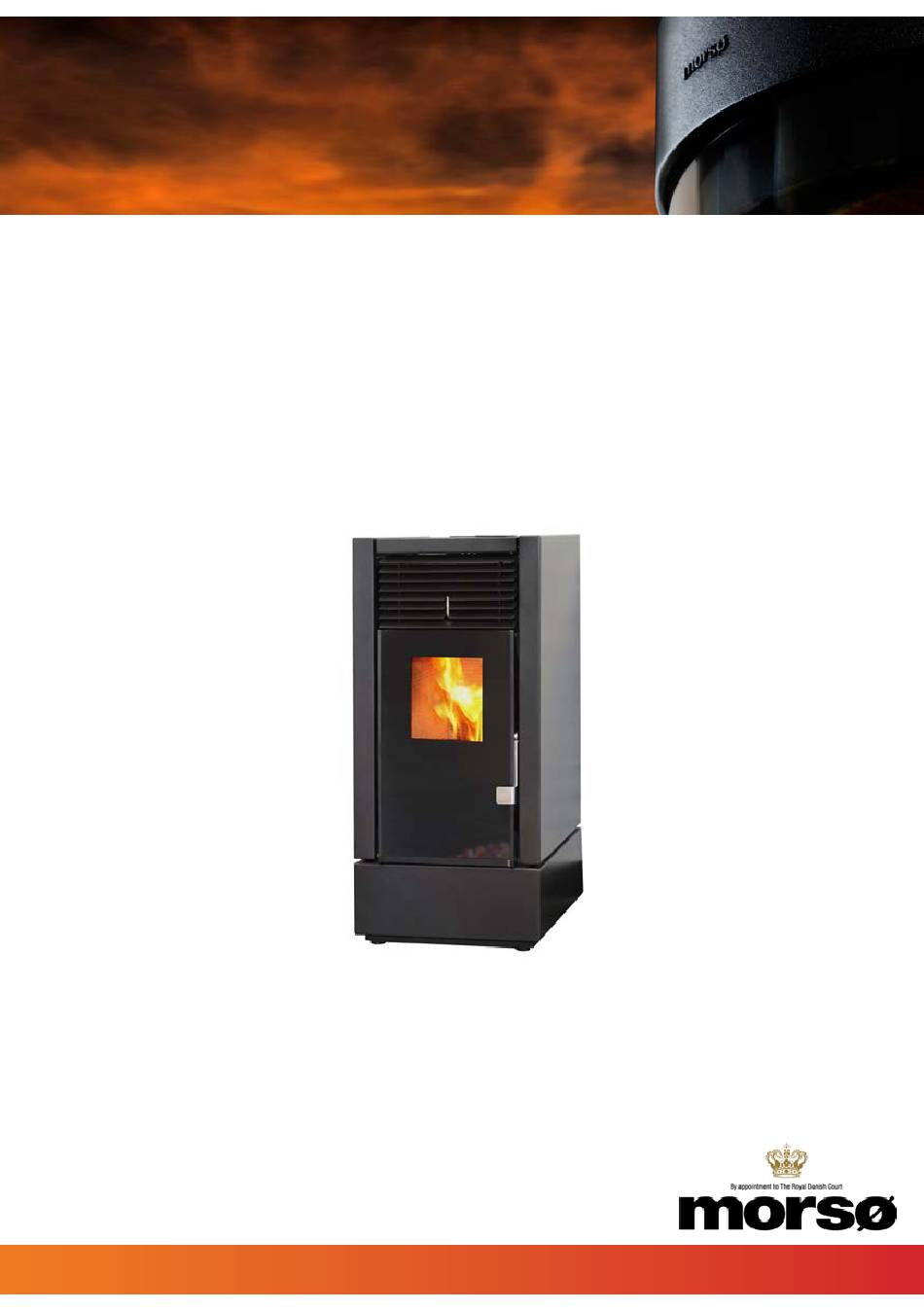

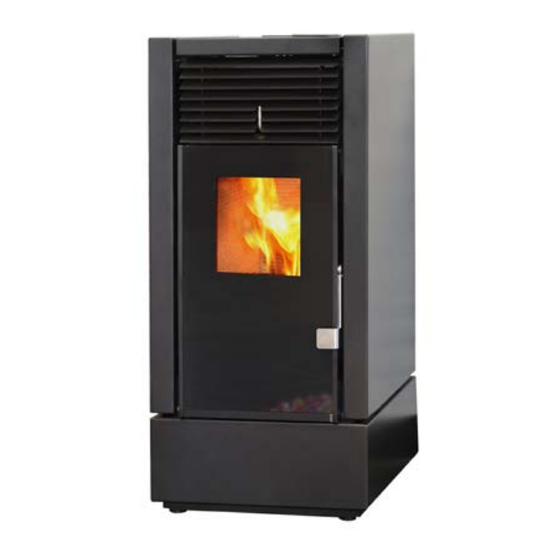

- Page 1 Morsø P30/31 Instructions for installation and use www.morsoe.com...
- Page 2 Regular maintenance of the stove ......27 Technical data ..........38 Morsø P30/31 EN 14 785 MORSØ...
-
Page 3: Table Of Contents
Congratulations on the purchase af your new Morsø pellet stove! 1.0 Installation of your morsø stove Morsø, the largest supplier of the Danish market, has produced Before installation wood-burning stoves of the highest quality since 1853. If you just follow these instructions, we are sure that you will enjoy and Please direct any queries to your Morsø... -
Page 4: The Chimney
(The hearth temperature beneath the P30 and P31 pellet stove does not excede 100°) Combustion of timber (white) pellets causes smoke, which can deposit soot if it comes in contact with walls. -
Page 5: Example Of Chimney Installations
Drawingtype: Drawing no.: P30-08 a Location of file: U:\udv\Tegninger\Pilleovn\Morsø P30\Morsø P30 kofiguration 01A\070-MO-001A.sldasm This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company. A-A (1 : 10) Rev. - Page 6 Material: ERROR!:materiale Format: P30-08 a Location of file: U:\udv\Tegninger\Pilleovn\Morsø P30\Morsø P30 kofiguration 01A\070-MO-001A.sldasm Weight kg: 31.0 Scale: This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company. Morsø P30 Model no.
-
Page 7: Stoking Technique/ Use Of Your Stove
Drawing no.: Drawingtype: P30-08 a Location of file: U:\udv\Tegninger\Pilleovn\Morsø P30\Morsø P30 kofiguration 01A\070-MO-001A.sldasm This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company. Installing a 90° bend is recommended,... -
Page 8: Timber (White) Pellets
2.3 White pellets Comply carefully with the maintenance program. Do not switch off not the pellet stove by cutting off the power supply. Always use P3. Timber (white) pellets are made of sawdust and woodchips. The material may not contain sub- Do not clean the stove before it and the ash have entirely cooled down. -
Page 9: Operating Display And Operating Keys
2.5 Operating display and operating keys The display shows MINUTES CLOCK and the current time: set the minutes using keys 4 or Timer 5 and confirm with key 6 Press key 3 to return to the main menu Menu 02 SET TIME Setting timer 10:35 The timer can be used to schedule the pellet stove on and off for each day of the week with... - Page 10 Example of programmed operation with 2 independent timings: On Thursday, the pellet stove is not turned on Suppose that we want to turn on the stove at 06:00 and turn it off at 08:30 (PROGRAMME 1) and OFF 4 the required room temperature is 21°C with a desired power step of 4. Thursday After accessing MENU 02 as in MENU 02 SET TIME, this screen image appears: PROG - 1...
- Page 11 PROGRAMME 1 is now completed. Menu 05 STATUS operating status Perform the same programming for PROGRAMME 2 (and any PROGRAMME 3 and PROGRAM- This menu can be used to check optimal setting of the most important parameters and some ME 4) with other parameter values. If you do not want to use other PROGRAMMES, check that values that characterise optimal functioning of the stove.
-
Page 12: Functions And Operation Of Your Stove
2.7 Functions and operation of your stove NOTE: The stove can turn off and on many times during the day. This will mean more wear on the ignition tube. The ignition tube is not covered by the guarantee! THE MODULE PHASE During the operating phase (Operation), the aim of the pellet stove is to reach the set room Changing the room temperature setting temperature. - Page 13 Lighting the pellet stove for the first time Using keys 4 and 5, alter the supply of the pellets, from step -5 to 5. Before the pellet stove turned on, the following procedure must be followed: Using keys 6 and 7, alter the draught in the chimney, from step -5 to 5. Check that the system is connected to a chimney approved by the chimney sweep.
-
Page 14: Regular Maintenance Of The Stove
Recommendations 3.0 Regular maintenance of the stove • Turn off the pellet stove in the event of failure or poor function using key P3. • Do not add pellets to the burn pot by hand. 3.1 Cleaning • Accumulations of unburnt pellets in and below the burn pot after an unsuccessful at- To ensure optimal function and safety of your pellet stove, regular maintenance and cleaning tempt at lighting must to be removed, before attempting re-lighting. - Page 15 Cleaning the smoke baffle Only a clean and intact burn pot can ensure problem-free functioning of the pellet stove. Deposits can form during operation, and must be removed immediately. It is easy to see when Long-term use of the pellet stove can lead to soot and ash deposits on the upper face of the The burn pot needs to be cleaned! It only takes a glance.
- Page 16 Using a chimney system terminated by a T-piece with a bottom stopper and possibly a flue cleaning flap, it is possible to brush and vacuum clean the flue from the outlet stub. Material: Weight kg.: Model no. Drawingtype: Location of file: U:\udv\Tegninger\Pilleovn\Morsø P30\Morsø P30 ko (1 : 2) This drawing is Morsø Jernstøberi A/S' prop...
- Page 17 Glass fibre rope to doors 3.2 Beskrivelser af Alarmer In time, the gaskets in the lid will become worn and should be replaced as necessary to avoid Alarm Reason Remedy uncontrolled combustion. Use original Morsø sealing rope. AL01 BLACKOUT Power cut during the operating Press key 3 to turn off and on Glass pane phase...
-
Page 18: Information And Problems
AL08 Combustion chamber dirty/ chim- Clean pellet stove/ pipes/ SAFETY RULES NO UNDER-PRESSURE ney blocked flues Great attention is paid during production of the Morsø pellet stove to each individual component AL12 Flue gas fan running at at least Refer to your Morsø dealer to protect both the user and installer against any accidents. -
Page 19: Guarantee Conditions
3.4 Guarantee conditions Spare parts Morsø thanks you for the trust you have shown in us by purchasing our pellet stove. As the Use only original spare parts. Do not wait for components to wear out before replacing purchaser, you are encouraged to: them. -
Page 20: Technical Data
(Hz) All measurement data in accordance with test standard EN 14 785. Testing has been carried out by an accredited testing institution. The Morsø P30 pellet stove is produced in accordance with these Directives: • 89/106 CEE structural materials •... - Page 21 Morsø Jernstøberi A/S - 10.03.2014 - 72301600...
