Summary of Contents for Sanitaire RSCS280A

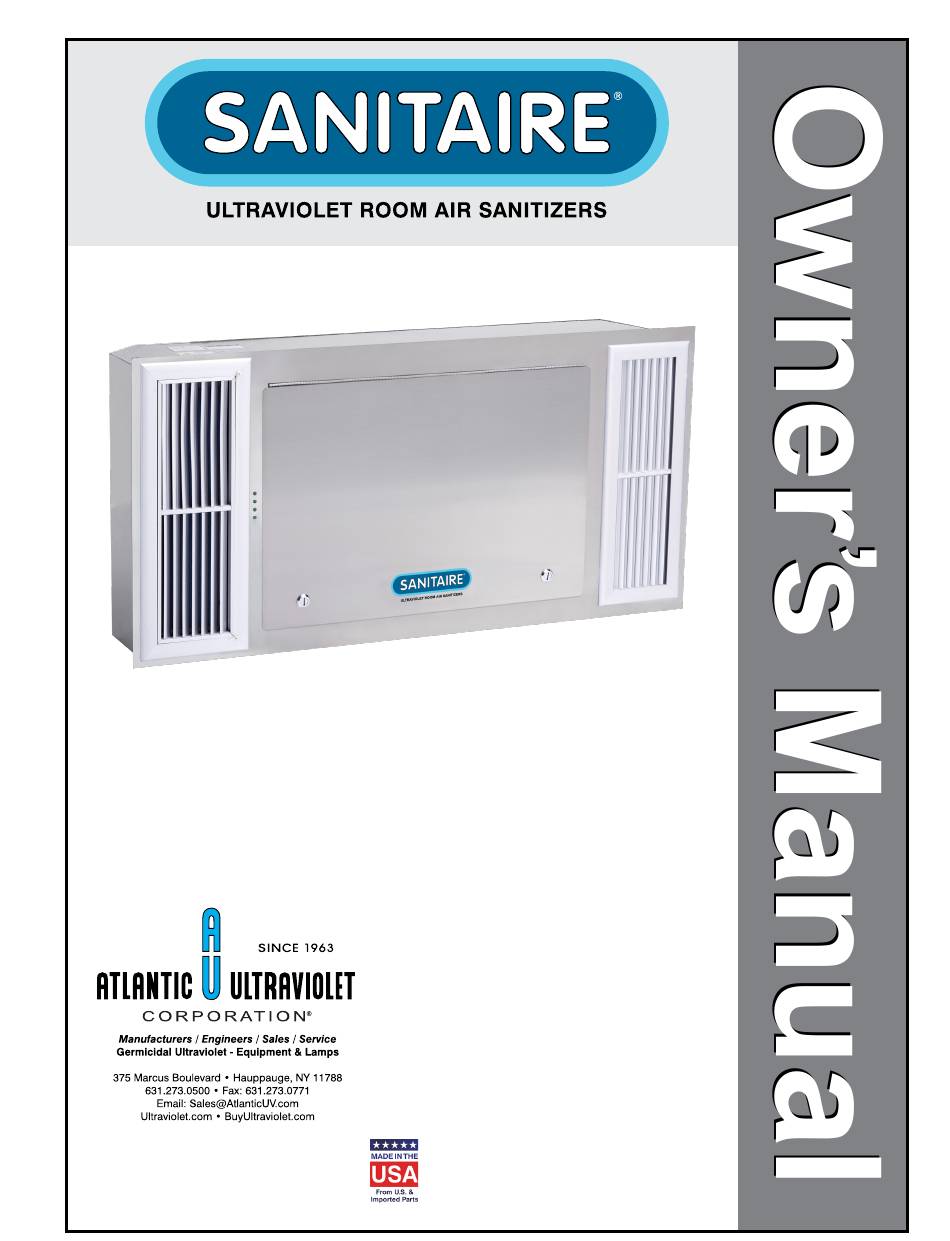

- Page 1 Model RSCS280A Installation, Operation & Maintenance Read and Follow All Safety Instructions. Save These Instructions. Extensive Product Information Available at: Ultraviolet.com BuyUltraviolet.com Document No. 98-1133F4 • September 2019 • ©2019 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
These instructions generally describe the installation, operation and maintenance of the SANITAIRE ® Room Air Sanitizer Model RSCS280A. Questions that are not specifically answered by these instructions should be directed to the Factory. Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. Carefully inspect and ®... -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. -
Page 4: Product Application
® Room Air Sanitizer is categorized as a germicidal ultraviolet fixture that utilizes germicidal ultraviolet lamps that are completely enclosed within an exposure chamber and is safe for use in a clean, dry environment. The SANITAIRE ® effectively destroys airborne microbes including: bacteria, mold and virus in enclosed spaces. -
Page 5: L Imitation Of U Se
The SANITAIRE ® Model RSCS280A fixture is recommended for use in rooms with suspended “T-Bar” ceilings. Access to the room does not need to be controlled while the fixture is operating. The exposure chamber, of the SANITAIRE ® fixture, protects the room’s occupants from ultraviolet exposure by restricting ultraviolet radiation from passing into the room. -
Page 6: Peration And Onitoring Ontrols
The SANITAIRE ® Model RSCS280A is equipped with a safety interlock switch, which will shut down the germicidal lamps when the Access Door is opened. Do not override the safety interlock switch. Operation of the fixture with the interlock switch overridden and the Access Door open will expose personnel to direct or strongly reflected germicidal ultraviolet rays. -
Page 7: Eplacement Or C Leaning
® interior of the fixture with a soft dry cloth, or vacuum. 8. To remove any dust, dirt, fingerprints, smears, etc, from the outer surfaces of the SANITAIRE ® Room Air Sanitizer, moisten a clean, lint-free cloth with denatured alcohol and wipe down the unit. - Page 8 When installing the new lamps, carefully examine the pin configuration on the lamps base to ensure that the lamp is installed correctly into the lamp connector (See Figure 5, which shows the lamp connector and Figure 6, which shows the lamp base, below).
-
Page 9: B Reakage
The SANITAIRE Room Air Sanitizer Model RSCS280A is fitted with a, washable, electrostatic air filter. DO NOT apply • ® oil, or adhesive sprays to the filter. In most applications, regular vacuuming will maintain peak performance of Promate •... -
Page 10: Optional Accessories
Always disconnect power to the unit before performing any service or maintenance. Use personal protection equipment, such long sleeves with no gaps between cuffs and gloves, and ultraviolet resistant face shield, if troubleshooting SANITAIRE ® IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately trained and/or licensed personnel. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Table 2 – Technical Specifications Blower Capacity: (Cubic Feet per Minute) 280 CFM 210 CFM Nominal Fixture Capacity j: (Cubic Feet per Minute) Max Treatment Capacity: (Cubic Feet per Hour) 12,600 ft Max Room Size @ 3 Air Changes/Hour: (Cubic Feet) 4,200 ft Max Room Size @ 4 Air Changes/Hour: (Cubic Feet) 3,150 ft... -
Page 12: User Assistance
For your convenience, record the following information below. The model and serial number can be found on a label located on the SANITAIRE ® Model RSCS280A. Keep this manual, along with proof of purchase, handy when contacting our offices. Purchased From:...
