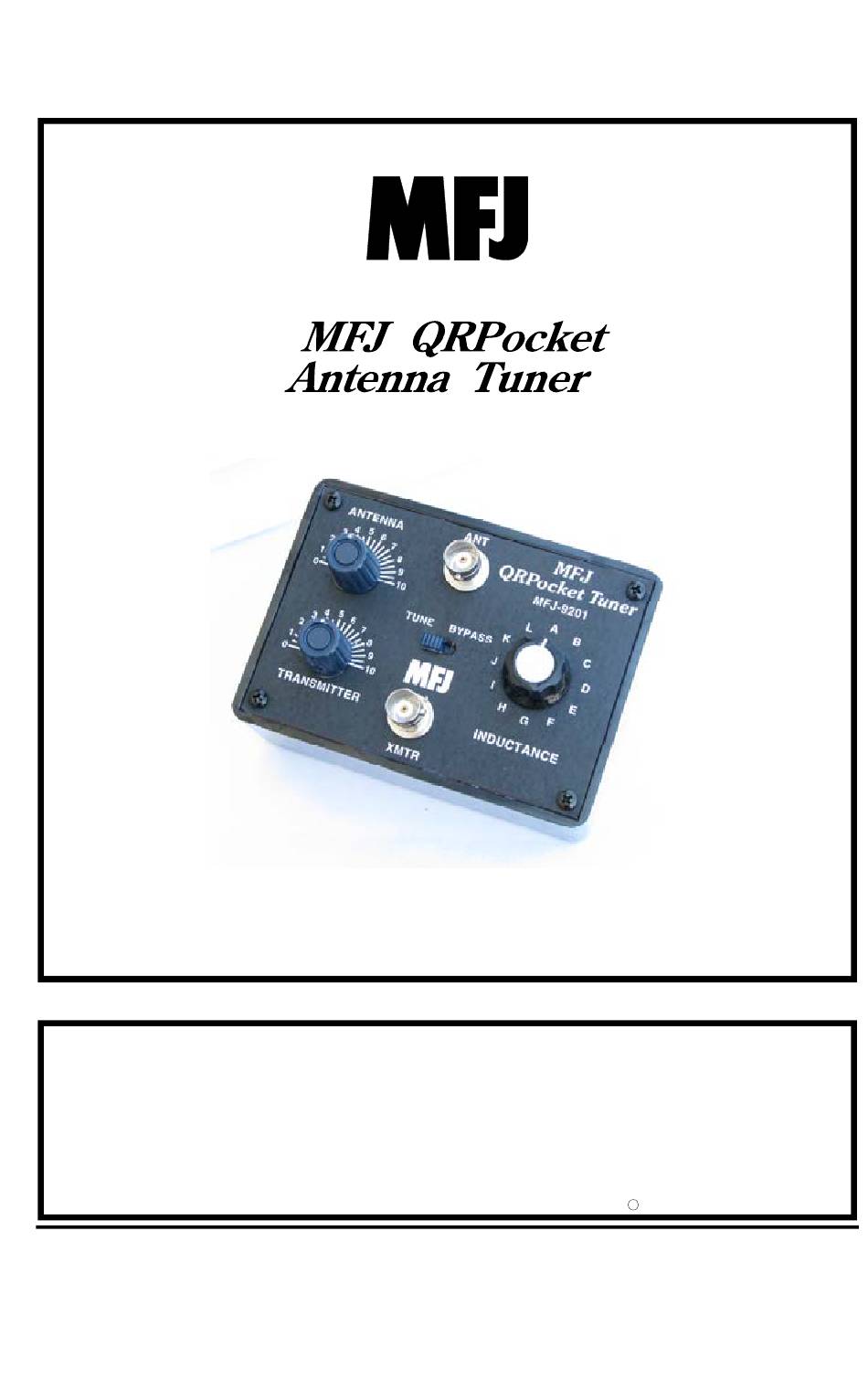

- Page 1 Model MFJ-9201 INSTRUCTION MANUAL CAUTION: Read All Instructions Before Operating Equipment MFJ ENTERPRISES, INC. 300 Industrial Park Road Starkville, MS 39759 USA Tel: 662-323-5869 Fax: 662-323-6551 COPYRIGHT 2011 MFJ ENTERPRISES, INC. VERSION 1A...
- Page 2 You can operate 80 through 10 Meters -- anywhere with any transceiver -- use any coax fed or random wire antenna. It’s great for mobile, base, backpack, etc. The MFJ-9201 handles 100 watts RF output and has a tuner bypass switch. The MFJ-9201 has BNC connectors for input and output.
- Page 3 Special Note: Always use the minimum amount of inductance as possible. Minimum inductance gives the best efficiency, maximum power handling, and widest bandwidth. The MFJ-9201 covers 80 through 10 meters. Do not operate on 160 meters. Tuning Procedure: 1. Position the TRANSMITTER control to 5 on the corresponding scale.
