Instruction Manual
Instruction Manual

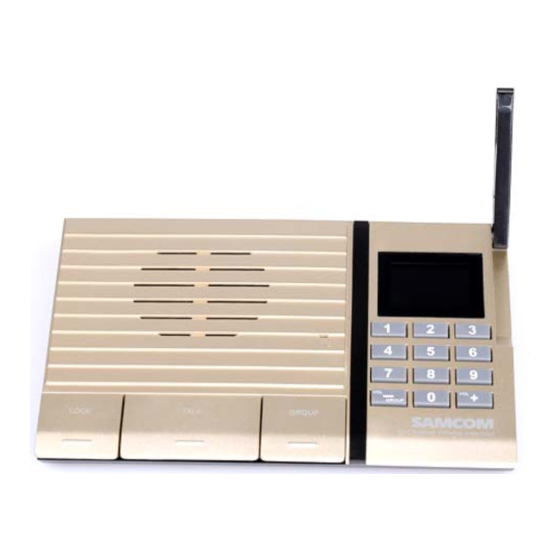

Digital Wireless Intercom SAMCOM SAMCOM FTAN20AA (FTAN20AB, FTAN20AC,FTAN20AD)
Features of Model FTAN20A
● One-to-one communication for intercoms between rooms in your home or office.
● One-to-many communication for calling family or office members, delivering
announcements, or emergency calls.
● This device can communicate with specific types of handhold intercoms for
instructing and dispatching mobile personnel.
●Certain mobile power supply types can be used for this device.
Sancon Inc.
1
Advertisement
Related Manuals for SAMCOM FTAN20AA
Summary of Contents for SAMCOM FTAN20AA
- Page 1 Instruction Manual Digital Wireless Intercom SAMCOM SAMCOM FTAN20AA (FTAN20AB, FTAN20AC,FTAN20AD) Features of Model FTAN20A ● One-to-one communication for intercoms between rooms in your home or office. ● One-to-many communication for calling family or office members, delivering announcements, or emergency calls. ● This device can communicate with specific types of handhold intercoms for instructing and dispatching mobile personnel. ●Certain mobile power supply types can be used for this device. Sancon Inc.
- Page 2 GET ACQUAINT ABC Switch DC Input (Mini USB) Antenna Selective icon Power On icon LCD Display Channel icon Keys LOCK TALK GROUP Group icon VOL icon ABC icon...
- Page 3 FTAN10A SETUP INSTRUCTIONS 1. Plug in and power on the device. 2. Set a different number for each device. Press and hold the "-" button for 5 seconds, and you will hear the sound "DU" twice. Then the LCD will indicate "Group Call 0", and you will see a flickering "0". Press the “LOCK”, “TALK”, or ”GROUP” buttons to go to the Channel number setting, and the LCD will display "Channel 1" with a flickering "1". Select and press the number you want to set using the keyboard (1-19 numbers available for setting), and press one of the buttons (LOCK, TALK, or GROUP) again to complete the set-up. 3. Place the devices to the corresponding rooms for use. FTAN10A OPERATION ● One-to-one Select and press the number of the person you want to talk with, and the LCD will display "Selective + the number" you have pressed. Press "TALK" to talk, and the receiver will hear your voice when you release the button. The receiver can answer or start a new conversation using the same method above. Tap "LOCK" to talk without pressing and holding the button, and press "LOCK" again talking. The receiver can answer or start a new conversation using the same method. Notes: The LCD display turns red during all communications. The LCD display returns to normal after the communication. ...
- Page 4 ● One-to-many Press "Group" to talk. During the communication, all other devices can hear you when the LCD display turns red. ● Infant and elderly monitor (10 hours) Go to the room you want to monitor, and press your own number and the "LOCK" button. Then, the LCD display will turn red and indicate "Selective+ your own number". After the above operation, you will hear any sound from the room you want to monitor, and this status will continue for 10 hours You can repeat this if you would like to continue monitoring for more than 10 hours. ● Adjusting the volume Fast press "+" or "-" to adjust the volume. ● ABC Stall switch All intercoms are originally set to A. If another person is also using A, or if there is interference on this frequency, you may switch all devices to B or C. ● Change the GROUP number The GROUP number set to "0"as default. The default GROUP number can be changed if you find that the GROUP number is being used by others or if interference is present. The method to change the GROUP number is as follows: Press and hold the "—" button for 5 seconds, and you will hear a "DU" sound twice. Then ,the LCD will indicate "Group Call 0" with a flickering "0". Set the number using the keyboard (the number should not be identical to the number set for one–to-one operations), and press one of the buttons (LOCK, TALK, or GROUP) to finish the set-up. Then, the LCD will display and flicker “Channel number”. Press one of the buttons (LOCK, TALK, or GROUP) to complete the set-up.
-
Page 5: Troubleshooting
TROUBLE SHOOTING I. Faults during start-up 1) Check whether the power supply or power adapter properly plugged in. 2) When the device is being plug in, do not press the button" LOCK”, “TALK”, or “GROUP”. 3) Check whether the power outlet has power or if the plug of the device is properly connected to the power outlet. 4) Check whether the power cord is defective by connecting to other devices. 5) Check the power supply of the device by connecting to another power supply or outlet. II. Noise, no sound, or other sound interference 1) Do not open but close the antenna to the factory default position. 2)The distance between two devices should be over 2 meters, and turn down the volume to decrease interference. 3) The distance of the device with other electrical equipment should be more than 1 meter, in order to avoid interference from the electrical equipment. 4) Re-plug in the power cable and ensure that the device is properly plugged in. 5) Do not lay the power cable on the surface of the device. 6) Change to a new Channel number. III. Connection failure or the receiver hears no voice 1) Do not open but close the antenna to the factory default position 2) Check whether all devices are set in A, B or C. 3) Check whether the devices are in the same Group number. If not, re-set all devices to the same group number. -
Page 6: Important Precaution
4) Ensure that the correct communication button is pressed by the speaker, and that the LCD display becomes red. 5) If the "LOCK" button is pressed by a user to speak to the other person, the "LOCK" button should be pressed again after speaking, otherwise the person on the other side will not be able to speak through the device. IMPORTANT PRECAUTION Note the following important precautions before using INTERCOM for the first time. This INTERCOM contains precious electronic components, Avoid temperature extremes during use storage, and do not subject it to strong impact. Avoid using it in area where it might come into direct contact with liquids and avoid very high humidity. Never try to open the INTERCOM or take it apart. Doing so can lead to serious damage and malfunctions Clean the unit by wiping it with a soft dry cloth. You can also use a soft cloth moistened with a weak solution of a mild neutral detergent and water. Wiping as much liquid as possible from the cloth before wiping the INTERCOM. Never use thinner, benzene, or other volatile agents. or alcohol to clean the unit. Do not use allow the unit to be exposed to direct sunlight, heat from the heaters, or other source from heat (greater than 60 degree C). ... - Page 7 CHANNEL NUMBER WITH FREQUENCY Frequency (MHz) Frequency (MHz) Frequency (MHz) Channel Channel Channel 462.6625 467.5625 462.7250 467.7125 462.7125 462.7000 467.6875 462.6875 462.6750 467.6625 462.6375 462.6500 467.6375 462.6125 462.6250 467.6125 462.5875 462.6000 467.5875 462.5625...
-
Page 8: The Fcc Wants You To Know
THE FCC WANTS YOU TO KNOW Your intercom might cause TV or radio interference even when it is operating properly. To determine whether your intercom is causing the interference, turn off the stations, if the interference goes away, your intercom is causing the interference. Try to eliminate the interference by: Moving your stations away from the receiver. Connecting your stations to an outlet that is on a different electrical circuit from the receiver. If you cannot eliminate the interference, the FCC requires that you stop using your intercom. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. Important: Do not hold down CALL for more than 10 seconds. The FCC does not allow you to send a continuous tone for more than 10 seconds at a time on FRS frequencies. The user manual must include information stating that operation on GMRS frequencies requires an FCC license, and such operation is subject to additional rules specified in Part 95 including prohibited communications in Section 95.183... - Page 9 (a) A station operator must not communicate: (1) Messages for hire, whether the remuneration received is direct or indirect; (2) Messages in connection with any activity which is against Federal, State, or local law; (3) False or deceptive messages; (4) Coded messages or messages with hidden meanings (“10 codes” are permissible); (5) Intentional interference; (6) Music, whistling, sound effects or material to amuse or entertain; (7) Obscene, profane or indecent words, language or meaning; (8) Advertisements or offers for the sale of goods or services; (9) Advertisements for a political candidate or political campaign (messages about the campaign business may be communicated); (10) International distress signals, such as the word “Mayday” (except when on a ship, aircraft or other vehicle in immediate danger to ask for help); (11) Programs (live or delayed) intended for radio or television station broadcast; (12) Messages which are both conveyed by a wire line control link and transmitted by a GMRS station; (13) Messages (except emergency messages) to any station in the Amateur Radio Service, to any unauthorized station, or to any foreign station; (14) Continuous or uninterrupted transmissions, except for communications involving the immediate safety of life or property; (15) Messages for public address systems. (b) A station operator in a GMRS system licensed to a telephone answering service must not transmit any communications to customers of the telephone answering service.
