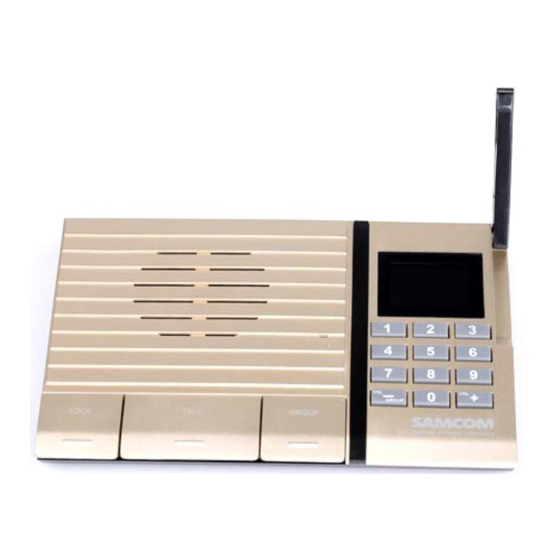

- Page 1 Instruction Manual Digital Wireless Intercom SAMCOM FTAN20AA Features of Model FTAN20AA Simple to use" Instant" Intercom system. Individually call and Group call function. Connect ability to other hand held two way radio. Sancon Inc.
- Page 2 1. Get Acquaint Description of Buttons and Keys ABC Switch DC Input (Mini USB) Antenna LCD Unit 10 Keys LOCK KEY TALK KEY GROUP KEY...
- Page 3 Display symbols and icons Selective icon Power On icon Channel icon ABC icon Group icon VOL icon FTAN20AA SETUP INSTRUCTIONS...
-
Page 4: Step 1 Turn On The Unit
Step 1 TURN ON THE UNIT 1) Fully insert the power cord 2) Check if the switch is on "A" position Step 2 SETTING GROUP NUMBER & CHANNEL NUMBER FOR EACH UNIT You should set Group Number and Channel Number when you get these intercoms. Normally no need to change the Group Number , Unless you found your neighbor has used This number ( you can hear neighbor's speaking or they can hear from you when using) Below is the process way for setting Group Number and Channel Number... -
Page 5: Group Number Setting
For each unit if you buy over 2 units, if only two units, no need to set. After group setting finished, the display will change to " Channel 1" and "1" will keep flash. 4) You can choose new number from 0-19 as separate unit's channel number, of cause GROUP Number can’t be choice again. - Page 6 Channel 4 place in Store … etc. Cautions : 1) The setting method of Samcom 20 channel wireless intercom is differ from Samcom 10 channel wireless intercom. but number 0 to 9 is same frequency. so they can be used in communication if channel number is not over number 9 2) All of the Group Number must set to same number, otherwise Group function is not effective.
- Page 7 2) Within 5 seconds, keep pressing down " TALK" button, the LCD display will get to red, you can speak to Selective Channel (Channel 2), 3) After your speech, please leave " TALK" button then LCD display will get to white, He/She from Selective Channel (channel 2) can answer you by pressing “TALK”...
- Page 8 If you have long words to say at one time ,but don't want to keep pressing the "TALK" button .just press down "LOCK" button , it will let you hand free and have a long speaking 1) If you are in Channel 1 (Reception) want to speak long with Channel 2 (GM Room) first press key "2"...
-
Page 9: Group Operation
(2) Selective Number will be displayed (3) Press LOCK then leave hand the display get to red you can speak (4) Press LOCK once again the display get to white you can listen GROUP OPERATION If you want to speak to all the intercoms simultaneously. The "GROUP" button can help you, Just keep pressing down "... - Page 10 You can adjust the volume by pressing "+" key or "-" key. While volume adjusting icon will be appeared to indicate volume is under adjusting. "+""-"key to increase/reduce volume from 1 to 8 (1) Reduce volume from 1 to 8 (2) Increase volume from 1 to 8 (3) The display will show your current level when you press "+"...
- Page 11 INTERCOM also has unique application for Monitor operation. You can listen other rooms voice continuously around 10 hours to use LOCK key. INTERCOM in the monitor room, select your own channel and press LOCK key. Your room (channel 3) Monitor room (channel 8) (1) In monitor room, press down your channel number such as channel 3, then display is Selective Call 3 (2) Press down LOCK button then the display get red text.
- Page 12 be back to original setting. Channel 8 and display get white. If you still want to monitor you must reset as above process. 4. Important Precaution Note the following important precautions before using INTERCOM for the first time. This INTERCOM contains precious electronic components, Avoid temperature extremes during ●...
-
Page 13: Troubleshooting
Channel CTCSS Frequency (MHz) (Hz) 462.6625 110.9 467.7125 136.5 467.6875 186.2 467.6625 467.6375 467.6125 467.5875 467.5625 462.7125 462.6875 462.6375 462.6125 462.5875 462.5625 462.7250 462.7000 462.6750 462.6500 462.6250 462.6000 Troubleshooting... - Page 14 1. Can't Power On 1) Check whether the plug is fully inserted, 2) Don't press TALK bottom or LOCK button when you plug in 3) Check whether the cable has a problem with another intercom 4)Check whether the adaptor has a problem with another intercom 5) Check whether the socket is matched with another intercom's adaptor.
-
Page 15: The Fcc Wants You To Know
THE FCC WANTS YOU TO KNOW Your intercom might cause TV or radio interference even when it is operating properly. To determine whether your intercom is causing the interference, turn off the stations, if the interference goes away, your intercom is causing the interference. Try to eliminate the interference by: Moving your stations away from the receiver. - Page 16 (1) Messages for hire, whether the remuneration received is direct or indirect; (2) Messages in connection with any activity which is against Federal, State, or local law; (3) False or deceptive messages; (4) Coded messages or messages with hidden meanings (“10 codes” are permissible); (5) Intentional interference;...
- Page 17 unauthorized station, or to any foreign station; (14) Continuous or uninterrupted transmissions, except for communications involving the immediate safety of life or property; (15) Messages for public address systems. (b) A station operator in a GMRS system licensed to a telephone answering service must not transmit any communications to customers of the telephone answering service.
