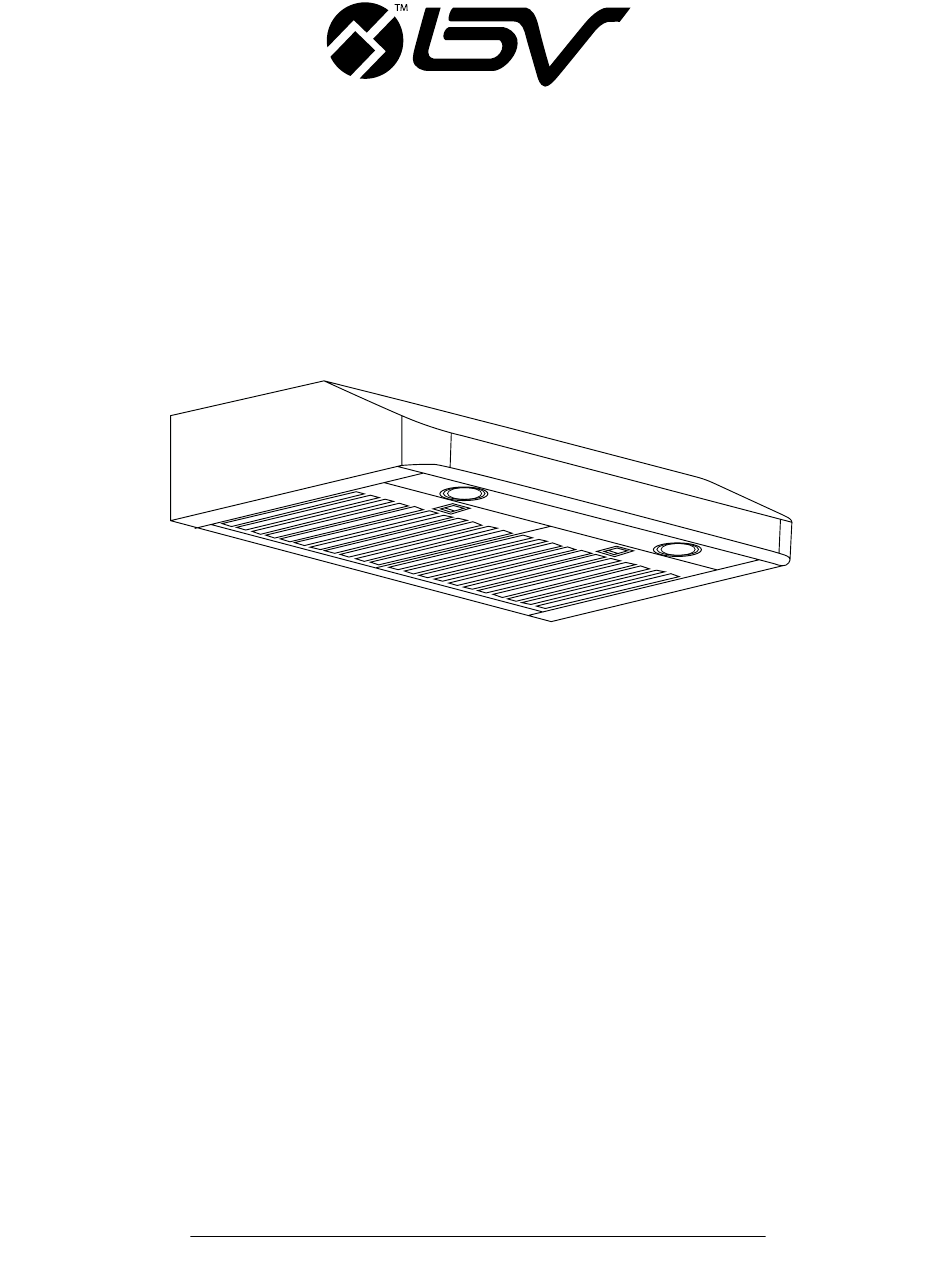

- Page 1 BV-RH-801 Classic Series Under Cabinet Range Hood USER MANUAL...
-
Page 2: Table Of Contents
4. Verify and ensure the rated voltage and frequency (please refer to 7. Refer to Section TROUBLESHOOTING if any malfunction was the rating label) of the range hood is in compliance with the mains found. supply. PLEASE READ AND SAVE THESE INSTRUCTIONS BV-RH801 USER MANUAL... -
Page 3: Know Before Installation
Cutting tools (jig saw or reciprocating saw), screw drivers or power drill, level, utility knife, measuring tape, duct/foil tape, and pencil. RECIPROCATING SAW SCREW DRIVERS POWER DRILL JIG SAW UTILITY KNIFE MEASURING TAPE DUCT/FOIL TAPE PENCIL LEVEL 2 PEOPLE ARE REQUIRED FOR INSTALLATION BV-RH801 USER MANUAL... -
Page 4: Important Safety Notice
2. DO NOT turn on the lights or any type of appliance. 3. Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and fire department, or 911 immediately. BV-RH801 USER MANUAL... -
Page 5: Included Parts And Accessories
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others. All safety messages will follow the safety alert symbol and the word “WARNING”. Included Parts and Accessories RANGE HOOD BAFFLE FILTERS Note: the supplied are subjected to change without notice due to product development. BV-RH801 USER MANUAL... -
Page 6: Venting Height Requirements
5. Make sure there is a minimum of 24” (61 cm) of straight vent be- 10. Use caulking silicone to seal exterior wall or roof opening around tween the elbows if more than one elbow is used. the cap. BV-RH801 USER MANUAL... - Page 7 0 ft DUCT RUN CALCULATION ExAMPLE: One roof cap, two 90º elbow, and one 45º elbow used: 0ft + 9ft + 9ft + 5ft = 23ft used. Deduct 23ft from 50ft, 27ft maximum available for the duct run. BV-RH801 USER MANUAL...
-
Page 8: Venting Methods
Silver Tape or Duct Tape. 3. Use caulking to seal exterior wall or roof opening around the cap. Roof Cap Cabinet Side Wall Cap Range Hood Stove Top TOP VENTING ROOF ExHAUST TOP VENTING WALL ExHAUST BV-RH801 USER MANUAL... -
Page 9: Electrical Requirements And Specifications
Single Chamber Ultra Quiet Fan Type Centrifugal Blower Control Type Soft Touch Electronic Control Panel with LED Light Filtration Type Stainless Steel Baffle Filter Illumination 3W 12V Maximum Venting Size Top, 6 inches Round Interference Protection Radio Frequency Interference Protected BV-RH801 USER MANUAL... -
Page 10: Installation Preparation
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. CAUTION: If moving the cooking range is necessary to install the hood, unplug the power on an electric range. SHUT OFF THE GAS VALVE BEFORE MOVING A GAS RANGE. BV-RH801 USER MANUAL... -
Page 11: Installation Instructions
For a more secure installa- tion, use as many mounting holes as needed to secure from the inside of hood. BAFFLE FILTERS AND STAINLESS STEEL SPACERS 30” Range Hood 36” Range Hood BV-RH801 USER MANUAL... -
Page 12: Range Hood Operations
Superheated oil may be flammable. the desired speed (the LED on the speed control button will turn on). To change the fan speed, press another speed control button. The LED on the speed control button will become illuminated accord- ingly. BV-RH801 USER MANUAL... -
Page 13: Troubleshooting
The hood is not venting out properly. Reduce the number of elbows and length of duct work. Check if all joints are properly connected, sealed, and taped. Make sure the power is on high speed for heavy cooking. BV-RH801 USER MANUAL... -
Page 14: Maintenance And Cleaning
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth. BV-RH801 USER MANUAL... -
Page 15: Warranty
Typically, you must include product identification information, including model number and lot number with a detailed description of the problem you are experiencing. You must also include proof of the date of original retail purchase as evidence that the product is within the applicable warranty period. BV-RH801 USER MANUAL...
