Rion UV-16 Instruction Manual

Two-channel charge amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

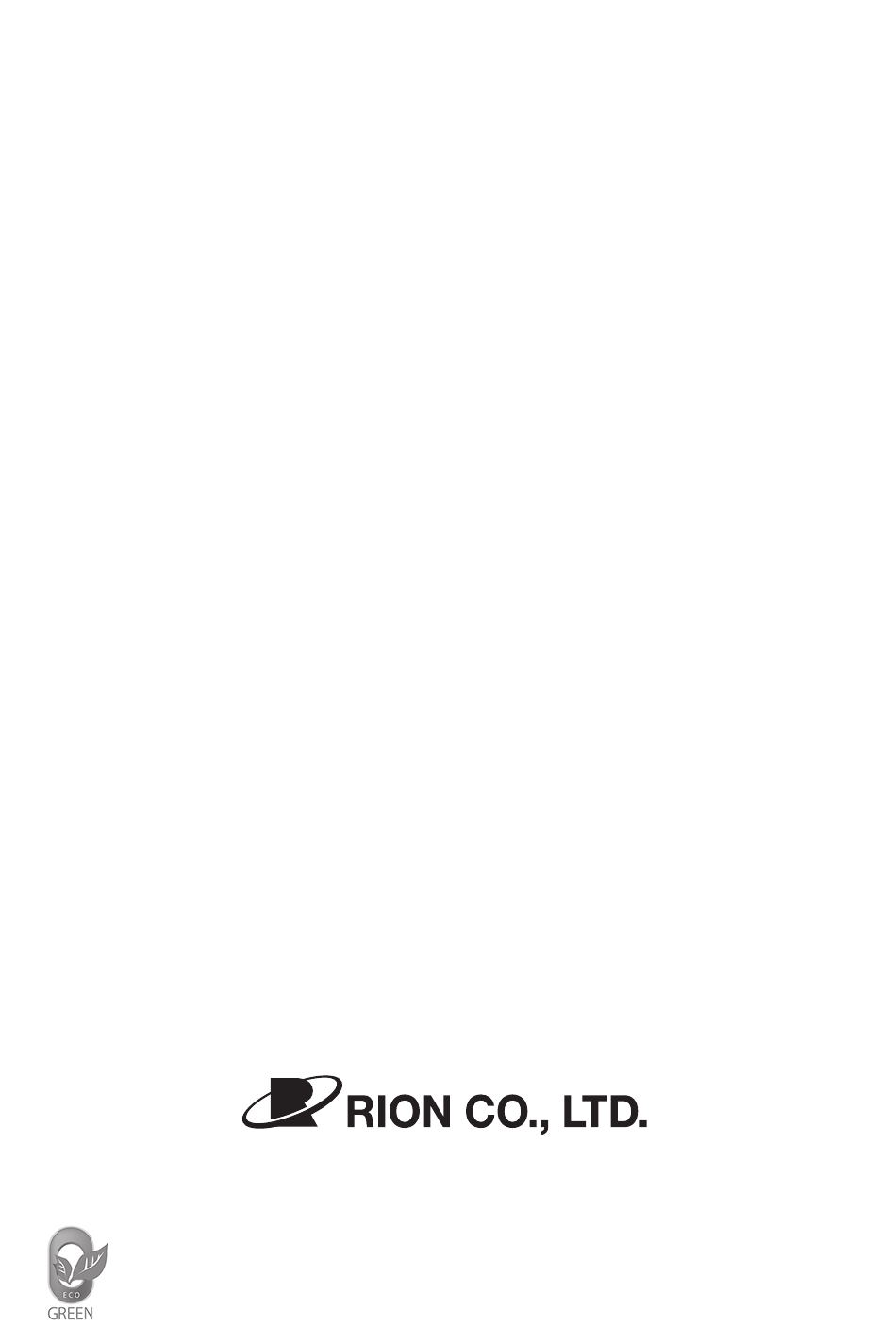

INSTRUCTION MANUAL
Two-Channel Charge Amplifi er
UV-16
3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan
http://www.rion.co.jp/english/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV-16 and is the answer not in the manual?

Questions and answers

Related Manuals for Rion UV-16

Summary of Contents for Rion UV-16

  • Page 1 INSTRUCTION MANUAL Two-Channel Charge Amplifi er UV-16 3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan http://www.rion.co.jp/english/...
  • Page 3 Organization of this manual This manual describes the features, operation, and other aspects of the Two-Chan- nel Charge Amplifi er UV-16. If the unit is used together with other equipment to confi gure a measurement system, consult the documentation of all other components as well.
  • Page 4 Specifi cations Lists the technical specifi cations of the unit. Reference Material Provides representative data for accelerometer inherent noise. Maintenance parts are also listed in this section. * Company names and product names mentioned in this manual are usually trademarks or registered trademarks of their respective owners.

  • Page 5: For Safety

    FOR SAFETY In this manual, important safety instructions are specially marked as shown below. To prevent the risk of death or injury to persons and severe damage to the unit or peripheral equipment, make sure that all instructions are fully understood and observed.
  • Page 6 The product described in this manual is in conformity with the following standards; Electrical equipment for measurement control and laboratory use. Core Accelerometer AC adapter NC-99 series Core A: ZCAT2749-0430 (TDK) Core Core B: ZCAT2436-1330 (TDK) Equivalent product RION Co., Ltd. 3-20-41 Higashimotomachi, Kokubunji, Tokyo 185-8533, Japan...

  • Page 7: Precautions

    Precautions • Operate the unit only as described in this manual. • Do not disassemble the unit or attempt internal alterations. • Observe the following precautions before using the unit: Make sure that all connections are properly and safely established. Make sure that the unit is operating normally.

  • Page 8: Table Of Contents

    Linking procedure ..............9 Removing the link connector ........... 14 Linking when using the Battery Unit BP-17 ......15 Using a single UV-16 unit ............16 Power Supply Connection .............. 17 Using an AC adapter ..............18 Using the Battery Unit BP-17 ...........19 Accelerometer Selection and Connection ........
  • Page 9 Performance Characteristics ............37 Specifi cations ................39 Reference Material ................44 Lower measurement limit ............44 Maintenance parts ..............45...
  • Page 10 viii...

  • Page 11: Outline

    LEDs, operation panel, input connectors (micro-dot), output connec- tors (BNC), DC IN jack, and link connector. Power is supplied by the optional AC adapter NC-97 series (up to 10 UV-16 units), or NC-99 series (up to 16 UV-16 units) (CE mark). In confi gurations with a low number of channels (up to 3 units), the dedicated Battery Unit BP-17 (option) with 8 IEC R14 (size C) batteries can also be used.
  • Page 12 Outline UV-16 Block Diagram Constant-current power OVER supply 24 V, 4 mA Amplifier -20 dB ACC (m/s HPF OFF LPF 1 kHz Amplifier 0 dB Channel A HPF 10 Hz LPF 3 kHz VEL (mm/s) input Integrator Charge amplifier -20 dB...

  • Page 13: Names Of Parts And Functions

    LED overload indicator LED CHARGE CCLD SENS mm/s mm LCD panel CHARGE CCLD SENS mm/s mm 2 CHANNEL CHARGE AMPLIFIER UV-16 PICKUP key SETUP key PICKUP SETUP Channel A RANGE keys Channel B RANGE keys RANGE RANGE Channel A PICKUP...
  • Page 14 Names of Parts and Functions Channel B RANGE keys Serve to select the range for channel B. key is also used to activate the CAL (calibration) mode. Channel B PICKUP connector Serves for connection of the piezoelectric accelerometer or accelerometer with integrated preamplifi er.

  • Page 15: Rear Panel

    Rear Panel AC OUT Channel A ch.A AC OUT connector Channel B ch.B AC OUT connector RION CO.,LTD. MADE IN JAPAN No. 12345678 Name plate DC IN DC IN jack 9-15V Channel A AC OUT connector Supplies an AC signal for channel A.

  • Page 16: Display Screen

    Names of Parts and Functions Display screen The display serves for both the A and B channel, but the items are the same, so the following explanation covers them together. The illustration below shows all possible functions of the display. In actual operation, not all indicators will light up simultaneously.
  • Page 17 Names of Parts and Functions Unit indicators Show which unit is selected. ACC (acceleration): VEL (velocity): mm/s DISP (displacement): HPF indicators Show the high-pass fi lter setting (OFF, 10 Hz, 20 Hz, 50 Hz). OFF is indicated by "--". LPF indicators Show the low-pass fi lter setting (1 kHz, 3 kHz, 10 kHz, OFF).

  • Page 18: Bottom Panel

    Names of Parts and Functions Bottom Panel Bottom view Cover plates Removing the cover plates gives access to the link connector. To access the link connector for linking units, remove the cover plates on the bottom of the unit. The connector is used to supply power to multiple units.

  • Page 19: Linking

    Linking Multiple UV-16 units can be linked to form a multi-channel system. The maximum number of units that can be linked is 16 (resulting in 32 channels). When using the Battery Unit BP-17 to power the units, the maximum number of units that can be linked is three.
  • Page 20 Linking 2. Remove the two link hooks on the top panel. Do not remove these hooks for the unit that will be the rightmost unit as seen from the front. Put the screws and hooks in a box or other suitable container, to make sure that you do not lose any parts.
  • Page 21 Linking 4. Plug the link connector of each unit into the next unit. Front side Rolled up link connector and cable Unit bottom Plug into link connector 5. After plugging in the link connectors, use the supplied link plates and screws to provisionally link the units as shown below. Use the screws removed in step 1.
  • Page 22 Linking 6. Attach the link hooks removed in step 2 to the unit tops, so that the units are locked together. Lock unit tops with link hooks Link hooks Attach link hook on rightmost unit with orientation as shown. Rotate 90 degrees Front side Insert link hook into slit on next link hook and use the screws to fasten the hooks...
  • Page 23 Linking 8. Attach the link hooks to the unit tops, so that the units are locked together. Securely tighten the screws. Unit top Front side Note If you have lost the original screws, refer to the information about maintenance parts on page 45. Commercially available screws can also be used, provided that exact specifi cations are met.

  • Page 24: Removing The Link Connector

    Linking Removing the link connector To unplug the link connector, grasp the tag as shown in the illustration below and carefully pull the connector out. Important Be sure to grasp the side with the "3M" letter- ing. If you pull on the other side, the tag may break.

  • Page 25: Linking When Using The Battery Unit Bp-17

    The cover of the battery compartment in the Battery Unit BP-17 is located on the right side. When installed in this way, the cover can be opened to access the compartment and insert/remove batteries. Two-Channel Charge Amplifiers (Up to three UV-16 units when powered by batteries) CHARGE CHARGE CHARGE...

  • Page 26: Using A Single Uv-16 Unit

    Linking Using a single UV-16 unit Attach the supplied link plate to the bottom of the unit as shown below, to stabilize the unit when it is used in a free-standing confi guration. Use the screws removed from the unit.

  • Page 27: Power Supply Connection

    The UV-16 can be powered from an AC adapter (option), the Battery Unit BP-17 (option), or a car battery (12 V). The UV-16 does not have a power switch. It will start to operate when power is supplied. The Battery Unit BP-17 (option) has a power switch which allows shutting down the system.

  • Page 28: Using An Ac Adapter

    Using an AC adapter Caution Be sure to use only a single AC adapter to power a linked system consisting of mul- tiple Two-Channel Charge Amplifi er UV-16 units. Important Do not use any AC adapter other than the specifi ed models. Otherwise malfunction and damage may occur.

  • Page 29: Using The Battery Unit Bp-17

    Using the Battery Unit BP-17 Battery life Figures for approximate battery life when using the Battery Unit BP-17 are given below. These fi gures are for using three UV-16 units. Manganese batteries Alkaline batteries Approx. 5 hours Approx. 17 hours Continuous operation at ambient temperature of 25°C, with CHARGE setting,...
  • Page 30 The Battery Unit BP-17 has a DC IN jack on the rear panel. To power the system from an optional AC adapter, connect the adapter to this jack. BP-17 rear panel RION CO.,LTD. MADE IN JAPAN No. 12345678 AC adapter...

  • Page 31: Accelerometer Selection And Connection

    Accelerometer Selection and Connection Two types of accelerometers can be connected to the UV-16. Accelerometer type Sensitivity setting range Piezoelectric accelerometer 0.100 pC/(m/s ) to 99.9 pC/(m/s Accelerometer with integrated preamplifi er 0.100 mV/(m/s ) to 99.9 mV/(m/s Important Before connecting or disconnecting an accelerometer, be sure to turn off the power supply to the system.

  • Page 32: Accelerometer Connection

    Accelerometer Selection and Connection Accelerometer connection Connect the accelerometer to the PICKUP connector on the UV-16, as shown in the illustration below. Two-Channel Charge Amplifier UV-16 Accelerometer Connection cable Accelerometer Connection cable...

  • Page 33: Accelerometer Mounting

    Accelerometer Selection and Connection Accelerometer Mounting The UV-16 is a vibration measurement amplifi er designed for use with piezoelectric accelerometer or accelerometer with integrated preamplifi er. Other types of accelerometers such as electrokinetic accelerometers cannot be used with this product. Choose a suitable accelerometer according to the measurement requirements including measurement range, frequency range, and environmental conditions.
  • Page 34 Accelerometer Selection and Connection WARNING When performing measurements on ma- chinery with exposed rotating parts or drive train parts, proceed with utmost caution to avoid the risk of getting caught in the machinery. Note Tighten the M6 screw fi rst on the piezoelectric ac- celerometer side and then mount the rod attachment.

  • Page 35: Output Connections

    Output Connections The rear panel of the UV-16 provides one AC output connector each for channel A and channel B. This signal can be supplied for example to an oscilloscope for waveform observation, to a data recorder for recording, or to an FFT analyzer for analysis.

  • Page 36: Measurement

    Measurement Operation mode The operation modes of the UV-16 are listed below. Operation mode Outline Accelerometer setup mode Make accelerometer sensitivity settings Setup mode Make acceleration/velocity/displacement settings, HPF setting, LPF settings Measurement mode Make measurements Calibration (CAL) mode Use a calibration output signal to calibrate external...

  • Page 37: Accelerometer Setup Mode

    Measurement Accelerometer setup mode This mode serves for making accelerometer related settings for the UV-16. Before starting a measurement, be sure to make or check the accelerometer setting. Setting item Setting content Remarks Piezoelectric accelerom- CHARGE Setting is made separately...
  • Page 38 Measurement 2. Pressing the PICKUP key again in the condition of step 1 activates the sensitivity (SENS) setup display. The sensitivity value can be changed with the RANGE keys for the respective channel. Holding down a key causes the range setting to change quickly. The setting can be made for three effective digits.

  • Page 39: Setup Mode

    Measurement Setup mode This mode serves for making settings for acceleration/velocity/displacement and for the high-pass fi lter (HPF) and low-pass fi lter (LPF). Before starting a measurement, be sure to make or check these settings. Setting item Setting content Remarks Acceleration/velocity/ ACC (acceleration) Setting is made separately for...
  • Page 40 Measurement 2. Pressing the SETUP key again in the condition of step 1 switches to the HPF setup display. Use the RANGE keys for the respective channel to make the HPF setting. OFF: Select -- Hz 10 Hz: Select 10 Hz 20 Hz: Select 20 Hz 50 Hz:...

  • Page 41: Measurement Mode

    Measurement Measurement mode Vibration measurements are carried out in measurement mode. The bar graph indication changes according to the vibration detected by the accelerometer, and a corresponding AC signal is supplied at the AC OUT connectors. Shows CHARGE CHARGE or CCLD CCLD Shows range setting Shows unit...
  • Page 42 Measurement Changing the range setting To change the range setting, use the RANGE keys. If the signal from the accelerometer is too high for the selected range, the internal amplifi cation circuits will saturate, causing the overload indica- tor LED to light up. In such a case, correct measurement is not possible, and you should change the range setting.

  • Page 43: Bar Graph Indication

    Measurement Bar graph indication The bar graph indicator has 10 segments. The vibration waveform is averaged and the resulting value is displayed on the bar graph, using a refresh rate of 100 milliseconds. 100% of range full-scale value (Example: 10 m/s when range setting is 10 m/s 50% of range full-scale value (Example: 5 m/s...

  • Page 44: Overload Indicator Led

    Measurement Overload indicator LED At each range setting, measurement is possible up to a point about ten times (+20 dB) higher than the range full-scale point. For example, if the range setting is 10 m/s , measurement is possible up to about 100 m/s without saturation.

  • Page 45: Calibration (Cal) Mode

    Measurement Calibration (CAL) mode This mode serves for electrical calibration of equipment connected to the AC OUT connectors on the rear panel. The calibration reference signal available at the AC OUT connectors is an 80 Hz sinusoidal wave signal with a range full-scale value of 1 V (Peak). 1 V (Peak) 80 Hz sinusoidal wave signal Example...
  • Page 46 Measurement 2. In calibration mode, the built-in oscillator is active and supplies a 1 V (Peak) 80 Hz sinusoidal wave signal to the BNC connectors on the rear panel. 3. While the unit is in calibration mode, pressing the RANGE for channel A or channel B returns the unit to normal measurement mode.

  • Page 47: Performance Characteristics

    High-pass fi lter (HPF) frequency response 20 Hz −10 10 Hz 50 Hz −20 −30 − 40 Frequency (Hz) UV-16 HPF Frequency response Low-pass fi lter (LPF) frequency response 1 kHz 3 kHz 10 kHz −10 −20 −30 −40 10 k 20 k...
  • Page 48 Performance Characteristics Velocity (VEL) and displacement (DISP) frequency response characteris- tics Velocity Displacement −10 DISP −20 −30 −40 −50 1000 Frequency (Hz) UV-16 velocity (VEL) and displacement (DISP) frequency response characteristics...

  • Page 49: Specifi Cations

    Specifi cations Applicable standards CE marking Input Number of channels 2 Connector type Microdot connectors Supported accelerometers Piezoelectric accelerometer Accelerometer with integrated preamplifi er, 24 V 4 mA Measurement modes and units Acceleration/velocity/displacement, selectable ACC (acceleration): VEL (velocity): mm/s DISP (displacement): mm Sensitivity setting Setting range 0.100 to 0.999 in 0.001 steps...
  • Page 50 Specifi cations Sensitivity setting 10.0 to 99.9 ACC (acceleration): 0.1, 0.3, 1, 3, 10, 30, 100 VEL (velocity): 0.1, 0.3, 1, 3, 10, 30, 100 DISP (displacement): 0.01, 0.03, 0.1, 0.3, 1, 3, 10 Frequency range ACC (acceleration): 1 Hz to 15 kHz (AC output tolerance ±5%) 0.5 Hz to 30 kHz (AC output tolerance ±10%) VEL (velocity): 3 Hz to 3 kHz (AC output tolerance ±5%)
  • Page 51 : FRONT CCLD setting, 12 V DC ) Suitable AC adapters NC-99 series (up to 16 units) (CE mark) 40 VA or less when using sixteen UV-16 units (100 V AC) NC-97 series (up to 10 units) Battery Unit...
  • Page 52 Specifi cations Supplied accessories Instruction manual Link plate Inspection certifi cate Optional accessories AC adapter NC-99 series (up to 16 units) (CE mark) NC-97 series (up to 10 units) Battery Unit BP-17 BNC-BNC cable NC-39A Piezoelectric accelerometer Various Connection cable Various Car battery adapter CC-82...
  • Page 53 Specifi cations CHARGE CCLD SENS mm/s mm CHARGE CCLD SENS mm/s mm 2 CHANNEL CHARGE AMPLIFIER UV-16 PICKUP SETUP RANGE RANGE PICKUP Unit: mm Dimensional Drawing...

  • Page 54: Reference Material

    The lower measurement limit is determined by the inherent noise of the equipment. The table below gives the inherent noise of the UV-16 [as measured by connecting an equivalent capacitance of 1000 pF, using a sensitivity setting of 5.00 pC / (m/s )], and representative inherent noise fi gures for a range of accelerometers.

  • Page 55: Maintenance Parts

    Part name: Cover plate Part number: UV-16-008 M3 pan-head screw Part name: M3 pan-head screw Cover plates Rion designation: KS 3 × 10 Conventional market designation: Unit bottom pan-head screw M3 × 10 Screw length 10 mm Part name: Link hook...
  • Page 56 This product is environment-friendly. It does not include toxic chemicals on our policy. No. 52099 18-07...
