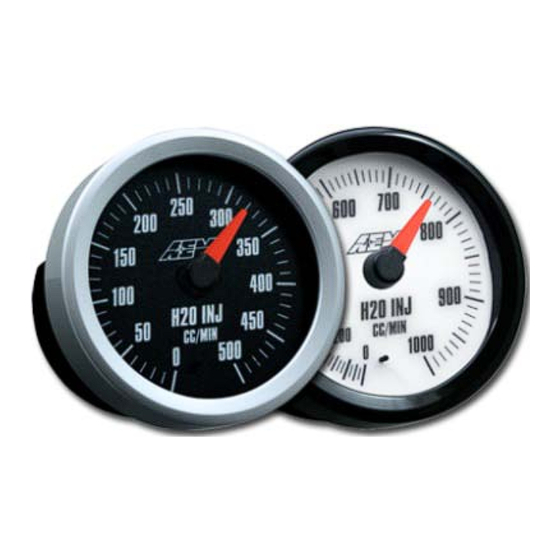

Oil Pressure Display Gauges
Part numbers:
30-5133 - Analog Oil/Fuel SAE Pressure Gauge. 0-100psi
30-5135 - Analog Oil SAE Pressure Gauge. 0-150psi
AEM's Analog style Oil Pressure Gauges feature quick response and smooth needle movement that is
easy to read in all lighting conditions. AEM offers a 0-100 PSI oil pressure gauge and 0-150 PSI oil
pressure gauge. Each gauge offers a swept area of 320 degrees for the best viewing resolution at almost
any angle. A precision high-speed electronic stepper motor delivers lightning fast needle movement,
making AEM's SAE oil pressure gauge some of the fastest and most accurate gauges available. An
included sensor provides accurate pressure readings for each oil pressure gauge.
All AEM analog style gauges feature seven backlight colors that allow you to match your OEM or other
gauge backlighting, a silver and black bezel and a white and black faceplate to best match the interior of
your vehicle. The backlighting is adjustable via a dial on the rear of the gauge to optimize viewing in all
lighting conditions.
AEM Oil Pressure Gauges can quickly alert you to an engine damaging drop in oil pressure, allowing you
to protect your engine from damage.
Product Features
Ideal for carbureted or EFI vehicles
•
Adjustable backlighting via a dial on the back of the gauge
•
Includes black and silver interchangeable bezels and white and black faceplates
•
320 degree viewing area for unsurpassed resolution
•
•
Pressure gauge includes high quality sensor - everything you need to install it!
Easy-to-install harness
•
0-5v analog output included for use with data loggers and virtually any engine management system
•
Electronic stepper motor needle
•
Standard 52mm (2-1/16") gauge housing
•
30-5133 displays 0-100 PSI
•
•
30-5135 displays 0-150 PSI
30-5133M displays 0-6.9 BAR
•
30-5135M displays 0-10.2 BAR
•
Advertisement
Related Manuals for AEM 30-5133
Summary of Contents for AEM 30-5133
- Page 1 AEM's Analog style Oil Pressure Gauges feature quick response and smooth needle movement that is easy to read in all lighting conditions. AEM offers a 0-100 PSI oil pressure gauge and 0-150 PSI oil pressure gauge. Each gauge offers a swept area of 320 degrees for the best viewing resolution at almost any angle.
- Page 2 Analog Style 100 PSI Oil/Fuel/Air Pressure Gauge NOTE: Faceplate Configuration Instructions Included on Separate Sheet Figure 1. Wiring Schematic AEM Oil/Fuel Pressure Gauge Parts 1 x 35-5133 Pressure Gauge Assembly 1 x 30-2131-100 Pressure Sensor 1 x 35-4302 Install Kit (6 Butt Connectors)
-
Page 3: Installation
WHITE – The WHITE wire should be connected to the Analog + input on the AEM EMS or the analog + input on a similar device. BROWN – The BROWN wire should be connected to the Analog – input. If the EMS or similar device does not have a –... - Page 4 Figure 3. Changing Bezels Backlighting The AEM Boost Gauge has 7 different backlight colors available to the end user, which closely match some of the more common factory dash panels: white, blue, green, red, orange, light blue, and aqua. To change the backlight color, rotate the backlighting switch using a small precision style screwdriver.
- Page 5 Figure 4. Backlighting Adjustment Status Lights The AEM Pressure gauge has two status lights, see Figure 4. The status light on the left will flash if an out of range low voltage sensor error is detected. The status light on the right will flash if an out of range high voltage sensor error is detected.
- Page 6 Analog Output The analog output from the AEM 100 PSI Pressure gauge is a linear dc voltage signal that varies from 0.5 Vdc at 0 psig (0 Bar) to 4.5 Vdc at 100 psig (6.9 Bar) over the operating range of the gauge. The signal is used for sending information to a data logger or an engine management system like the AEM EMS or F/IC.
- Page 7 RGA is issued. Please note that before AEM can issue an RGA for any product, it is first necessary for the installer or end user to contact the AEM Performance Electronics tech line at 1-800-423-0046 to discuss the problem. Most issues can be resolved over the phone. Under no circumstances should a system be returned or a RGA requested before the above process transpires.
- Page 8 Analog Style 150 PSI Oil Pressure Gauge NOTE: Faceplate Configuration Instructions Included on Separate Sheet Figure 1. Wiring Schematic AEM 150 PSI Oil Pressure Gauge Parts 1 x 35-5135 Pressure Gauge Assembly 1 x 30-2131-150 Pressure Sensor 1 x 35-4302 Install Kit (6 Butt Connectors)
- Page 9 WHITE – The WHITE wire should be connected to the Analog + input on the AEM EMS or the analog + input on a similar device. BROWN – The BROWN wire should be connected to the Analog – input. If the EMS or similar device does not have a –...
- Page 10 Figure 3. Changing Bezels Backlighting The AEM Boost Gauge has 7 different backlight colors available to the end user, which closely match some of the more common factory dash panels: white, blue, green, red, orange, light blue, and aqua. To change the backlight color, rotate the backlighting switch using a small precision style screwdriver.
- Page 11 Figure 4. Backlighting Adjustment Status Lights The AEM Pressure gauge has two status lights, see Figure 4. The status light on the left will flash if an out of range low voltage sensor error is detected. The status light on the right will flash if an out of range high voltage sensor error is detected.
- Page 12 Analog Output The analog output from the AEM 100 PSI Pressure gauge is a linear dc voltage signal that varies from 0.5 Vdc at 0 psig (0 Bar) to 4.5 Vdc at 150 psig (10.3 Bar) over the operating range of the gauge. The signal is used for sending information to a data logger or an engine management system like the AEM EMS or F/IC.
- Page 13 RGA is issued. Please note that before AEM can issue an RGA for any product, it is first necessary for the installer or end user to contact the AEM Performance Electronics tech line at 1-800-423-0046 to discuss the problem. Most issues can be resolved over the phone. Under no circumstances should a system be returned or a RGA requested before the above process transpires.
