Summary of Contents for Splosh Wash Splosh 2

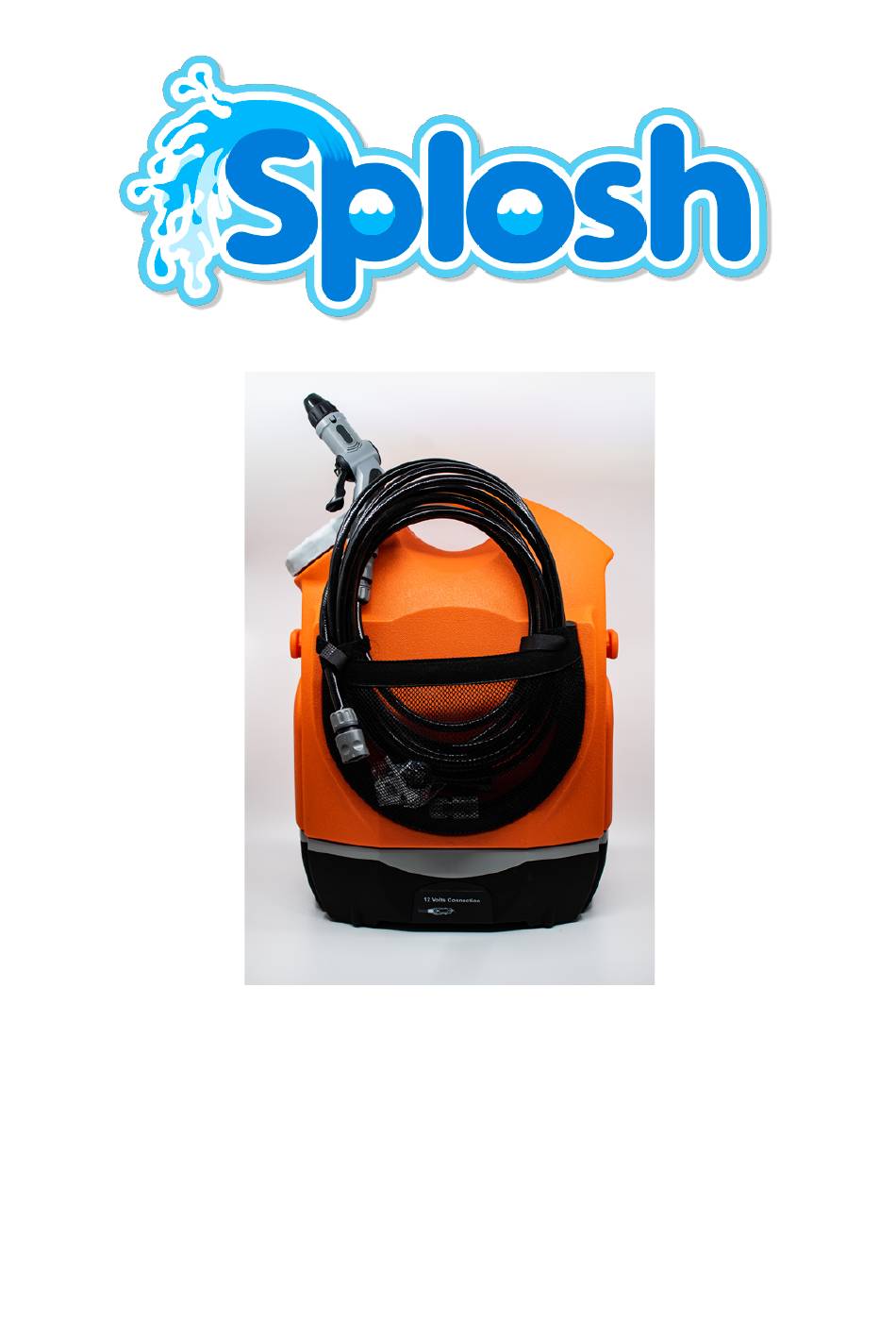

- Page 1 • Low water consumption & high-water pressure. • Energy-saving & environmentally friendly. • Portable, Durable, Safe & Splash proof. • Housework Cleaning: Bathroom, sinks, pets, and garden. • Perfect for Bicycle cleaning, Camping, and other outdoor activities.
-
Page 2: Table Of Contents
Contents Operating Instructions ......................1 Important Safety Instructions ....................1 Limited Warranty ........................1 Warning - to reduce the risk of injury: ..................2 Features ..........................3 How to Assemble ........................4 How to Operate ........................6 Automatic Shutoff ........................7 General Maintenance ...................... -
Page 3: Operating Instructions
Use water of temperature at 0°c to 40°c only. Limited Warranty Splosh Wash Limited will warrant the product for a period of 12 months from the date of purchase. Please keep your warranty card or original sales invoice to validate the warranty period. -
Page 4: Warning - To Reduce The Risk Of Injury
Warning - to reduce the risk of injury: Do not leave the unit unattended when plugged in. Unplug from power port when not in use and before any maintenance of the unit. This is NOT a toy. Close attention is necessary when used near children. Use only manufacturer’s recommended accessories and replacement parts. -
Page 5: Features
Features 1. Lid 2. Adjustable Shoulder Strap 10. Cover for 12V connection 3. Water tank 11. 12V connection 4. Motor pump case 12. Mesh Storage Compartment 5. Hose inlet 13. Multi-function Spray gun 6. On/Off Power switch 14. Adjustable Nozzle head (The unit will be locked with a long 15. -
Page 6: How To Assemble
How to Assemble... - Page 7 Spray Gun Assembly Connect the shower head to the spray nozzle. Push the shower head into the spray nozzle, firmly line up the salient points on the shower head with the holes on the spray nozzle. Spray gun operation: Intermittent flow For intermittent flow pull and release the trigger repeatedly.
-
Page 8: How To Operate
How to Operate Important: disconnect the power cable whenever engine is turned off for extended period of time. The power does not turn off after switching off the engine in certain vehicles. If the power plug is left connected, vehicle’s battery may become run down or damaged. Please charge before using for the first time! Purge air from system: turn unit on (Diagram 2). -
Page 9: Automatic Shutoff
Follow these steps after each time you refill your tank: Fill the tank with clean water. Do not use any products containing detergents. Connect the hose to the motor pump case. Connect the nozzle to the hose. Press the on/off switch to start the unit when using the built-in battery. When using the 12V connection, plug it into car cigarette lighter or other external power port, then press the on/off switch, the unit will automatically switch to use the power from 12V connections instead of its built-in battery. -
Page 10: General Maintenance
General Maintenance Warning: always disconnect the plug from the power supply before any maintenance is started. Water Filter: Check the water filter on the motor base before attaching the water tank. Clean the filter when necessary. Nozzle Clogged: A clogged nozzle will cause the operating pressure to be too high causing the Splosh #2 to surge. -
Page 11: Storing Of Splosh #2
To charge the battery, only use the original mains charger included in the box. Use of other chargers may damage the battery or may cause serious injury. Storing of Splosh #2 Your Splosh #2 should be stored in such a way to protect it from freezing. Do not store this unit outdoors or on an area where temperatures will fall below 0°C (32°F). -
Page 12: Trouble Shooting The Splosh #2
Trouble Shooting the Splosh #2 Problems Correction The pump will not start. v When using car’s power with cigarette lighter, please check: o Check power cord is attached properly and has not been damaged in any way. o Check the vehicle’s battery, in some vehicles the cigarette lighter will only have electricity when the ignition is switched on. - Page 13 Specification: • Pressure (PSI): 43.5 to 130.5 • Voltage: 12V (DC) • Power: 45W • Hose: 6.0 meter • Power Cord: 3.0 meter • Capability: 17 litres • N.W.: 3.15kg • Dimension: 350 x 230 x 460 mm • Charger Output: 13.4V 1A Packaging list Item Name...
