Overview
1
14 13

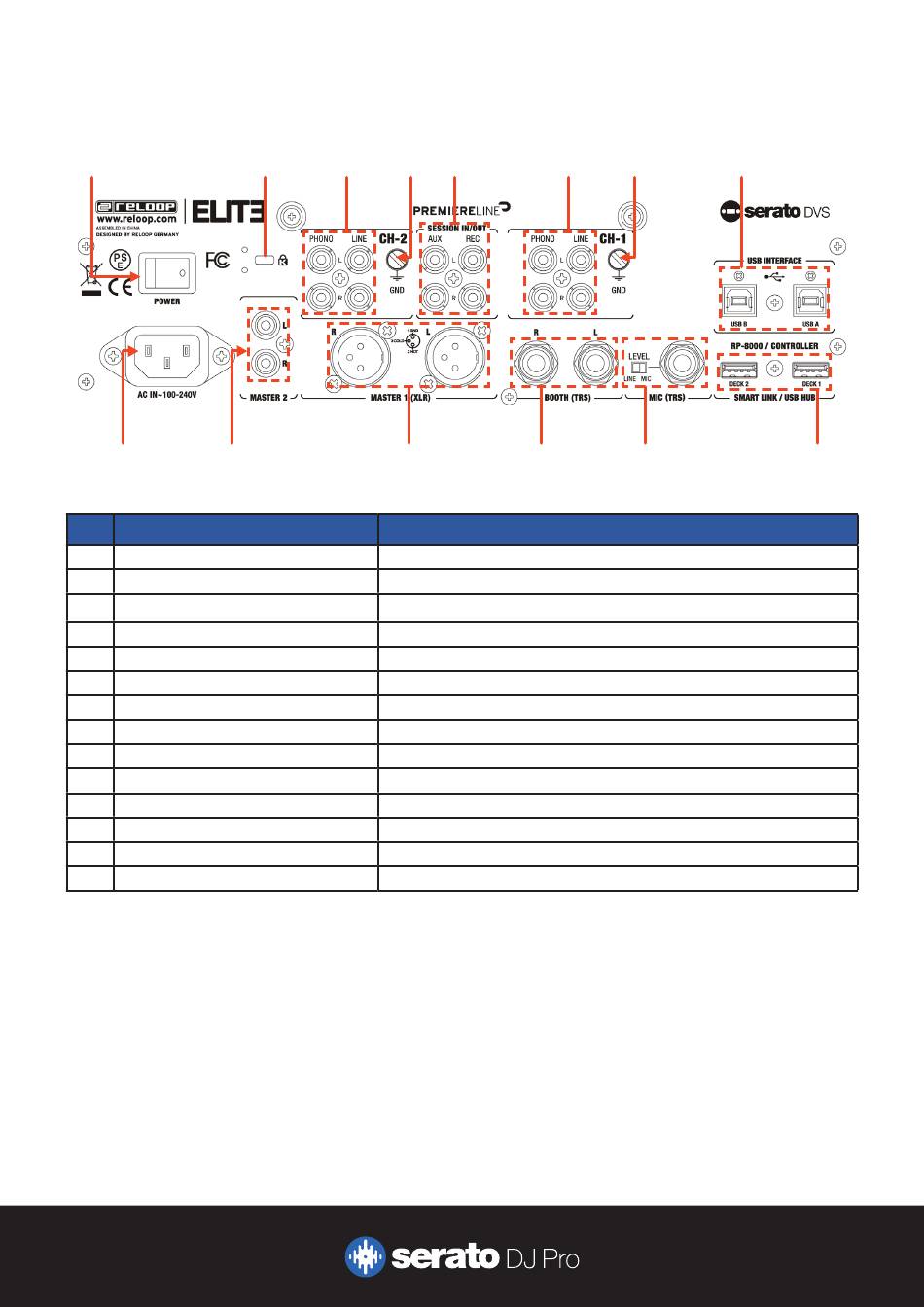

# Reloop Elite CONTROL
1 POWER SWITCH
2 KENSINGTON LOCK
3 CH-2 INPUT
4 CH-2 GND POST
5 SESSION IN/OUT
6 CH-1 INPUT
7 CH-2 GND POST
8 USB PORT A / B
9 SMART LINK / USB HUB
10 MIC
11 BOOTH
12 MASTER 1
13 MASTER 2
14 AC IN
2 3 4
12
5 6
11
FUNCTION
Toggle power on/off
Used to secure device
Connect RCA phono or line-level device
Connect grounding wire from turntable for channel 1
Connect auxilliary input device or output for recording
Connect RCA phono or line-level device
Connect grounding wire from turntable for channel 2
Connect USB cable from PC
Connect RP-8000 or USB accessory
Connect MIC input via TRS & adjust MIC level toggle
Connect TRS Booth output
Connect XLR Master output
Connect RCA Master output
AC Power input
7
8
10 9
