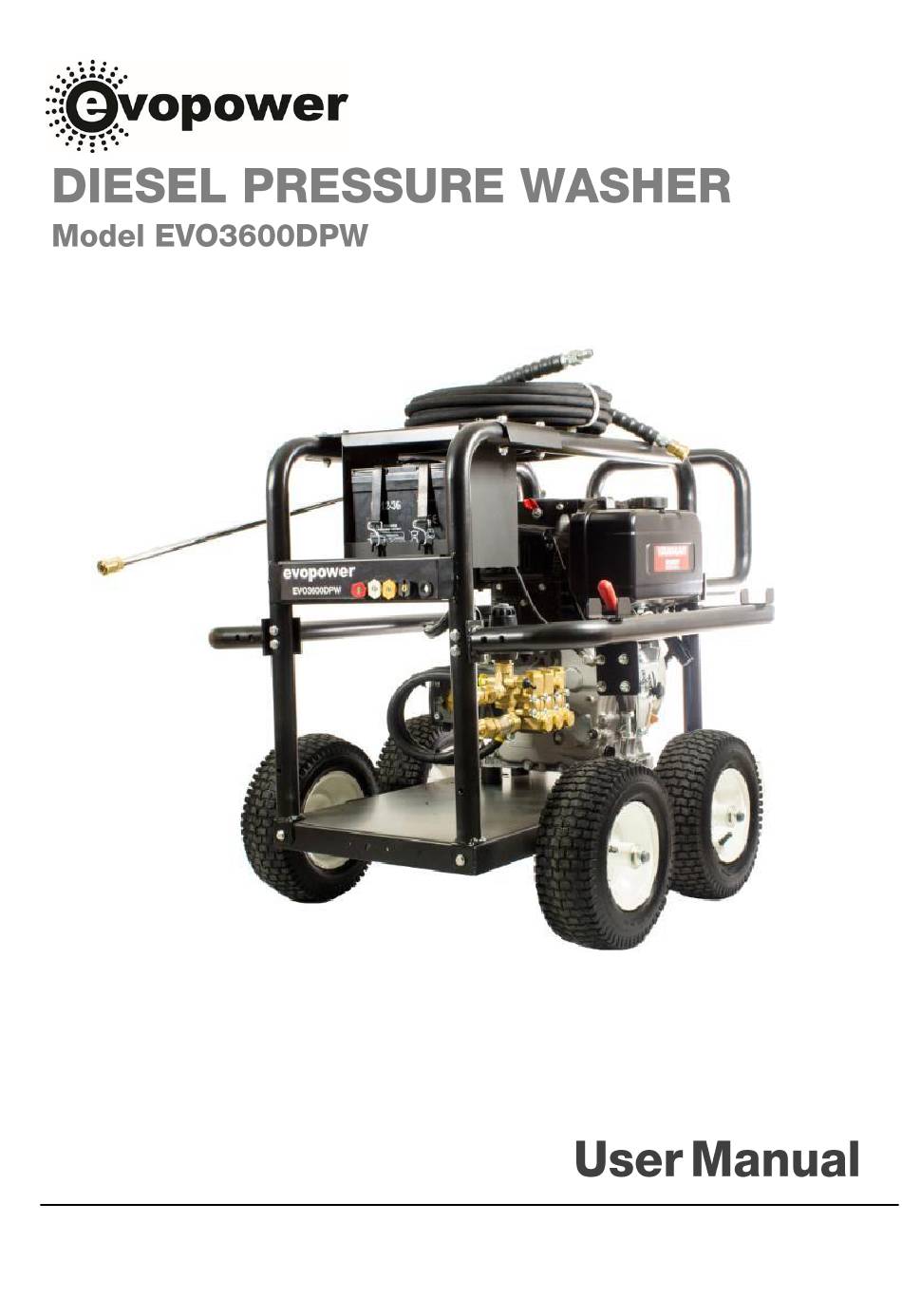

Evopower EVO3600DPW User Manual

Diesel pressure washer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO3600DPW and is the answer not in the manual?

Questions and answers

Related Manuals for Evopower EVO3600DPW

Summary of Contents for Evopower EVO3600DPW

  • Page 2: Operation Notes & Record Of Identification Numbers

    DO NOT leave the machine running longer than 1 minute without operating the pressure washer trigger (to release pressure) or the pump will overheat. DO NOT let the machine freeze. ALWAYS wear eye protection. HIGH PRESSURE sprays can cause serious bodily injuries – ALWAYS use with caution. WARRANTY is void if the pre-set pressure PSi is exceeded, which may cause severe damage to gauge and unloader valve.

  • Page 3: Table Of Contents

    CONTENTS o’s Page N Section Description OPERATION NOTES & RECORD of IDENTIFICATION NUMBERS 1. SAFETY 4 - 6 2. SAFE OPERATION 6 - 9 3. PART LOCATIONS 10 - 11 4. ASSEMBLY 5. PRE-OPERATION CHECKLIST 6. PREPARING YOU WASHER & ENGINE STARTING 12 - 17 7.

  • Page 4: Safety

    1. SAFETY. 1.1. The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points 1.1.1.
  • Page 5 1.3. Carbon monoxide 1.3.1. Carbon monoxide gas is colourless and odourless. Breathing in this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include the following; 1.3.2.1.

  • Page 6: Safe Operation

    1.5. Diesel safety. 1.5.1.1. Always fuel and defuel in well-ventilated area. 1.5.1.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.5.1.3. Hand protection. 1.5.1.4. Protective clothing. 1.5.1.5.
  • Page 7 2.5. When adding or draining fuel. 2.5.1. Turn the pressure washer OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank. 2.5.2. Only fill or drain fuel tank outdoors. 2.5.3.
  • Page 8 2.12. Exhaust. Contact with exhaust area can result in serious burns. Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire. 2.12.1. DO NOT touch hot parts and AVOID hot exhaust gases. 2.12.2. w equipment to cool before touching. 2.12.3.
  • Page 9 2.15.2. DO NOT wear loose clothing, jewellery or anything that may be caught in any rotating parts. 2.15.3. Tie up long hair and remove jewellery. 2.15. Eye protection. Risk of eye injury - Spray can splash back or propel objects. 2.16.1.

  • Page 10: Part Locations

    3. PART LOCATIONS 3.1. Machine. 1 - High Pressure Hose - Connect one end to water pump and the other end to spray gun. 2 - Spray Tips - Detergent, 0°, 15°, and 40°: for various high pressure cleaning applications. 3 - Pressure Control Knob - Varies pressure of high pressure spray.

  • Page 11: Assembly

    3.2 Engine. 1 – Fuel drain plug 2 – Decompression lever 3 – Air cleaner 4 – Recoil starter handle 8 – Engine speed control 5 – Recoil starter 6 – Oil cap/Dipstick 7 – Oil drain plug lever 9 – Fuel injection pump 10 –...

  • Page 12: Pre-Operation Checklist

    5. PRE-OPERATION CHECKLIST 5.1. Follow the checklist below prior to using the machine each time. 6.1.1. Check that the engine/water pump oil levels are at the correct levels. Use SAE 15W40 Oil (API See page 11 items 17/18. CH4/CF/SJ/SL Diesel engine oil or higher grade). 6.1.2.
  • Page 13 6.3.1. Tug on spray tip to make sure it is securely in place. See Spray Tips. 6.4. Uncoil high pressure hose and attach quick connect end of hose to base of spray gun. 6.4.1. Pull down on collar of quick connect, slide onto spray gun and let go of collar.
  • Page 14 6.7. Turn Water Supply on, point gun in a safe direction and squeeze the trigger to purge the pump of air and debris. 6.7.1. Do this for at least 30 seconds. 6.8. Take a look at all connections to make sure there are no leaks or loose connections. IMPORTANT ...
  • Page 15 6.10.4. Grasp the recoil starter handle (1). 6.10.5. Pull the handle out slowly until you feel strong resistance, slowly return the recoil starter handle to the initial position. 6.10.6. Push the decompression lever down (1) and release it. The decompression lever will automatically return to the original position when the engine starts.
  • Page 16 6.11.3. If the engine fails to start; 6.11.3.1. Wait until the engine comes to a complete stop before you attempt to start it again. Engaging the starter when the engine is still rotating will result in damage to the starter motor and flywheel.

  • Page 17: Spray Tips

    Fuel cock Key-switch 7. SPRAY TIPS 7.1. How to use spray tips 7.1.1. The quick–connect on the nozzle extension allows you to switch between four different quick connect spray tips. 7.1.2. The spray tips can be changed while pressure washer is running once spray gun safety lock is engaged.

  • Page 18: Maintenance

    7.3.4. If you get spray tip too close, especially using a high pressure spray tip, you may damage surface being cleaned. 7.4. Using the Black soap nozzle. 7.4.3. To apply detergent, follow these steps: 7.4.3.1. Review use of spray tips. 7.4.3.2.

  • Page 19: Troubleshooting

    9. TROUBLESHOOTING 9.1. If you are experiencing a problem that is not listed in this chart, or have checked all the possible cause listed and you are still experiencing the problem, see your authorised dealer. 9.2. Petrol Trouble shooting see supplied Engine manual.
  • Page 20 Troubleshooting pump functions. Problem Cause Correction 1. Insert black soaper 1. Using wrong nozzle. No low pressure detergent nozzle. delivery. 2. Siphon hose or filter is plugged. 2. Unplug siphon hose. 1. Check supply hose, faucet and inlet water 1. Restricted or insufficient water filter.
  • Page 21 9.4. Troubleshooting engine. SYMPTOM PROBABLE CAUSE ACTION REFER TO Indicator Stays On - Key Switch is Turned from Start to ON (START -> ON) Battery indicator stays Faulty alternator — Contact your dealer Engine oil pressure Faulty engine oil — indicator stays On pressure switch Engine Does Not Start...

  • Page 22: Winter Storage

    10. WINTER STORAGE Anti-Freeze is poisonous and can be harmful or fatal if swallowed or inhaled. Do not drink antifreeze or solution. Avoid inhaling mist or hot vapours. If inhaled, remove affected person/s to fresh air. Ethylene glycol causes birth defects in laboratory animals. Do not store in open or unlabelled containers.

  • Page 23: Environmental Disposal

    You must protect your machine from freezing temperatures. Failure to do so will permanently damage your pump and render your machine inoperable. Damage caused by freezing is not covered under warranty. Pump Saver is available as an optional accessory. It is not included with the pressure washer. 10.5.2.

  • Page 24: Specifcations

    12. SPECIFICATIONS 12.1. Engine. Engine Manufacturer/Model YANMAR/L100N Type 4-stroke, Vertical Cylinder, Air-Cooled Diesel Engine No. of Cylinders Bore x Stroke 86 x 75 mm Displacement 435 cc rpm (min 3600 3000 Continuous Rated Output rpm (min 3600 3000 Max. Rated Output (Net) 10.0...

  • Page 25: Contact Details

    13. CONTACT DETAILS 15.1. Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. 15.2. Telephone contact number; Office +44 (0) 1646 687880 15.3. Email contacts; Technical service@genpower.co.uk 15.4. Web site; www.evopower.co.uk...

  • Page 26: Declarations

    14. DECLARATIONS Genpower Ltd confirms that this BE Pressure Washer conforms to the 14.1. following CE directives:  2006/42/EC Machinery directive  2004/108/EC EMC directive  2000/14/EC Noise emissions directive  97/68/EC NRMM Emissions directive...
  • Page 28 Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198...
