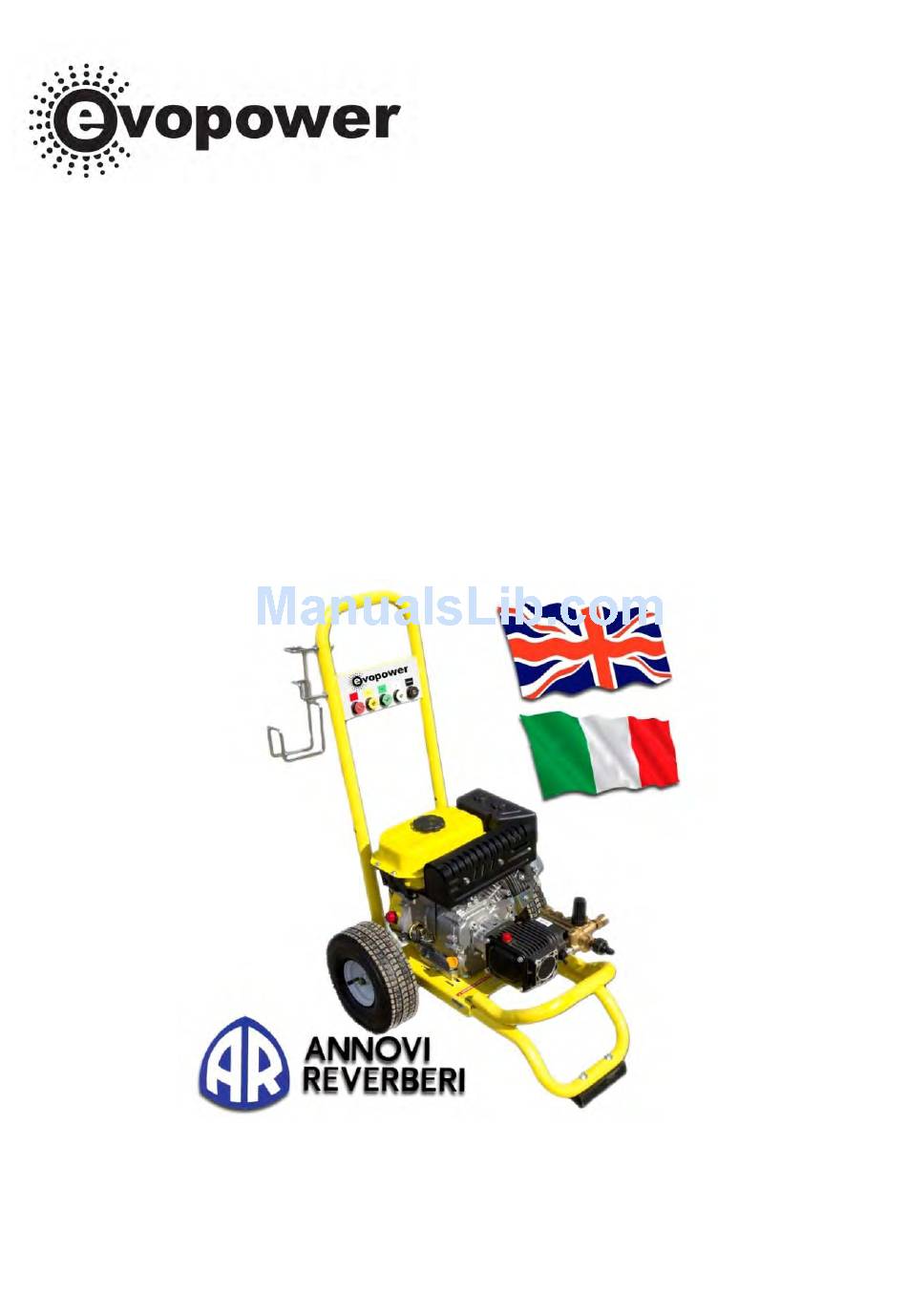

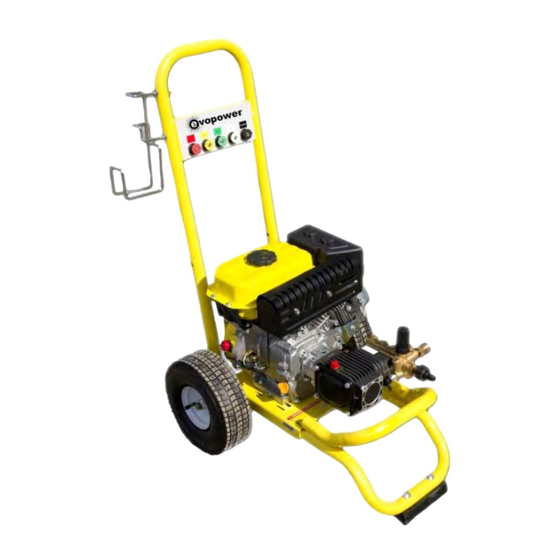

INSTRUCTIONS FOR
7.0HP & 14.0HP Petrol
Pressure Washers
Model #s: EPW3100-2, EPW185-70AR & EPW275-14AR
PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE
OF THIS PRODUCT.
*EPW185-70AR / EPW275-14AR

GENERAL INFORMATION

This manual has been compiled by Genpower Ltd and should be read carefully before operation of your Evopower pressure washer in order to ensure its safe
and correct use. This manual should also be kept safe for future reference. This manual contains information including general safety instructions, how
to assemble the machine and its operation and usage. Whilst every effort has been made to ensure all information supplied in this manual is accurate,
modifications may be made without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPW3100-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Evopower EPW3100-2

Summary of Contents for Evopower EPW3100-2

  • Page 1: General Information

    GENERAL INFORMATION This manual has been compiled by Genpower Ltd and should be read carefully before operation of your Evopower pressure washer in order to ensure its safe and correct use. This manual should also be kept safe for future reference. This manual contains information including general safety instructions, how to assemble the machine and its operation and usage.

  • Page 2: Table Of Contents

    Contact.........................26 GUARANTEE All Evopower products are carefully checked and tested before being dispatched to the customer to ensure any problems that may occur are kept to an absolute minimum. The Evopower pressure washers come with a one year return-to-base guarantee and a two year return-to- base guarantee on the engine.

  • Page 3: Specification

    SPECIFICATION - EPW3100-2 Part No....................EPW3100-2 Engine..................7.0HP OHV 4-Stroke Starting Method............Recoil Start with CDI Ignition Capacity......................212cc Machine is marked with a 210cc label the cc has just been rounded down. Max Pressure.................210bar, 3045psi Rated Pressure................185bar, 2685psi Litres/Hour......................410 Noise.....................70db@7m Wheels............Heavy duty single piece wide wheels Pump..................BE RX710 Axial Pump...

  • Page 4: Specification

    SPECIFICATION - EPW185-70AR Part No....................EPW185-70AR Engine..................7.0HP OHV 4-Stroke Starting Method............Recoil Start with CDI Ignition Capacity......................212cc Max Pressure................185bar, 2685psi Rated Pressure................175bar, 2540psi Litres/Hour....................600l/hr Noise.....................70db@7m Wheels............Heavy duty single piece wide wheels Pump........Annovi Reverberi Italian Commercial Triplex Pump Dimensions............H940mm x W535mm x L770mm Ceramic Pistons....................Yes Brass Pump Head....................Yes Thermal Relief Valve..................Yes...
  • Page 5 SPECIFICATION - EPW275-14AR Part No....................EPW275-14AR Engine...............14.0HP Loncin OHV 4-Stroke Starting Method............Recoil Start with CDI Ignition Capacity......................420cc Max Pressure................275bar, 3988psi Rated Pressure................265bar, 3840psi Litres/Hour....................900l/hr Noise.....................70db@7m Wheels............Heavy duty single piece wide wheels Pump........Annovi Reverberi Italian Commercial Triplex Pump Dimensions............H1040mm x W595mm x L820mm Ceramic Pistons....................Yes Brass Pump Head....................Yes Thermal Relief Valve..................Yes...

  • Page 6: General Safety Instructions

    General Safety Instructions Please ensure that user instructions have been read carefully Before using the pressure washer ensure that the high before using the machine to ensure its safe and correct usage. pressure hose has been unwound completely. Before unwinding the hose, ensure the machine is switched off The pressure washer has been designed for outdoor use only.

  • Page 7: Getting To Know Your Pressure Washer

    Getting to know your Petrol Pressure Washer 1: Engine 11: Lance 2: Pump 12: Quick Release Nozzles 3: Removable Handle 13: High Pressure Hose 4: Lower Frame 14: Pump Outlet High Pressure Fitting 5: Wheels 15: Pump Inlet Quick Release Fitting 6: Engine Recoil Start 16: Thermal Relief Valve 7: Fuel Tank...

  • Page 8: Assembly

    ASSEMBLY Fig 1. NOTE: There may be a little bit of water inside the pump assembly due to testing at the factory. -LOCATING THE UPPER FRAME (Figs 1-3) Slide the upper frame over the corresponding uprights of the lower frame (Fig 1) and secure with the bolts provided. Secure the hose and lance holders onto the upper frame by Fig 2.
  • Page 9 For the high pressure pump (Not on the EPW3100-2), fill through the pump oil filler plug (Fig 8A.) to halfway up the pump body using the oil level gauge (Fig 8B.) as a reference.
  • Page 10 Fig 9. - HIGH PRESSURE CONNECTION (Figs 9-14) Connect the high pressure hose to the high pressure outlet. (Fig 9.) Assemble the trigger gun and lance. Next, connect the high pressure hose to the trigger gun. (Fig 10.) - INSERTING A NOZZLE: Fig 10.
  • Page 11 Before starting your pressure washer, pull the trigger (Fig Fig 13. 13.) to get rid of any trapped air and wait for a steady flow of water to emerge from the nozzle. This primes the pump and ensures there is no air left in the system. NOTE: We recommend that when pull starting the machine, the trigger is squeezed to prevent the build up of pressure.

  • Page 12: Operation And Use

    Do not operate the appliance for more than 2 minutes whilst the spray gun is in the closed position as this will over heat the pump. (N.B. All Evopower pressure washers are fitted with thermal relief valves to prevent any instance of overheating, however it is good practice to switch the engine off when not pressure washing.)
  • Page 13 - STARTING THE ENGINE (FIG 15-20) Fig 15. Move the fuel lever to the right- the ON position. After doing this, move the choke lever to the left in order to close the choke for initial start-up. YOU MAY NOT NEED TO USE THE CHOKE IF THE ENGINE OR AIR IS WARM.
  • Page 14 Let the engine idle for a few seconds before turning the choke Fig 19. lever to the right. The speed of the machine can be adjusted when in operation by moving the throttle to the high position. Do not force the stop bracket on the throttle as it can damage the engine.
  • Page 15 - ADJUSTING THE SPRAY PATTERN (FIG 23) Fig 23. Your Evopower Pressure Washer comes complete with five colour-coded nozzles and a turbo nozzle, each giving a different spray pattern. Each nozzle does as follows. RED: 0⁰ NOZZLE This nozzle gives an extremely powerful pinpoint stream. It covers only a small area and due to its power should only be used on materials such as metal or concrete.
  • Page 16 - USING THE DETERGENT FACILITY We strongly recommend using a high quality pressure washer detergent OR a traffic film remover (TFR) with this machine. NOTE: Please note that thick detergents may not flow freely from the tank and so may cause a blockage in the flow system.
  • Page 17 SAFETY INSTRUCTIONS FOR THE ENGINE To reduce the chances of injury or Make sure that you do not overfill damage to the machine, ensure that the fuel tank. If a spillage occurs, you read the engine instruction clean up immediately in a safe and manual carefully before use.
  • Page 18 PRE-OPERATION INSPECTION Fig 25. CAUTION: In relation to the engines performance, engine oil is a key factor. Only use high quality, clean oil with no additives. Do not use 2-stroke gasoline engine oil. Using unsuitable oil will shorten the engines service life. RECOMMENDED OIL: SAE15W40 (for pump and engine) Make sure the engine is on level ground.
  • Page 19 FUEL AND FUEL TANK: FUEL Ensure that only fresh, clean unleaded petrol is used. This will decrease the chance of producing a carbon deposit and will prolong the engines service life. Also, ensure that old or polluted fuel is never used as this may cause damage to the engine, and make it difficult to start. CAUTION: Fuel must be handled carefully as it can cause extensive damage to plastic or painted surfaces.
  • Page 20 AIR FILTER (FIG 27.) Fig 27. The air filter should be removed, examined and cleaned every 100 hours of running time or every month, whichever comes sooner. The air filter should be cleaned with an environmentally friendly water based degreasing agent. The air filter should then be left the dry before replacing it back into the machine and adding a few drops of engine oil, squeezed into the foam filter.

  • Page 21: Maintenance

    MAINTENANCE MAINTENANCE Ensure that your recommended maintenance schedule is adhered to. The schedule is based on 'normal use' in 'normal conditions' and so must be altered to fit your personal needs by taking factors such as using under heavy load and using in wet and dusty conditions into consideration.

  • Page 22: Maintenance

    MAINTENANCE SCHEDULE The user should take the below table into consideration to ensure the engine is kept in perfect working condition. Frequency Item Every Time First Month or 20 Every season or 50 Every 6 months or Every year or 300 hours hours 100 hours...
  • Page 23 SPARK PLUG MAINTENANCE Fig 28. The spark plug will need to be cleaned thoroughly with a soft wire brush every 50 running hours. The insulator on the spark plug needs to be checked for damage and if any needs to be replaced immediately.

  • Page 24: Troubleshooting

    PREPARE THE ENGINE FOR LONG TERM STORAGE First remove the spark plug. Pour a spoonful of clean engine oil into the cylinder and rotate the engine to distribute the engine oil as evenly as possible. Replace the spark plug. Next, you will need to pull the starting rope until a slight resistance is felt.

  • Page 25: Declaration Of Conformity

    Check grade of fuel Overloading Check the working conditions Overloading Declaration of Conformity Genpower Ltd confirms that this Evopower petrol pressure washer conforms to the following CE directives: • 2006/42/EC Machinery directive • 2004/108/EC EMC directive • 73/23/EC The low voltage directive •...

  • Page 26: Contact

    Contact Genpower Ltd: Isaac Way, London Road, Pembroke Dock, SA72 4RW Telephone: 01646 687880 Fax: Email: service@genpower.co.uk...
